High Performance RE11569 Deere Hydraulic Cylinder Oil Seal Kit Boom Replacement Kits
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
High Performance RE11569 Deere Hydraulic Cylinder Oil Seal Kit Boom Replacement Kits
| Product Name | John Deere Cylinder Oil Seal Kit Boom Replacement Kits |
| Models | John Deere 890, 990 |
| Part Number | RE11569 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
Recommend products:
Hydraulic Breaker Seal Kit
Regulator Valve Seal Kit
Excavator Hydraulic Parts
Loader Seal Kits
Floating Seal
Blade Lift/Tilt/Steering Cylinder Kit
Control Valve Seal Kit
Swing Motor Seal Kit
Crankshaft Rear Seal
Crankshaft Front Seal
(Main) Control Valve Seal Kit
Track Adjuster Seal Kit
Center Joint Seal Kit
Boom/Arm/Bucket Cylinder Seal Kit
Blade Cylinder Seal Kit
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | T46634 | [1] | Bushing |
| 2 | AR92237 | [1] | Rod |
| 3 | JD7781 | [1] | LubriC.A.Tion Fitting |
| 4 | T46639 | [1] | Seal |
| 5 | 19H3556 | [4] | Cap Screw |
| 6 | T30636 | [4] | Washer |
| 7 | T59930 | [1] | Guide |
| 8 | R78807 | [1] | Back-Up Ring |
| 9 | T46620 | [1] | O-Ring |
| 10 | T46640 | [1] | Wear Ring |
| 11 | T48355 | [1] | Seal |
| 12 | T46645 | [1] | Spring |
| 13 | T46644 | [1] | Poppet |
| 14 | T46646 | [1] | Wear Ring |
| 15 | R78809 | [2] | Back-Up Ring |
| 16 | A5598R | [1] | O-Ring |
| 17 | R77642 | [2] | Ring |
| 18 | ........ | [2] | Back-Up Ring |
| 19 | ........ | [1] | Seal |
| 20 | ........ | [1] | Seal |
| 21 | RE11563 | [1] | Seal |
| 22 | R77650 | [1] | Piston |
| 23 | T57337 | [1] | Spring |
| 24 | T57336 | [1] | Strap |
| 25 | AT45320 | [1] | Poppet |
| 26 | RE13866 | [1] | Hydraulic Cylinder Barrel |
| 27 | RE11569 | [1] | Hydraulic Cylinder |
| 28 | T46635 | [1] | Seal |
The role of the seal:
- Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
- Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
- Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
- Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
- Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
- (Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

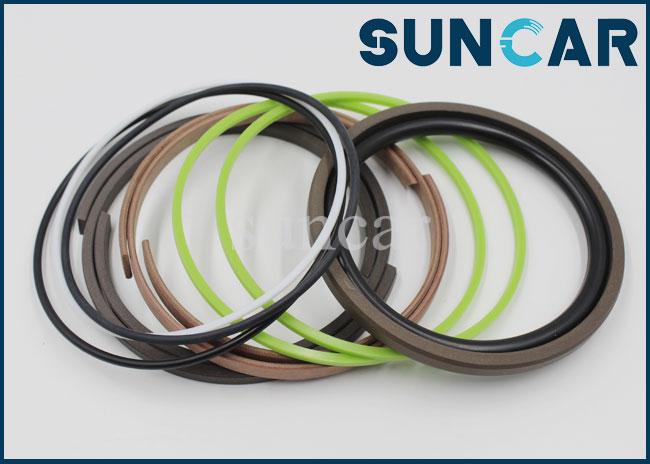

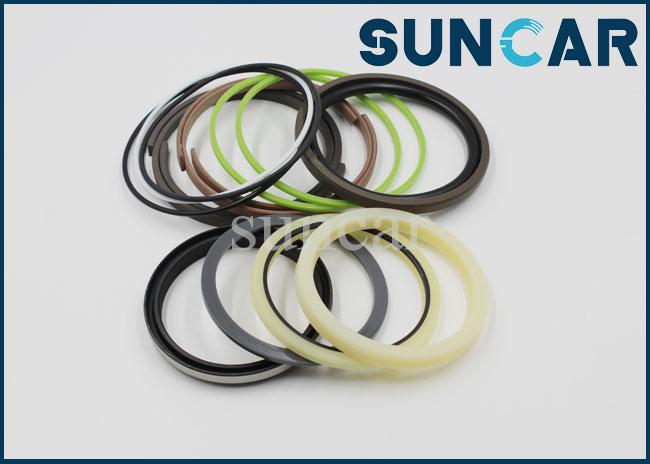

Product Show:
