LZ00448 Hydraulic Cylinder Seal Kit CASE model CX130 Excavator Boom cylinder Sealing Kit
LZ00448 Hydraulic Cylinder Seal Kit CASE Model CX130 Excavator Boom Cylinder Sealing Kit
| Product Name | LZ00448 Hydraulic Cylinder Seal Kit CASE Model CX130 Excavator Boom Cylinder Sealing Kit |
| OEM Number | LZ00448 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
| Hardness | 70-90 Shore A |
| Brand | SUNCAR/OEM |
| MOQ | Negotiation |
| Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
| Weight | 0.35kg |
| Delivery Time | 5-7 days after payment received(public holiday excluded) |
| Availability | In Stock |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
| AppliC.A.Tion | CASE excavator |
| Condition | 100% Brand New |
| After-sales Service | Online support |
| Related parts | Boom Cylinder Seal Kit, Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
| Supply Ability | 1000 Piece/Pieces per Month |
SHIPPING POLICY:
Generally shipping can be made within 1 business day after the order is received.
RETURN POLICY:
We offer 14 days return policy after the buyer received the item. Item being returned must be in brand new condition, unused with the original parts and label included. The shipping expenses or any other related fees will be paid by the buyer. We do not accept returns if the item has been installed or has been damaged for some reasons.
LIABILITY:
The parts we provide are not original, it’s aftermarket replacement parts, we are only responsible for the parts we sold, we can accept return, refund or replacement if any problems on the parts, we do not compensate your labor, towing, repair, rental expenses or any other related expenses, please understand.
Parts On Group Boom Cylinder:
| Pos. | Part No | Qty | Parts name |
| KNV1615 | [1] | HYDRAULIC CYLINDER | |
| LR00672 | [1] | HYD CYL SLEEVE | |
| 1 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | LKU0044 | [1] | BUSHING |
| LB00636 | [1] | PISTON ROD | |
| 6 | 155413A1 | [1] | BUSHING |
| 8 | LU00099 | [1] | CYLINDER END CAP |
| 9 | 155433A1 | [1] | BUSHING |
| 10 | 155699A1 | [1] | RING, SNAP |
| 11 | LE00857 | [1] | RING |
| 12 | 155130A1 | [1] | RING |
| 13 | 155231A1 | [1] | BACK-UP RING |
| 14 | LE00420 | [1] | SEAL |
| 15 | 154721A1 | [1] | O-RING,99.4mm ID x 3.1mm Width |
| 16 | 161880A1 | [1] | BACK-UP RING |
| 17 | 862-14065 | [12] | HEX SOC SCREW,M14 x 65mm, Cl 12.9 |
| 18 | LMU0339 | [1] | RING |
| 19 | LE00724 | [1] | SEAL |
| 20 | 161911A1 | [1] | PISTON |
| 21 | 155330A1 | [1] | SEALING RING |
| 24 | 161881A1 | [2] | BACK-UP RING |
| 25 | LE00725 | [2] | RING |
| 26 | 161883A1 | [2] | BACK-UP RING |
| 27 | LH00036 | [1] | COMPRESSION SPRING |
| 28 | LA00773 | [1] | SPECIAL NUT |
| 29 | 156223A1 | [1] | SET SCREW |
| 30 | 155977A1 | [1] | BALL |
| 31 | 164446A1 | [4] | WIPER SEAL |
| 32 | LR00517 | [1] | HYD TUBE |
| 34 | 154487A1 | [1] | O-RING |
| . . | LR00518 | [1] | HYD TUBE |
| 40 | 154487A1 | [1] | O-RING |
| 46 | 154499A1 | [2] | O-RING |
| 47 | 164502A1 | [8] | BOLT |
| 48 | LD00035 | [1] | CLAMP BRACKET |
| 53 | LD00036 | [1] | CLAMP BRACKET |
| 56 | 158131A1 | [2] | BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9 |
| 57 | 156227A1 | [2] | WASHER |
| 58 | 160871A1 | [2] | HALF-FLANGE |
| 60 | LA00683 | [1] | BOLT,Hex |
| 61 | 892-10012 | [1] | LOCK WASHER,M12 |
| 62 | 153630A1 | [1] | LUBE NIPPLE |
| 63 | 153631A1 | [1] | LUBE NIPPLE,1/8"-27 NPT |
| LZ00448 | [1] | SEAL KIT | |
| LZ00446 | [1] | SEAL KIT |

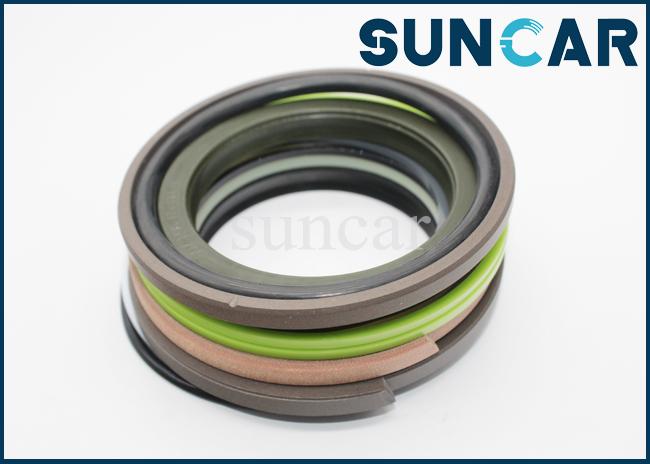

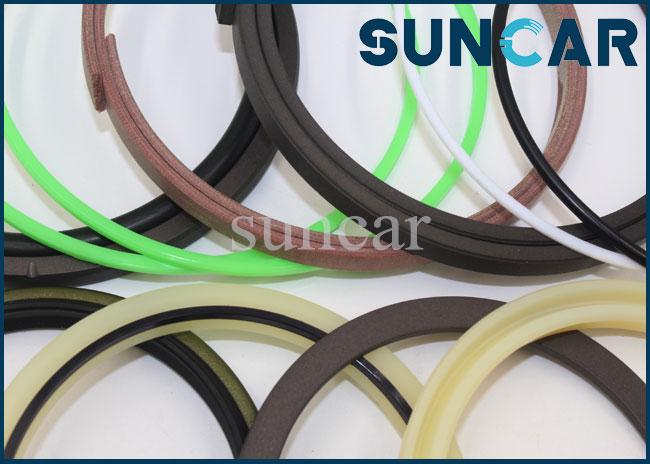

Product Show:
