LZ00443 CASE Excavator Hydraulic sealing Repair Parts arm Cylinder Seal Kit fits CX210LR CX240
Price:
Negotiation
MOQ:
Acceptiable trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

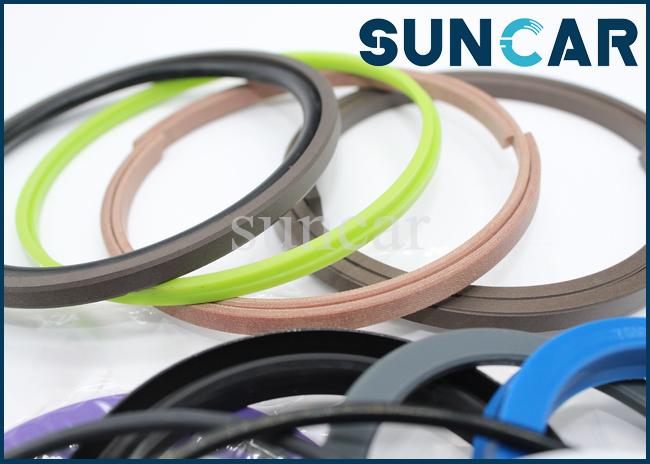

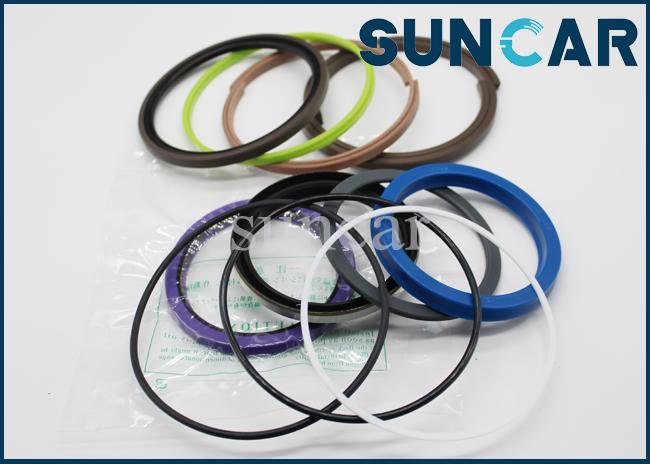

LZ00443 CASE Excavator Hydraulic Sealing Repair Parts Arm Cylinder Seal Kit Fits CX210LR CX240
| Product name | LZ00443 CASE Excavator Hydraulic Sealing Repair Parts Arm Cylinder Seal Kit Fits CX210LR CX240 |
| Model Number | CASE CX210LR CX240 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Feature | Durability, high durability, tensile strength |
| Packing | PP bag inside, carton box outside(as your request) |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| MOQ | Acceptiable trial order |
| Shipping Mode | By air, by sea, by express (Fedex, UPS, DHL, TNT) |
| Part No. | LZ00443 |
| Place of Origin | Guangdong, China |
| Size | Standard size |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Type | Hydraulic Cylinder Seal Kit |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion | CASE excavator system |
| Market | Middle East, Europe, North America, South America, Asia, etc |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union or ESCROW through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
Hydraulic Cylinder Replacement Parts:
| Pos. | Part No | Qty | Parts name |
| KBV1789 | [1] | HYDRAULIC CYLINDER | |
| LR00655 | [1] | HYD TUBE | |
| 3 | 160048A1 | [1] | BUSHING |
| LB00626 | [1] | PISTON ROD | |
| 6 | 160048A1 | [1] | BUSHING |
| 8 | LU00113 | [1] | GLAND |
| 9 | 160049A1 | [1] | BUSHING |
| 10 | 155711A1 | [1] | RING, SNAP |
| 11 | LE00762 | [1] | RING |
| 12 | LAU0025 | [1] | RING |
| 13 | LE00738 | [1] | BACK-UP RING |
| 14 | 159960A1 | [1] | BACK-UP RING |
| 15 | 154797A1 | [1] | O-RING |
| 16 | LE00739 | [1] | BACK-UP RING |
| 17 | 863-20080 | [10] | HEX SOC SCREW,M20 x 80mm, Cl 12.9 |
| 18 | LE00740 | [1] | BACK-UP RING |
| 19 | LE00741 | [1] | BACK-UP RING |
| 20 | LJ00681 | [1] | PISTON |
| 21 | LE00742 | [1] | BACK-UP RING |
| 24 | LE00743 | [2] | BACK-UP RING |
| 25 | LE00744 | [2] | SCRAPER RING |
| 26 | LE00745 | [2] | SCRAPER RING |
| 27 | 155733A1 | [1] | SHIM |
| 28 | LA00738 | [1] | NUT |
| 29 | 156228A1 | [1] | SET SCREW |
| 30 | 155981A1 | [1] | BALL |
| 31 | 162709A1 | [1] | BEARING |
| 32 | LE00746 | [1] | SEAL |
| 33 | 160128A1 | [2] | STOP |
| 34 | 160129A1 | [1] | RING, SNAP |
| 35 | 162962A1 | [4] | WIPER SEAL |
| 36 | 155530A1 | [1] | TUBE |
| 38 | LK00287 | [1] | HYD TUBE |
| 40 | 154503A1 | [1] | O-RING |
| 41 | LK00483 | [1] | TUBE |
| 42 | 863-12035 | [4] | HEX SOC SCREW,M12 x 35mm, Cl 12.9 |
| 45 | 154543A1 | [2] | O-RING |
| 46 | 863-12055 | [4] | HEX SOC SCREW,M12 x 55mm, Cl 12.9 |
| 47 | LD00039 | [1] | CLAMP BRACKET |
| 52 | 160340A1 | [1] | MOUNTING CLIP |
| 53 | 158131A1 | [2] | BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9 |
| 54 | 156227A1 | [2] | WASHER |
| 55 | 155717A1 | [1] | COLLAR |
| 57 | 628-12055 | [1] | BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9, Full Thd |
| 58 | 892-10012 | [1] | LOCK WASHER,M12 |
| 59 | 153631A1 | [1] | LUBE NIPPLE,1/8"-27 NPT |
| LZ00443 | [1] | SEAL KIT |
