60D 60G Deere Hydraulic Seal Kit FYD00000085 Boom Cylinder Replacement Sealing Kit
60D 60G Deere Hydraulic Seal Kit FYD00000085 Boom Cylinder Replacement Sealing Kit
| Product Name | John Deere Hydraulic Boom Cylinder Seal Kit |
| Models | John Deere 60D, 60G |
| Part Number | FYD00000085 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 60 MM |
| Bore | 110 MM |
| Cylinder Number | FYD00001247G |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | FXB00004719 | [1] | Tube |
| 2 | FXB00004720 | [1] | Rod |
| 3 | FYD00000019G | [1] | Cylinder Head |
| 4 | FYD00001121 | [1] | Seal |
| 5 | FYD00000020 | [1] | Ring |
| 6 | FYD00001122 | [1] | Seal |
| 7 | FYD00001123 | [1] | Back-Up Ring |
| 8 | FYD00001124 | [1] | Ring |
| 9 | FYD00000021 | [1] | Bushing |
| 10 | TH100156 | [1] | O-Ring |
| 11 | FYD00001125 | [2] | Back-Up Ring |
| 12 | AT264223 | [1] | O-Ring |
| 13 | FYD00001126 | [1] | Back-Up Ring |
| 14 | A811110 | [1] | O-Ring |
| 15 | FYD00000022 | [1] | Piston |
| 16 | FYD00001127 | [1] | Sealing Ring |
| 17 | FYD00001128 | [1] | Seal |
| 18 | FYD00001129 | [1] | Wear Ring |
| 19 | 4069900 | [1] | O-Ring |
| 20 | FYD00001130 | [2] | Back-Up Ring |
| 21 | FYD00000023 | [1] | Ball |
| 22 | FYD00000024 | [1] | Set Screw |
| 23 | FYD00000025 | [1] | Ring |
| 24 | FXB00004726 | [1] | Pipe |
| 25 | FXB00004727 | [1] | Pipe |
| 26 | FYD00001131 | [1] | O-Ring |
| 27 | FYD00000028 | [4] | Bolt |
| 29 | 19M8324 | [2] | Cap Screw |
| 30 | 4445478 | [1] | Bushing |
| 31 | FYD00001132 | [4] | Seal |
| 32 | T116334 | [1] | LubriC.A.Tion Fitting |
| 33 | J75481 | [1] | Fitting |
| 34 | 4445478 | [1] | Bushing |
| 40 | FYD00000085 | [1] | Seal Kit |
| 50 | FYD00001247 | [1] | Hydraulic Cylinder |
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Seal ClassifiC.A.Tion:
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.

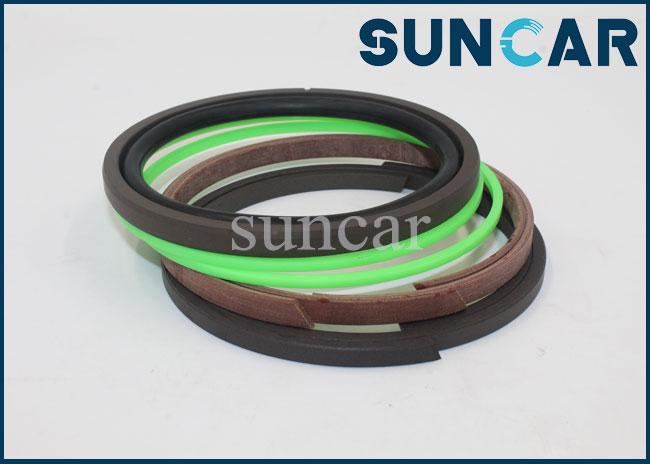

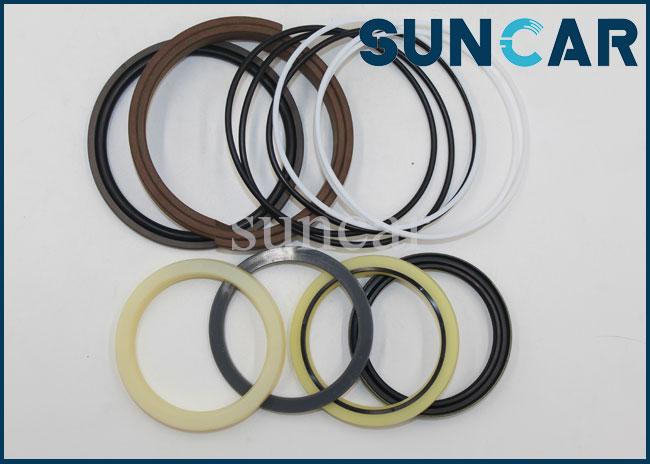

Product Image:
