60G Deere Sealing Kit FYD00003234 Boom Swing Hydraulic Cylinder Service Kit
60G Deere Sealing Kit FYD00003234 Boom Swing Hydraulic Cylinder Service Kit
| Product Name | John Deere Cylinder Service Kit |
| Models | John Deere 60D, 60G |
| Part Number | FYD00003234 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 55 MM |
| Bore | 95 MM |
| Cylinder Number | FYD00001296 |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Boom (Swing) |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Other Related Part Number:
| FYA00006590 | FYA00001401 | FYA00012907 | FYD00006229 |
| FYA00012906 | FYA00012905 | FYA00012899 | FYD00006230 |
| FYA00006591 | FYA00012900 | FYA00001400 | FYD00000078 |
| FYA00012901 | FYA00023524 | FYA00001396 | FYD00003878 |
| FYA00006592 | FYA00001392 | FYD00000074 | FYD00005420 |
| FYA00006593 | FYA00010734 | FYD00000073 | FYD00005421 |
| FYA00006594 | FYA00010733 | FYD00000072 | FYD00003882 |
| FYA00006595 | FYA00008675 | FYD00000075 | FYD00003886 |
| FYA00001398 | FYA00010735 | FYD00000085 | FYD00003887 |
| FXB00002044 | FXB00001834 | FXB00001856 | FYD00000071 |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 0 | FYD00001296 | [1] | Hydraulic Cylinder |
| 1 | FXB00004739 | [1] | Tube |
| 2 | FXB00004740 | [1] | Rod |
| 3 | FXB00004741 | [1] | Cylinder Head |
| 4 | FYD00001133 | [1] | Seal |
| 5 | FYD00000039 | [1] | Ring |
| 6 | FYD00001134 | [1] | Seal |
| 7 | FYD00001135 | [1] | Back-Up Ring |
| 8 | FYD00001136 | [1] | O-Ring |
| 9 | FYD00000040 | [1] | Bushing |
| 10 | A811090 | [1] | O-Ring |
| 11 | FXB00004742 | [1] | Ring |
| 12 | A811095 | [1] | O-Ring |
| 13 | FXB00004744 | [1] | Piston |
| 14 | FXB00004745 | [1] | Seal |
| 15 | FXB00004746 | [1] | Ring |
| 16 | FXB00004747 | [1] | Ring |
| 17 | AT264324 | [1] | O-Ring |
| 18 | FXB00004749 | [2] | Ring |
| 19 | FYD00000023 | [1] | Ball |
| 20 | FXB00004750 | [1] | Screw |
| 21 | FXB00004751 | [1] | Bushing |
| 22 | FXB00004752 | [2] | Seal |
| 23 | J75481 | [1] | Fitting |
| 24 | 4334427 | [1] | Bushing |
| 25 | FYD00001142 | [1] | Seal |
| 30 | FYD00003234 | [1] | Seal Kit |

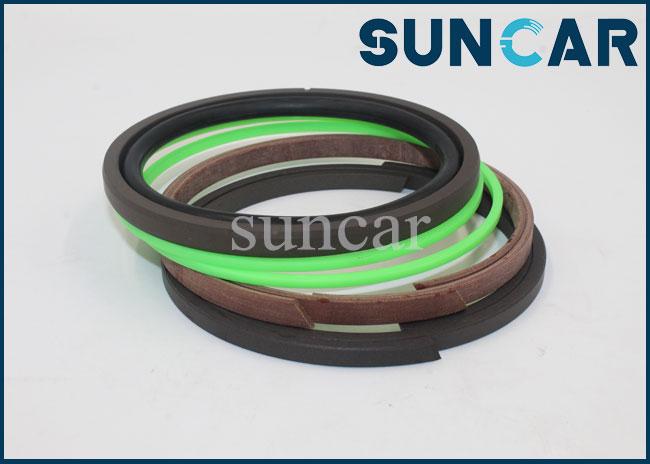

Product Image:
