Hydraulic Sealing Kit VOE11709872 Cylinder Seal Repair Kit Fits L60E L60F L60G SUNCARVO.L.VO
Hydraulic Sealing Kit VOE11709872 Cylinder Seal Repair Kit Fits L60E L60F L60G SUNCARSUNCARSUNCARVO.L.VO
| Product Name | SUNCARSUNCARSUNCARVO.L.VO Cylinder Seal Repair Kit |
| Models | SUNCARSUNCARSUNCARVO.L.VO L60E, L60F, L60G, L60H, L70E, L70F, L70G, L70H |
| Part Number | VOE11709872 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Feature | High Sealing performance/ wear resistance |
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.

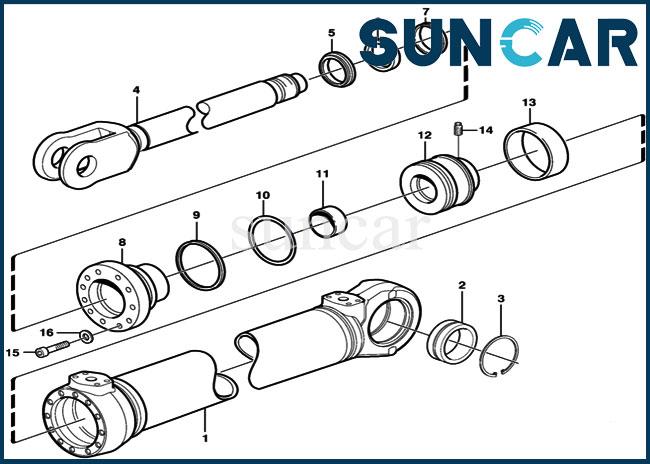

Related Parts:
| Pos. | Part No | Qty | Parts name |
| VOE11107530 | [1] | Hydraulic cylinder | |
| 1 | [1] | Cylinder tube | |
| 2 | VOE184062 | [1] | Spherical plain bearing |
| 3 | VOE914538 | [2] | Retaining ring |
| 4 | VOE11107389 | [1] | Piston rod |
| 5 | VOE11005052 | [1] | Scraper ring |
| 6 | VOE11005091 | [1] | Piston rod seal |
| 7 | VOE11107424 | [1] | Piston rod seal |
| 8 | VOE11107395 | [1] | Piston rod guide |
| 9 | VOE4881099 | [1] | Back-up ring |
| 10 | VOE967343 | [1] | O-ring |
| 11 | VOE11107549 | [1] | Bushing |
| 12 | VOE4784892 | [1] | Piston |
| 13 | VOE4833022 | [1] | Seal |
| 14 | VOE4782717 | [1] | Spring pin |
| 15 | VOE948400 | [6] | Hex. socket screw |
| 16 | VOE13941907 | [6] | Washer |
| VOE11709872 | [1] | Sealing kit |
Product Advantage:
- Extreme wear resistance.
- Easier installation.
- Insensitive to pressure peaks.
- High extrusion resistance.
- Excellent durability and flexibility in using.
- Specially designed cords enhance durability and length stability.
- Excellent in resistance against heat,oil and wear.
- Low friction, free of stick slip.
- High abrasion resistance.
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
