LZ00451 Boom Cylinder Seal Kit CX160 case Hydraulic Seal Repair Kit
LZ00451 Boom Cylinder Seal Kit CX160 case Hydraulic Seal Repair Kit
| Product Name | Boom Cylinder Seal Kit |
| Model | CASE CX160 |
| Part Number | LZ00451 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| Rod | 80 MM |
| Bore | 115 MM |
| Cylinder | KLV0352 |
| AppliC.A.Tion | Boom |
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.
Related Parts:
| Pos. | Part No | QTY | Parts name |
| . . | KLV0307 | [1] | HYDRAULIC CYLINDER |
| . . | LR00686 | [1] | HYD CYL SLEEVE |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | LB00653 | [1] | BUSHING |
| . . | LB00654 | [1] | PISTON ROD |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | 155411A1 | [1] | BUSHING |
| 8 | LU00102 | [1] | CYLINDER END CAP |
| 9 | 155430A1 | [1] | BUSHING |
| 10 | 155696A1 | [1] | RING, SNAP |
| 11 | LE00766 | [1] | SEAL |
| 12 | 155132A1 | [1] | RING |
| 13 | 155241A1 | [1] | BACK-UP RING |
| 14 | 158033A1 | [1] | WIPER SEAL |
| 15 | 154741A1 | [1] | O-RING |
| 16 | 160812A1 | [1] | BACK-UP RING |
| 17 | 161059A1 | [10] | BOLT |
| 18 | 155160A1 | [1] | RING |
| 19 | LE00726 | [1] | RING |
| 20 | 160943A1 | [1] | PISTON |
| 21 | 160824A1 | [1] | SEALING RING |
| 22 | 160813A1 | [2] | BACK-UP RING |
| 23 | LE00703 | [2] | RING |
| 24 | 160827A1 | [2] | RING |
| 25 | 155723A1 | [1] | WASHER |
| 26 | LA00774 | [1] | SPECIAL NUT |
| 27 | 156223A1 | [1] | SET SCREW |
| 28 | 155977A1 | [1] | BALL |
| 29 | 164446A1 | [2] | WIPER SEAL |
| 30 | 160483A1 | [2] | BACK-UP RING |
| 31 | 153630A1 | [1] | LUBE NIPPLE |
| 32 | LR00690 | [1] | HYD TUBE |
| 33 | 154503A1 | [1] | O-RING |
| 34 | LR00691 | [1] | HYD TUBE |
| 35 | 154503A1 | [1] | O-RING |
| 36 | 154528A1 | [2] | O-RING |
| 37 | 861-10050 | [8] | HEX SOC SCREW |
| 38 | LD00065 | [1] | CLAMP BRACKET |
| 39 | 160999A1 | [1] | MOUNTING CLIP |
| 40 | 158131A1 | [2] | BOLT |
| 41 | 156227A1 | [2] | WASHER |
| 42 | 155701A1 | [2] | COLLAR |
| 43 | 153910A1 | [1] | BOLT |
| 44 | 892-11014 | [1] | LOCK WASHER |
| . . | LZ00451 | [1] | SEAL KIT |

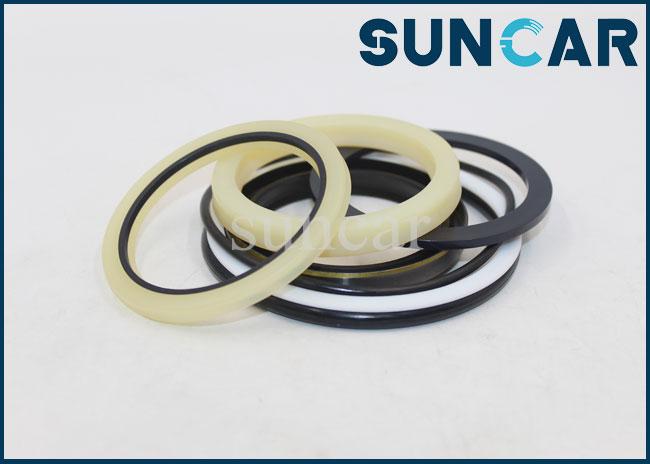

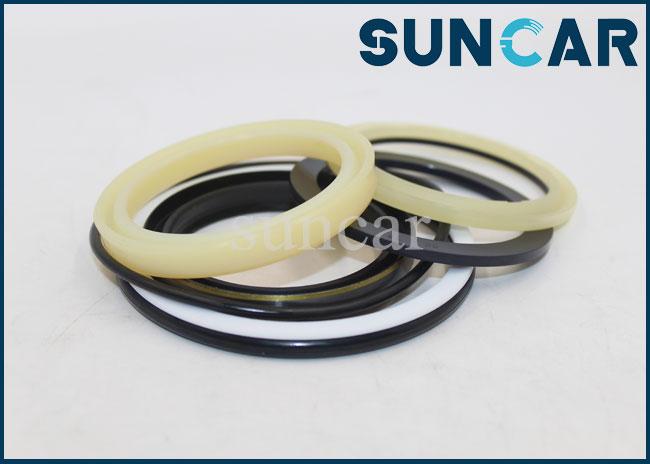

Product Image:
