LZ00446 Arm Seal Repair Kit Hydraulic Cylinder Oil Sealing Kit For Excavator CASE CX225SR CX210
LZ00446 Arm Seal Repair Kit Hydraulic Cylinder Oil Sealing Kit For Excavator CASE CX225SR CX210
| Product Name | Arm Seal Repair Kit |
| Model | CASE CX210N, CX225SR, CX210 |
| Part Number | LZ00446 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| Rod | 95 MM |
| Bore | 135 MM |
| Cylinder | KRV3236 |
| AppliC.A.Tion | Arm |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
Parts On Group (CX210) - CASE STANDARD CRAWLER EXCAVATOR:
| Pos. | Part No | QTY | Parts name |
| . . | KRV3236 | [1] | HYDRAULIC CYLINDER |
| . . | LR00532 | [1] | TUBE ASSY. |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | 155409A1 | [1] | BUSHING |
| . . | LB00585 | [1] | PISTON ROD |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | 155409A1 | [1] | BUSHING |
| 8 | LU00108 | [1] | CYLINDER END CAP |
| 9 | 155418A1 | [1] | BUSHING |
| 10 | 155706A1 | [1] | RING, SNAP |
| 11 | LE00765 | [1] | SCRAPER RING |
| 12 | LE00198 | [1] | O-RING |
| 13 | LE00695 | [1] | BACK-UP RING |
| 14 | 158377A1 | [1] | WIPER SEAL |
| 15 | 154777A1 | [1] | O-RING |
| 16 | 159994A1 | [1] | BACK-UP RING |
| 17 | 166094A1 | [12] | BOLT |
| 18 | LE00696 | [1] | RING |
| 19 | LE00697 | [1] | SEAL |
| 20 | 160571A1 | [1] | PISTON |
| 21 | 159961A1 | [1] | SEALING RING |
| 24 | 159995A1 | [2] | BACK-UP RING |
| 25 | LE00698 | [2] | RING |
| 26 | 160016A1 | [2] | RING |
| 27 | 155722A1 | [1] | SHIM |
| 28 | LA00736 | [1] | SPECIAL NUT |
| 29 | 156223A1 | [1] | SET SCREW |
| 30 | 155977A1 | [1] | BALL |
| 31 | 164190A1 | [1] | RING |
| 32 | LE00690 | [1] | SEAL |
| 33 | 160556A1 | [2] | STOP |
| 34 | 160557A1 | [1] | RING, SNAP |
| 35 | 160483A1 | [4] | BACK-UP RING |
| 36 | 155530A1 | [1] | TUBE |
| 38 | LK00270 | [1] | HYD TUBE |
| 39 | NSS | [1] | NOT SOLD SEPARAT |
| 40 | 154503A1 | [1] | O-RING |
| 45 | 160301A1 | [4] | BOLT |
| 46 | 154543A1 | [1] | O-RING |
| 47 | 861-10050 | [4] | HEX SOC SCREW |
| 47A. | 863-10030 | [4] | HEX SOC SCREW |
| 48 | 154528A1 | [1] | O-RING |
| 49 | LD00030 | [1] | CLAMP BRACKET |
| 54 | 156391A1 | [1] | MOUNTING CLIP |
| 55 | 158131A1 | [2] | BOLT |
| 56 | 156227A1 | [2] | WASHER |
| 57 | 155717A1 | [1] | COLLAR |
| 59 | 628-12055 | [1] | BOLT |
| 60 | 892-10012 | [1] | LOCK WASHER,M12 |
| 61 | 153912A1 | [1] | LUBE NIPPLE |
| 62 | LK00478 | [1] | HYD TUBE |
| . . | LZ00446 | [1] | SEAL KIT |
About Oil Seal Use Guides:
- Oil seals that are not used temporarily should be kept properly to prevent contamination with oil, dust or sun exposure.
- When the shaft diameter is worn into a "V"-shaped groove, so that the contact pressure between the new oil seal lip and the shaft cannot be reduced, the displacement method can be used to make up.
- When the lubriC.A.Ting oil volume of the reducer is less than or equal to 7 liters, the amount of lubricant added per liter is 20-30ml;
- When 7-15 liters, the amount added is 15-20ml per liter of lubriC.A.Ting oil;
- When>15 liters, add 10ml per liter of lubriC.A.Ting oil.

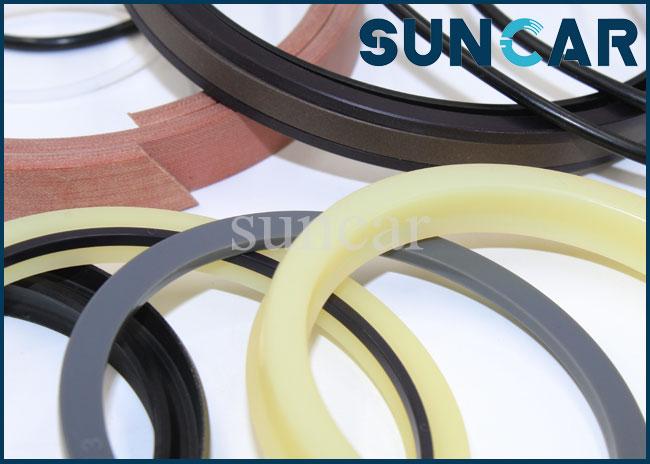

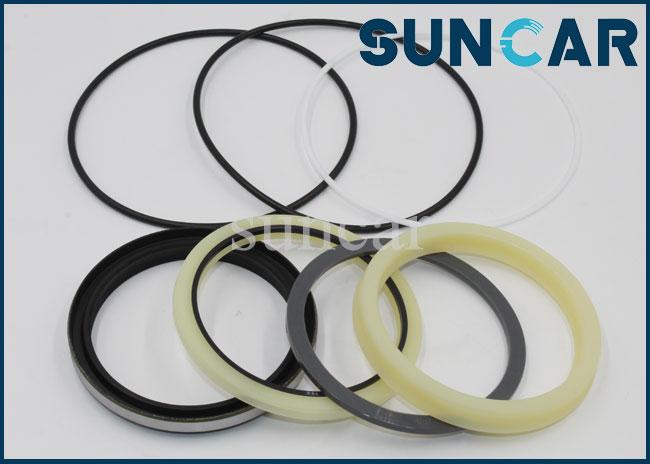

Product Image:
