LZ00646 Arm Cylinder Repair Kit CX240LR Case Hydraulic Service Kits
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
LZ00646 Arm Cylinder Repair Kit CX240LR Case Hydraulic Service Kits
| Product Name | Arm Cylinder Repair Kit |
| Model | CASE CX240LR |
| Part Number | LZ00646 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
About Oil Seal Use Guides:
- Oil seals that are not used temporarily should be kept properly to prevent contamination with oil, dust or sun exposure.
- When the shaft diameter is worn into a "V"-shaped groove, so that the contact pressure between the new oil seal lip and the shaft cannot be reduced, the displacement method can be used to make up.
- When the lubriC.A.Ting oil volume of the reducer is less than or equal to 7 liters, the amount of lubricant added per liter is 20-30ml;
- When 7-15 liters, the amount added is 15-20ml per liter of lubriC.A.Ting oil;
- When>15 liters, add 10ml per liter of lubriC.A.Ting oil.
Related Parts:
| Pos. | Part No | QTY | Parts name |
| . . | 162862A1 | [1] | HYDRAULIC CYLINDER |
| . . | LR00954 | [1] | HYD CYL SLEEVE |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | LB00785 | [1] | BUSHING |
| . . | LB00836 | [1] | PISTON ROD |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | LB00785 | [1] | BUSHING |
| . . | 160228A1 | [1] | GASKET KIT |
| 8 | NSS | [1] | NOT SOLD SEPARAT |
| 9 | 160049A1 | [1] | BUSHING |
| 10 | 155711A1 | [1] | RING, SNAP |
| 11 | 160124A1 | [1] | SEALING RING |
| 12 | 164788A1 | [1] | BACK-UP RING |
| 13 | 160017A1 | [1] | RING |
| 14 | 159996A1 | [1] | BACK-UP RING |
| 15 | LE01018 | [1] | RING |
| 16 | 155247A1 | [1] | BACK-UP RING |
| 17 | 159960A1 | [1] | BACK-UP RING |
| 18 | 154805A1 | [1] | O-RING |
| 19 | 159997A1 | [1] | BACK-UP RING |
| 20 | LUU0042 | [12] | BOLT,Hex Skt Hd |
| 21 | LE01019 | [1] | RING |
| 22 | 160126A1 | [1] | SEAL |
| 23 | 165267A1 | [1] | PISTON |
| 24 | LE00543 | [1] | SEALING RING |
| 25 | 160000A1 | [2] | BACK-UP RING |
| 26 | 160018A1 | [2] | RING |
| 27 | 155309A1 | [2] | RING |
| 28 | 155733A1 | [1] | SHIM |
| 29 | 156230A1 | [1] | NUT |
| 30 | 156228A1 | [1] | SET SCREW |
| 31 | 155981A1 | [1] | BALL |
| 32 | LE01020 | [1] | RING |
| 33 | 160127A1 | [1] | SEAL |
| 34 | 160128A1 | [2] | STOP |
| 35 | 160129A1 | [1] | RING, SNAP |
| 36 | LE00951 | [4] | WIPER SEAL |
| 37 | 155530A1 | [1] | TUBE |
| 38 | LR012310 | [1] | HYD TUBE |
| 39 | 154503A1 | [1] | O-RING |
| 40 | 160301A1 | [4] | BOLT |
| 40 | 863-12035 | [4] | HEX SOC SCREW |
| 41 | 154543A1 | [2] | O-RING |
| 42 | LD00101 | [1] | CLAMP BRACKET |
| 43 | LD00091 | [1] | CLAMP BRACKET |
| 44 | 155717A1 | [1] | COLLAR |
| 45 | 827-12050 | [1] | BOLT |
| 46 | 892-10012 | [1] | LOCK WASHER,M12 |
| 47 | 158131A1 | [2] | BOLT |
| 48 | 156227A1 | [2] | WASHER |
| 49 | 153912A1 | [1] | LUBE NIPPLE |
| . . | LZ00646 | [1] | SEAL KIT |

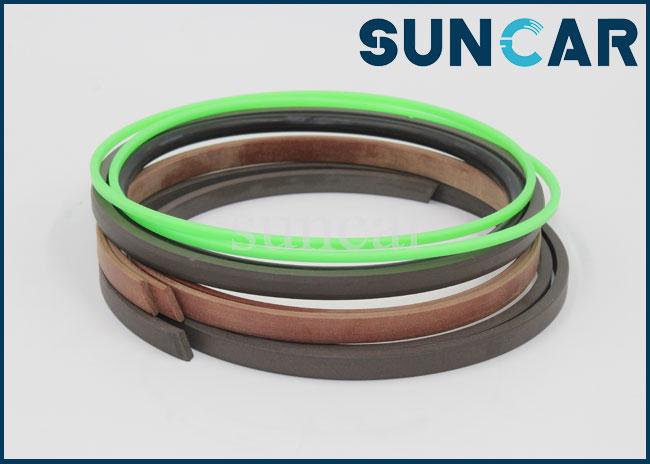

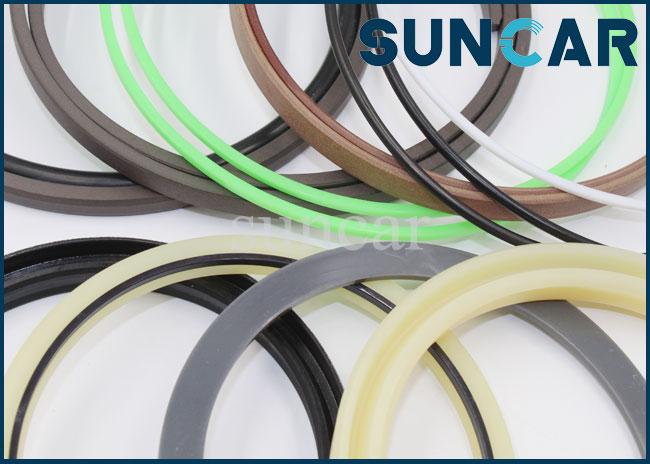

Product Image:
