XKCC-00589 XKCC00589 Outrigger Cylinder Seal Repair Kit For R160W-9A R170W-9 Hyundai
XKCC-00589 XKCC00589 Outrigger Cylinder Seal Repair Kit For R160W-9A R170W-9 Hyundai
| Product Name | Outrigger Cylinder Seal Repair Kit |
| Model |
HYUNDAI R160W-9A, R170W-9, R170W-9S, R180W-9A, R180W-9S |
| Part Number | XKCC-00589, XKCC00589 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Outrigger Cylinder |
Our Product Range:
- We set up the PTFE polymer materials, PU polyurethane and NBR materials seals producing line. All sealing products are widely used in different kinds of excavator and breaker hammer installation and maintenance systems, wining high reputation from the customers at home and abroad. Our factory :The following seal kits we also can supply:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit

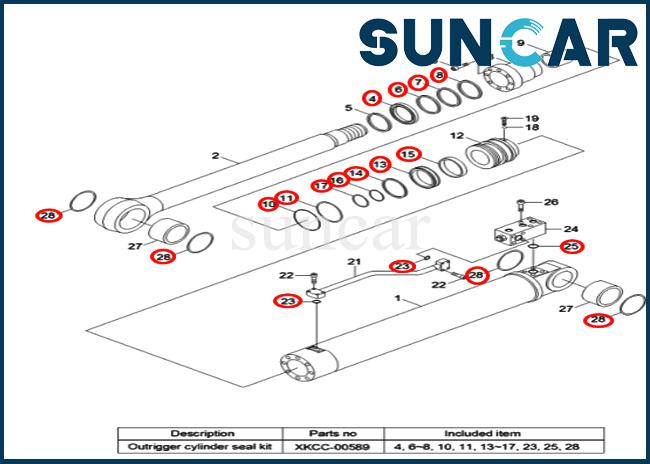

Parts on group OUTRIGGER CYLINDER:
| Pos | Part No. | QTY | Parts Name |
| *. | 31Q5-70211 | [1] | OUTRIGGER CYLINDER-LH |
| *. | 31Q5-70221 | [1] | OUTRIGGER CYLINDER-RH |
| 1 | XKCC-00571 | [1] | TUBE ASSY |
| 2 | XKCC-00572 | [1] | ROD ASSY |
| 3 | XKCC-00573 | [1] | GLAND |
| K4. | XKCC-01080 | [1] | WIPER-DUST |
| 5 | XKCC-00575 | [1] | RING-RETAINING |
| K6. | XKCC-01012 | [1] | SEAL-ROD |
| K7. | XKCC-00577 | [1] | RING-BACK UP |
| K8. | XKCC-01023 | [1] | RING-BUFFER |
| 9 | XKCC-00579 | [1] | BUSHING-DU |
| K10. | XKCC-00580 | [1] | O-RING |
| K11. | XKCC-00581 | [1] | RING-BACK UP |
| 12 | XKCC-00582 | [1] | PISTON |
| K13. | XKCD-02448 | [1] | SEAL-PISTON |
| K14. | XKCC-00584 | [1] | RING-DUST |
| K15. | XKCC-01082 | [1] | RING-WEAR |
| K16. | XKCC-00120 | [1] | O-RING |
| K17. | XKCC-00121 | [2] | RING-BACK UP |
| 18 | XKCC-00059 | [1] | BALL-STEEL |
| 19 | XKCC-00060 | [1] | SCREW-SET |
| 20 | XKCC-00586 | [10] | BOLT-SOCKET |
| 21 | XKCC-00587 | [1] | PIPE ASSY-LH |
| 21 | XKCC-00590 | [1] | PIPE ASSY-RH |
| 22 | XKCC-00062 | [8] | BOLT-SOCKET |
| K23. | XKCC-00063 | [2] | O-RING |
| N24. | 31Q6-70360 | [1] | CHECK VLV-DOUBLE,LH |
| N24. | 31Q6-70350 | [1] | CHECK VLV-DOUBLE,RH |
| K25. | XKCC-00065 | [1] | O-RING |
| 26 | XKCC-00066 | [4] | BOLT-HEX SOCKET |
| 27 | 61Q6-05650 | [2] | BUSHING-PIN |
| K28. | XKCC-00588 | [4] | SEAL-DUST |
| K. | XKCC-00589 | [1] | SEAL KIT |
Contact information:
If you are looking for a company to help you building your own brand of seals/ seal kits/ o-ring kits, or any other OEM services for other items. You have found the right one! Guangzhou Suncar Construction Machinery Co., Ltd. provides professional OEM services on seals, seal kits, o-ring kits and excavator spare parts. For more details, please contact us. We will reply you as soon as possible.

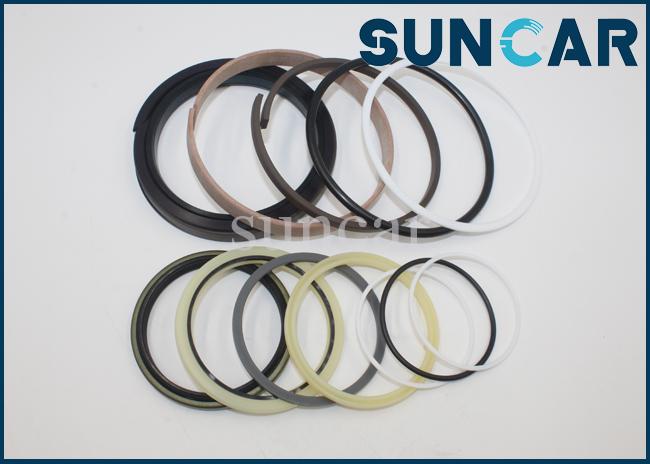

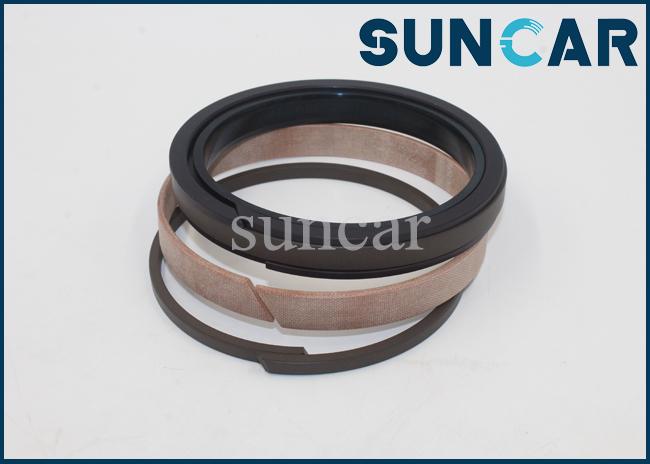

Product Image:
