LZ00472 Case Offset Boom Repair Kit Swing Cylinder Service Kit For CX75SR Crawler Excavator
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

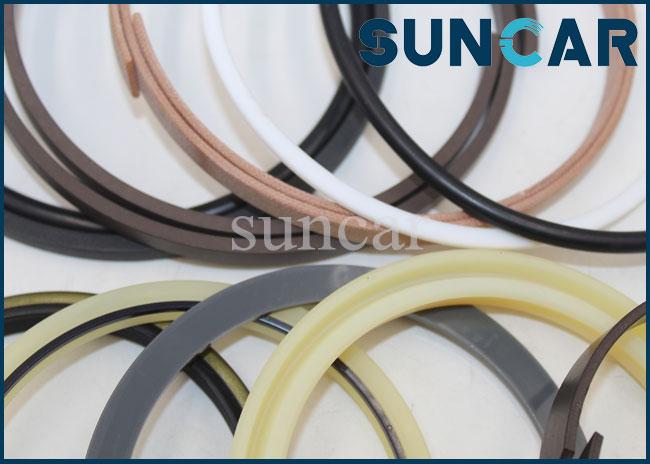

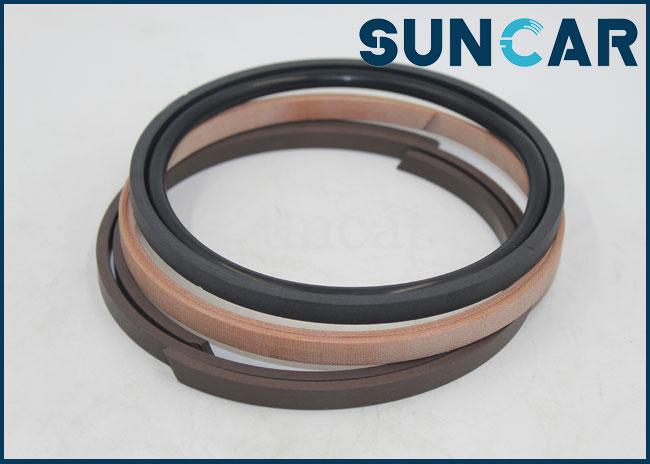

LZ00472 Case Offset Boom Repair Kit Swing Cylinder Service Kit For CX75SR Crawler Excavator
| Product Name | Case Offset Boom Repair Kit Swing Cylinder Service Kit |
| Model | CASE CX75SR, CX75C SR |
| Part Number | LZ00472 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| Rod | 45 MM |
| Bore | 80 MM |
| AppliC.A.Tion | Offset boom/ swing |
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| . . | KAV2442 | [1] | HYDRAULIC CYLINDER |
| 1 | LR00920 | [1] | HYD CYL SLEEVE |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | 166834A1 | [1] | BUSHING |
| 4 | LB00814 | [1] | PISTON ROD |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | 166834A1 | [1] | BUSHING |
| 8 | LU00144 | [1] | CYLINDER END CAP |
| 9 | LB00717 | [1] | BACK-UP RING |
| 10 | 166883A1 | [1] | RING, SNAP |
| 11 | LE00938 | [1] | SEALING RING |
| 12 | 166789A1 | [1] | SEALING RING |
| 13 | LAU0195 | [1] | SEAL |
| 14 | 154705A1 | [1] | O-RING |
| 15 | LE00926 | [1] | BACK-UP RING |
| 16 | 154711A1 | [1] | O-RING |
| 17 | LJ00888 | [1] | JACK PISTON |
| 18 | 160825A1 | [1] | SEALING RING |
| 19 | LE00736 | [2] | RING |
| 20 | 156222A1 | [1] | SCREW |
| 21 | 155976A1 | [1] | BALL |
| 22 | 166467A1 | [4] | SEAL |
| 23 | LR00775 | [1] | PIPE |
| 24 | LK00352 | [1] | PLUG |
| 25 | 155095A1 | [2] | O-RING |
| 26 | LK00353 | [1] | FITTING |
| 27 | 154487A1 | [1] | O-RING |
| 28 | LS00209 | [1] | COLLAR |
| 29 | LA00789 | [1] | BOLT,Spcl |
| 30 | 153912A1 | [2] | LUBE NIPPLE |
| . . | LZ00472 | [1] | SEAL KIT |
Other Related Part Number:
| LZ00448 | LZ00439 | LZ00440 | LZ010930 |
| LZ00449 | LZ00313 | LZ00495 | LZ011200 |
| LZ00450 | LZ00314 | LZ00496 | LZ010940 |
| LZ00453 | LZ007110 | LZ00620 | LZ010160 |
| LZ00456 | LZ007120 | LZ00621 | LZ012040 |
| LZ00455 | LZ007100 | LZ008290 | LZ012020 |
| LZ00457 | LZ009310 | LZ008350 | LZ012050 |
| LZ009410 | LZ009350 | LZ008380 | LZ12030 |
| LZ00451 | LZ008750 | LZ00464 | LZ011260 |
| LZ00452 | LQU0245 | LZ00463 | LZ011310 |
| LZ00453 | LZ008100 | LZ006970 | LZ013490 |
| LZ00445 | LZ008180 | LZ006980 | LZ013720 |
| LZ00446 | LZ008210 | LZ006960 | LZ012090 |
| LZ00447 | LZ007630 | LZ00470 | LZ012100 |
| LZ00443 | LZ007640 | LZ00472 | LZ012110 |
| LZ00442 | LZ007650 | LZ00469 | LZ013760 |
| LZ008960 | LZ008130 | LZ00471 | LZ013800 |
| LZ00542 | LZ008050 | LZ00473 | LZ010100 |
| LZ00444 | LZ008160 | LZ00474 | LZ014870 |
| LZ00646 | LZ008450 | LZ008240 | LZ014960 |
Product Show:
