LZ009310 Boom Replacement Seal Kit CX130B CX130D LC Case Cylinder Service Kit
LZ009310 Boom Replacement Seal Kit CX130B CX130D LC Case Cylinder Service Kit
| Product Name | Case Boom Replacement Seal Kit |
| Model | CASE CX130B, CX130D LC, CX130C, CX130D |
| Part Number | LZ009310 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| Rod | 70 MM |
| Bore | 105 MM |
| AppliC.A.Tion | Boom |
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| . . | KNV14330 | [1] | HYDRAULIC CYLINDER |
| . . | KNV14330R | [1] | REMAN-HYD CYLINDER |
| . . | KNV14330C | [1] | CORE-HYD CYLINDER |
| 3 | LU00100 | [1] | CYLINDER END CAP |
| 4 | 155433A1 | [1] | BUSHING |
| 5 | 155699A1 | [1] | RING, SNAP |
| 6 | LE016510 | [1] | RING |
| 7 | LE016520 | [1] | O-RING |
| 8 | 155231A1 | [1] | BACK-UP RING |
| 9 | LE00420 | [1] | SEAL |
| 10 | 154721A1 | [1] | O-RING |
| 11 | 161880A1 | [1] | BACK-UP RING |
| 12 | 108R014Z065N | [12] | BOLT |
| 13 | LE016530 | [1] | SEALING RING |
| 14 | LE00724 | [1] | SEAL |
| 15 | LJ015730 | [1] | PISTON |
| 16 | 155330A1 | [1] | SEALING RING |
| 17 | 161881A1 | [2] | BACK-UP RING |
| 18 | LE015080 | [2] | SCRAPER RING |
| 19 | 161883A1 | [2] | BACK-UP RING |
| 20 | 156222A1 | [1] | SCREW |
| 21 | 155976A1 | [1] | BALL |
| 22 | 164446A1 | [4] | WIPER SEAL |
| 23 | LR016520 | [1] | HYD TUBE |
| 24 | LR016530 | [1] | HYD TUBE |
| 25 | 154528A1 | [1] | O-RING |
| 26 | 87016471 | [4] | HEX SOC SCREW |
| 27 | 154499A1 | [1] | O-RING |
| 28 | 861-8025 | [1] | HEX SOC SCREW |
| 29 | LD001660 | [1] | CLAMP BRACKET |
| 30 | LZU0095 | [1] | CLAMP BRACKET |
| 31 | 158131A1 | [2] | BOLT |
| 32 | 156227A1 | [2] | WASHER |
| 33 | 160871A1 | [2] | HALF-FLANGE |
| 34 | LA00683 | [1] | BOLT,Hex |
| 35 | 892-10012 | [1] | LOCK WASHER,M12 |
| 36 | 153630A1 | [1] | LUBE NIPPLE |
| 37 | LZ009310 | [1] | SEAL KIT |
| 39 | NSS | [1] | NOT SOLD SEPARAT |
| 40 | KNV1143 | [1] | SELF LUB RING |
| 42 | NSS | [1] | NOT SOLD SEPARAT |
| 43 | KNV1139 | [1] | SELF LUB RING |
Other Products We Can Offer You:
Oil Seal
O-Ring
Loader Seal Kit
Floating Seal
Hydraulic Breaker Seal Kit
Excavator Hydraulic Parts
Control Valve Seal Kit
Swing Motor Seal Kit
Crankshaft Rear Seal
Crankshaft Front Seal
Track Adjuster Seal Kit
Center Joint Seal Kit
(Main) Control Valve Seal Kit
Blade Lift/Tilt/Steering Cylinder Kit
Hydraulic Seal Series:
Piston Seal: ODI , OSI, OUIS, OUHR, SPG, SPGW, SPGO, SPGC, CPI, CPH;
Piston Rod Seal: IDI, ISI, IUIS, IUH, UNI, SPNO, SPN, SPNS, SPNC, UPI, USI, UPH, USH, V99F, V96H;
Dust Seal: DKI, DWI, DWIR, DKBI, DKH, DSI, LBI, LBH, LBHK, DSPB;
Buffer Ring: HBY, HBTS;
Anti-Wear Ring: RYT, WR;
Support Ring: BRT1, BRT2, BRT3, BRN2, BRN3, etc.

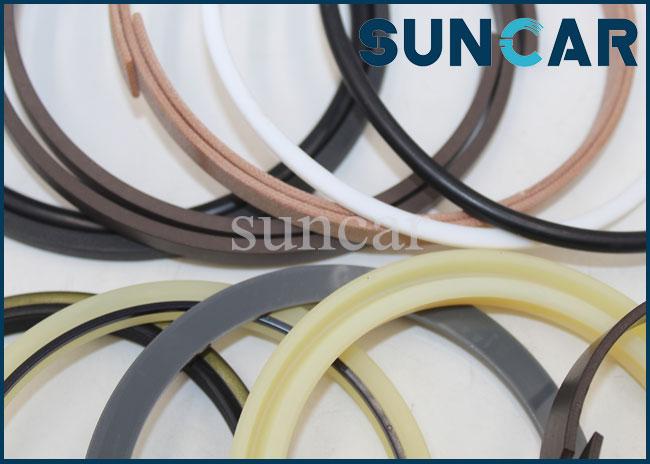

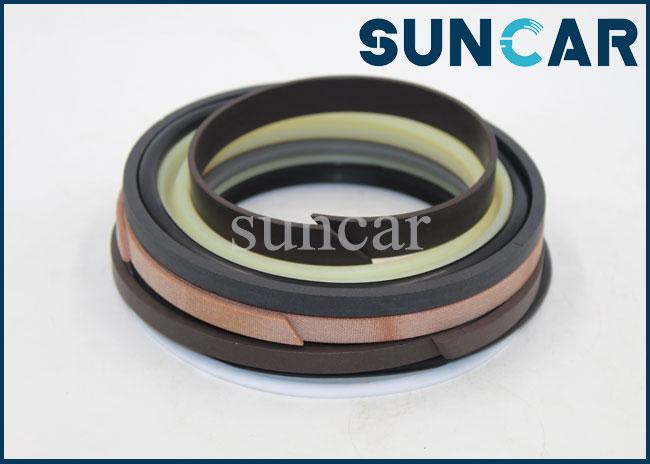

Prodduct Show:
