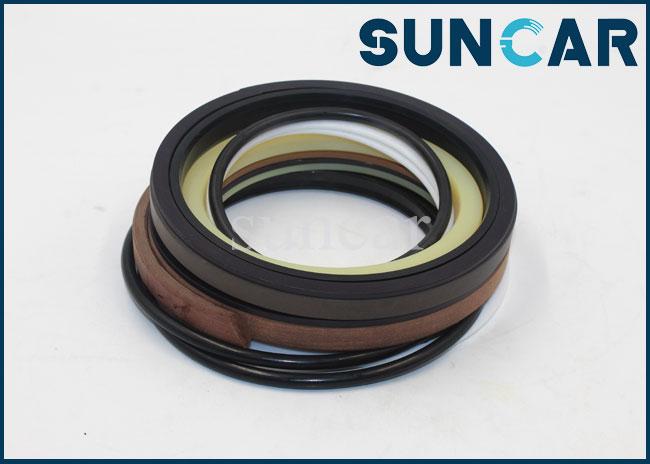

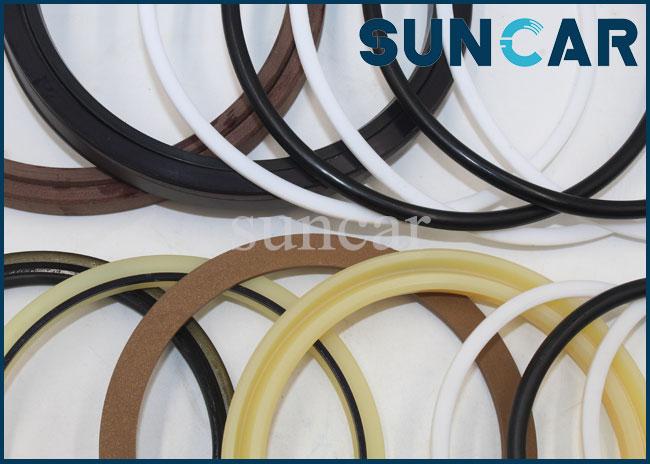

LZ009350 Arm Cylinder Sealing Kit Repair Seal Kit Fits CASE CX130B CX145C SR Excavator
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
LZ009350 Arm Cylinder Sealing Kit Repair Seal Kit Fits CASE CX130B CX145C SR Excavator
| Product Name | Case Arm Cylinder Sealing Kit Repair Seal Kit |
| Model | CASE CX130B, CX145C SR |
| Part Number | LZ009350 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
Types Of Seals:
- Piston Seal: SPGW, SPGW2, SPGWV, SPGO, SPGA, OK, GKS/YS, KDAS/DAS, SPG, SPGM, SPGN, SPGC, OHM, CPI, CPH, ODI, OSI, OUIS, OUHR, OKH, OUY.
- Piston Rod Seal: IDI, ISI, IUIS, IUH, PTB, H605, SPNO, SPN, SPNS, SPNC, U-CUP.
- Piston And Piston Rod Seal: UPI, USI, UPH, USH, V99F, V96H, UN, UHS, UNS.
- Buffer Seal: HBY, HBTS, HBTY, URE.
- Dust seal for reciproC.A.Ting motion: DKI, DWI, DWIR, DKBI, DKBI3, DKBZ, DKH, DKB, GA, DSI, LBI, LBH, LBHK, DSPB, DHS, FA, LPI, A1, GHP, DKC.
- Dust Seal for shake: DLI, DLI2, VAY.
- Oil Seal: SC, SB, TC, TB, TCK, VC, VB, KC, KB, TCZ, TCV, TCN, TC4, TB4, TCJ, SA1J, VAJ, KA3J, DC, DB, OC, etc.
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| . . | KNV14350 | [1] | HYDRAULIC CYLINDER |
| . . | KNV14350R | [1] | REMAN-HYD CYLINDER |
| . . | KNV14350C | [1] | CORE-HYD CYLINDER |
| 3 | LU00102 | [1] | CYLINDER END CAP |
| 4 | 155430A1 | [1] | BUSHING |
| 5 | 155696A1 | [1] | RING, SNAP |
| 6 | LE014950 | [1] | RING |
| 7 | LE014960 | [1] | O-RING |
| 8 | 155241A1 | [1] | BACK-UP RING |
| 9 | 158033A1 | [1] | WIPER SEAL |
| 10 | 154741A1 | [1] | O-RING |
| 11 | 160812A1 | [1] | BACK-UP RING |
| 12 | 161059A1 | [10] | BOLT |
| 13 | LE016540 | [1] | SEALING RING |
| 14 | LE00726 | [1] | RING |
| 15 | LJ014800 | [1] | PISTON |
| 16 | 160824A1 | [1] | SEALING RING |
| 17 | 160813A1 | [2] | BACK-UP RING |
| 18 | LE014980 | [2] | SCRAPER RING |
| 19 | 160827A1 | [2] | RING |
| 20 | 156223A1 | [1] | SET SCREW |
| 21 | 155977A1 | [1] | BALL |
| 22 | 161879A1 | [1] | RING |
| 23 | LE00690 | [1] | SEAL |
| 24 | 160556A1 | [2] | STOP |
| 25 | 161926A1 | [1] | RING, SNAP |
| 26 | 164446A1 | [4] | WIPER SEAL |
| 27 | LR012210 | [1] | CLAMP |
| 28 | LR016570 | [1] | HYD TUBE |
| 29 | 154528A1 | [2] | O-RING |
| 30 | 87016471 | [8] | HEX SOC SCREW |
| 31 | LD00031 | [1] | CLAMP BRACKET |
| 32 | LD00040 | [1] | CLAMP BRACKET |
| 33 | 158131A1 | [2] | BOLT |
| 34 | 156227A1 | [2] | WASHER |
| 35 | 155717A1 | [1] | COLLAR |
| 36 | 826-12055 | [1] | BOLT |
| 37 | 892-10012 | [1] | LOCK WASHER,M12 |
| 38 | 153631A1 | [1] | LUBE NIPPLE |
| . . | LZ009360 | [1] | HYD CYL SLEEVE |
| 41 | NSS | [1] | NOT SOLD SEPARAT |
| 42 | KNV1142 | [1] | SELF LUB RING |
| . . | LZ009370 | [1] | PISTON ROD |
| 44 | NSS | [1] | NOT SOLD SEPARAT |
| 45 | KNV1142 | [1] | SELF LUB RING |
| . . | LZ009350 | [1] | SEAL KIT |
Product Show:
