LZ008210 Bucket Sealing Kit Fits CX160C CX160B CASE Hydraulic Cylinder Seal Repair Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
LZ008210 Bucket Sealing Kit Fits CX160C CX160B CASE Hydraulic Cylinder Seal Repair Kit
| Product Name | Case Bucket Cylinder Seal Repair Kit |
| Model | CASE CX160C, CX160B |
| Part Number | LZ008210 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| Rod | 75 MM |
| Bore | 105 MM |
| Cylinder NO. | KLV11081 |
| AppliC.A.Tion | Bucket |
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| . . | KLV11081 | [1] | BUCKET CYLINDER |
| . . | KLV11081R | [1] | REMAN-HYD CYLINDER |
| . . | KLV11081C | [1] | CORE-HYD CYLINDER |
| 3 | LU00120 | [1] | CYLINDER END CAP |
| 4 | 160843A1 | [1] | BUSHING |
| 5 | 160870A1 | [1] | BACK-UP RING |
| 6 | LE015050 | [1] | RING |
| 7 | LE015060 | [1] | O-RING |
| 8 | 160808A1 | [1] | BACK-UP RING |
| 9 | 160783A1 | [1] | WIPER SEAL |
| 10 | 154721A1 | [1] | O-RING |
| 11 | 161880A1 | [1] | BACK-UP RING |
| 12 | 108R014Z065N | [12] | BOLT |
| 13 | LE015070 | [1] | SEALING RING |
| 14 | LJ014880 | [1] | PISTON |
| 15 | 155330A1 | [1] | SEALING RING |
| 16 | 161881A1 | [2] | BACK-UP RING |
| 17 | LE015080 | [2] | SCRAPER RING |
| 18 | 161883A1 | [2] | BACK-UP RING |
| 19 | 156222A1 | [1] | SCREW |
| 20 | 155976A1 | [1] | BALL |
| 21 | 164445A1 | [2] | RING |
| 22 | 160482A1 | [2] | WIPER SEAL |
| 23 | 155516A1 | [1] | TUBE |
| 24 | LR015490 | [1] | TUBE |
| 25 | 154528A1 | [2] | O-RING |
| 26 | 87016471 | [8] | HEX SOC SCREW |
| 27 | LD00070 | [1] | CLAMP BRACKET |
| 28 | LZU0095 | [1] | CLAMP BRACKET |
| 29 | 158131A1 | [2] | BOLT |
| 30 | 156227A1 | [2] | WASHER |
| 31 | 155717A1 | [1] | COLLAR |
| 32 | 628-12055 | [1] | BOLT,Hex |
| 33 | 892-10012 | [1] | LOCK WASHER |
| 34 | 153630A1 | [2] | LUBE NIPPLE |
| 35 | LK005460 | [1] | HYD CONNECTOR |
| 36 | 154503A1 | [1] | O-RING |
| . . | LZ008220 | [1] | HYD CYL SLEEVE |
| 39 | NSS | [1] | NOT SOLD SEPARAT |
| 40 | KLV10070 | [1] | SELF LUB RING |
| . . | LZ008230 | [1] | PISTON ROD |
| 42 | NSS | [1] | NOT SOLD SEPARAT |
| 43 | KNV1140 | [1] | SELF LUB RING |
| . . | LZ008210 | [1] | SEAL KIT |
Main Products:
- We specialises in Hydraulic Breaker seal kit, Excavator seal kit, Wheel Loaders seal kit, Crawler Dozers seal kit, Pump seal kit, Motor seal kit, Dump Trucks seal kit, Wear Ring/ O-ring / X-ring, Center Swing seal, Track adjuster seal, PTFE Seals: Rod Seals, Piston Seals, Rotary Seals and more.
- We have the full range of mould size and stable and high quality production line to ensure delivery, Welcome OEM/ODM order.
Contact information:
If you are looking for a company to help you building your own brand of seals/ seal kits/ o-ring kits, or any other OEM services for other items. You have found the right one! Guangzhou Suncar Construction Machinery Co., Ltd. provides professional OEM services on seals, seal kits, o-ring kits and excavator spare parts. For more details, please contact us. We will reply you as soon as possible.

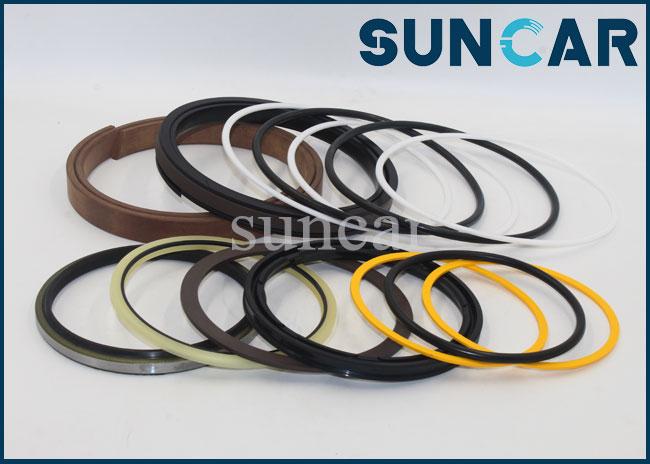

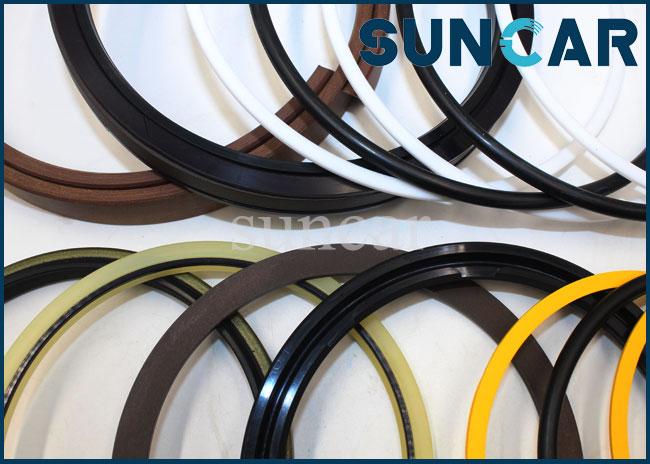

Product Image:
