DEERE Gasket 0501319957 Rear Axle Clutch Pack/ Plates Fits Excavator 220DW 190GW
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
DEERE Gasket 0501319957 Rear Axle Clutch Pack/ Plates Fits Excavator 220DW 190GW
| Product Name | Rear Axle Clutch Pack/ Plates |
| Model | DEERE 190DW, 230GW, 220DW, 190GW |
| Part Number | 0501319957 |
| Size | 90*100*6 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic oil seal |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
The Role Of The Seal:
- Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
- Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
- Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
- Rod and piston seal: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.
- Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
- Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.

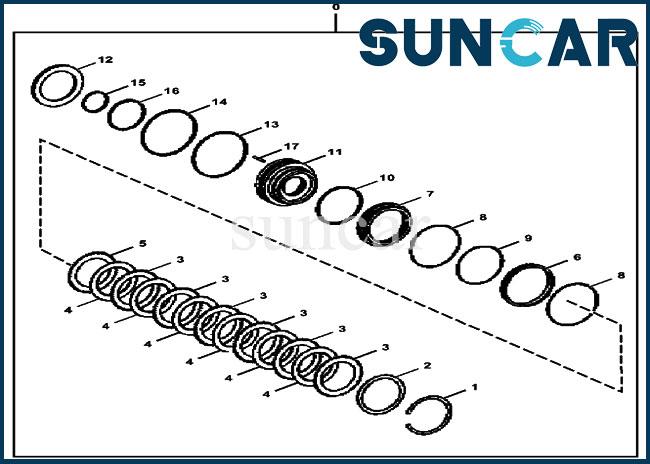

Parts on group Rear Axle Clutch Pack:
| Pos | Part No. | QTY | Parts Name |
| 0 | AT446119 | [1] | Transmission |
| 1 | AT322028 | [1] | Snap Ring |
| 2 | 4143351004 | [1] | Locking Collar |
| 3 | AT322029 | [6] | Plate |
| 4 | AT322036 | [6] | Plate |
| 5 | AT322030 | [1] | Plate |
| AT322031 | [1] | Plate | |
| AT322029 | [1] | Plate | |
| AT322032 | [1] | Plate | |
| AT322033 | [1] | Plate | |
| AT322034 | [1] | Plate | |
| AT322035 | [1] | Plate | |
| T354261 | [1] | Plate | |
| 6 | 4143351057 | [1] | Ring |
| 7 | 4143351056 | [1] | Ring |
| 8 | 0634313639 | [2] | O-Ring |
| 9 | AT321965 | [1] | O-Ring |
| 10 | 0501319959 | [1] | Gasket |
| 11 | 4143351061 | [1] | Piston |
| 12 | 0501213416 | [1] | Ring |
| 13 | 0501319994 | [1] | Gasket |
| 14 | 0501319960 | [1] | Gasket |
| 15 | 0501319957 | [1] | Gasket |
| 16 | 0501319958 | [1] | Gasket |
| 17 | 0731201736 | [2] | Pin |
Product Show:
