Wear Resistance LZ011300 Dipper Cylinder Sealing Kit CX300C Hydraulic Service Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Wear Resistance LZ011300 Dipper Cylinder Sealing Kit CX300C Hydraulic Service Kit
| Product Name | Case Dipper Cylinder Sealing Kit |
| Part Number | LZ011300 |
| Model | CASE CX240BLR, CX250C, CX290B, CX300C |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic oil seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| Rod | 105 MM |
| Bore | 150 MM |
| AppliC.A.Tion | Dipper |
ClassifiC.A.Tion And Function Of Hydraulic Cylinder Seal Kit:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. Within the system, there are 2 main types of hydraulic seals.
- Dynamic seals: Designed to seal various parts in relative motion. They can be utilized in high pressure and even when rod and hydraulic cylinder seals are in reciprocal motion between the head and the connecting rod.
- Static seals: Our static seal kit seal parts that are not in relative motion. These are used in various loC.A.Tions as per the construction and look of the hydraulic cylinder. The connection rod and piston is the primary area where these seals are used.
Our Service:
(1) Experienced sealing products supplier.
(2) Professional design team and sales department for your service.
(3) All the questions will be dealt in 24 hours.
(4) Stable quality---coming from good materials.
(5) Lower price---not cheapest but the lowest at the same quality.
(6) Good service---satisfied factory service before and after sale.
(7) Delivery time---7days-15days for mass production.
(8) Your inquiry will be replied in one working day.
C.A.Tegories Of Seal Kit:
| Hydraulic cylinder seal kit | Center joint seal kit |
| Transmission Seal Kit | Control valve seal kit |
| Breaker hammer seal kit | Hydraulic pump seal kit |
| Travel motor seal kit | Main pump seal kit |
| Swing motor seal kit | Gear pump seal kit |
| Track adjuster seal kit | Pilot valve seal kit |
| O-ring kit box | Hydraulic seals |
| Pump gasket | Regulator valve seal kit |
Parts On Group:
| Pos | Part No. | QTY | Parts Name |
| 1 | LR019540 | [1] | TUBE |
| 4 | LB014450 | [1] | ROD |
| 7 | NSS | [1] | NOT SOLD SEPARAT |
| 11 | LE012550 | [1] | O-RING |
| 12 | LE012320 | [1] | O-RING |
| 13 | LE00738 | [1] | BACK-UP RING |
| 14 | LE019480 | [1] | BACK-UP RING |
| 15 | 154805A1 | [1] | O-RING |
| 16 | 159997A1 | [1] | BACK-UP RING |
| 17 | LUU0042 | [12] | BOLT,Hex Skt Hd |
| 18 | LE00740 | [1] | BACK-UP RING |
| 19 | LE00991 | [1] | SEAL |
| 20 | 160216A1 | [1] | PISTON |
| 21 | LE00543 | [1] | SEALING RING |
| 22 | 160000A1 | [2] | BACK-UP RING |
| 23 | LE014690 | [2] | WIPER SEAL |
| 24 | 155309A1 | [2] | RING |
| 25 | 155733A1 | [1] | SHIM |
| 26 | LA00738 | [1] | NUT |
| 27 | 156228A1 | [1] | SET SCREW |
| 28 | 155981A1 | [1] | BALL |
| 29 | 162709A1 | [1] | BEARING |
| 30 | LE00746 | [1] | SEAL |
| 31 | 160128A1 | [2] | STOP |
| 32 | 160129A1 | [1] | RING, SNAP |
| 33 | LE00951 | [4] | WIPER SEAL |
| 34 | LJ014170 | [1] | COUPLING FLANGE |
| 35 | LR019530 | [1] | TUBE |
| 36 | 154543A1 | [2] | O-RING |
| 37 | 863-12035 | [8] | HEX SOC SCREW |
| 38 | LD00039 | [1] | CLAMP BRACKET |
| 39 | 160340A1 | [1] | MOUNTING CLIP |
| 40 | 158131A1 | [2] | BOLT |
| 41 | 156227A1 | [2] | WASHER |
| 42 | 155716A1 | [1] | COLLAR |
| 43 | LA00683 | [1] | BOLT,Hex |
| 44 | 892-10012 | [1] | LOCK WASHER |
| 45 | 153912A1 | [1] | LUBE NIPPLE |
| 46 | LZ011300 | [1] | SEAL KIT |

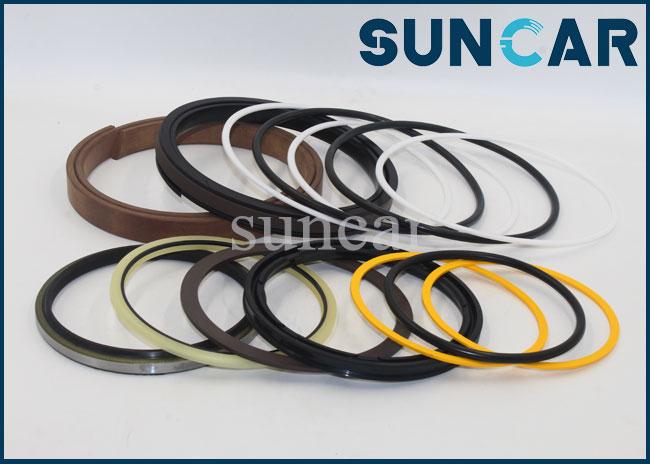

Product Image:
