CASE Dipper/ Arm Seal Kit LZ011200 Cylinder Replacement Kit Fits Excavator CX210C LC CX210D LC
CASE Dipper/ Arm Seal Kit LZ011200 Cylinder Replacement Kit Fits Excavator CX210C LC CX210D LC
| Product Name | Case Dipper/ Arm Cylinder Seal Kit |
| Part Number | LZ011200 |
| Model | CASE CX210D NLC, CX235C SR, CX210C LC, CX210D LC, CX210C NLC |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic oil seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| Rod | 100 MM |
| Bore | 140 MM |
| Cylinder No. | KRV19600 |
| AppliC.A.Tion | Dipper/ arm |
How To Buy:
Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.
- "Product name + part number + quantity".
- Expected packaging: general packaging or customized packaging.
Step 2: Quotation and invoice
- We will send the quotation to you as soon as possible. Once confirmed, we will issue an official invoice and provide bank information.
Step 3: Payment
- Pay to our account and send us a bank statement.
- Payment method: Western Union, T/T, Paypal, Transfer.
Step 4: Delivery
- After receiving the payment, we will arrange the goods to be delivered to your designated address in China as soon as possible.
Step 5: Receipt
- You just need to wait patiently for the goods.
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| 0 | KRV33000 | [1] | CYLINDER |
| 0 | KRV33000R | [1] | REMAN-HYD CYLINDER |
| 0 | KRV33000C | [1] | CORE-HYD CYLINDER |
| 1 | LR019590 | [1] | HYD CYL SLEEVE |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | KRV2400 | [1] | SELF LUB RING |
| 4 | LB014510 | [1] | PISTON ROD |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | KRV2400 | [1] | SELF LUB RING |
| 8 | LU002400 | [1] | CYLINDER END CAP |
| 9 | 155429A1 | [1] | BUSHING |
| 10 | 155695A1 | [1] | RING, SNAP |
| 11 | LE012390 | [1] | RING |
| 12 | LE012310 | [1] | RING |
| 13 | LE00954 | [1] | BACK-UP RING |
| 14 | LE019470 | [1] | RING |
| 15 | 154789A1 | [1] | O-RING |
| 16 | LE00784 | [1] | BACK-UP RING |
| 17 | 166094A1 | [10] | BOLT |
| 18 | LE013180 | [1] | BACK-UP RING |
| 19 | LE015980 | [1] | BACK-UP RING |
| 20 | LJ014160 | [1] | PISTON |
| 21 | 155312A1 | [1] | SEALING RING |
| 22 | LE00785 | [2] | BACK-UP RING |
| 23 | LE013200 | [2] | BACK-UP RING |
| 24 | 155307A1 | [2] | RING |
| 25 | 156228A1 | [1] | SET SCREW |
| 26 | 155981A1 | [1] | BALL |
| 27 | LE013210 | [1] | BACK-UP RING |
| 28 | LE00746 | [1] | SEAL |
| 29 | 160128A1 | [2] | STOP |
| 30 | 160129A1 | [1] | RING, SNAP |
| 31 | 160483A1 | [4] | BACK-UP RING |
| 32 | LJ014170 | [1] | COUPLING FLANGE |
| 33 | LR014120 | [1] | HYD TUBE |
| 34 | 154543A1 | [2] | O-RING |
| 35 | 863-12035 | [8] | HEX SOC SCREW |
| 36 | LD001380 | [1] | CLAMP BRACKET |
| 37 | 156375A1 | [1] | MOUNTING CLIP |
| 38 | 158131A1 | [2] | BOLT |
| 39 | 156227A1 | [2] | WASHER |
| 40 | 155717A1 | [1] | COLLAR |
| 41 | 628-12055 | [1] | BOLT |
| 42 | 892-10012 | [1] | LOCK WASHER,M12 |
| 43 | 153912A1 | [1] | LUBE NIPPLE |
| 44 | LZ011200 | [1] | SEAL KIT |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.

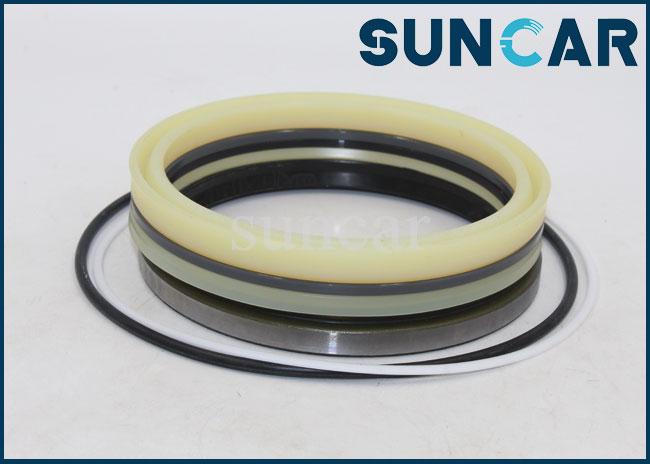

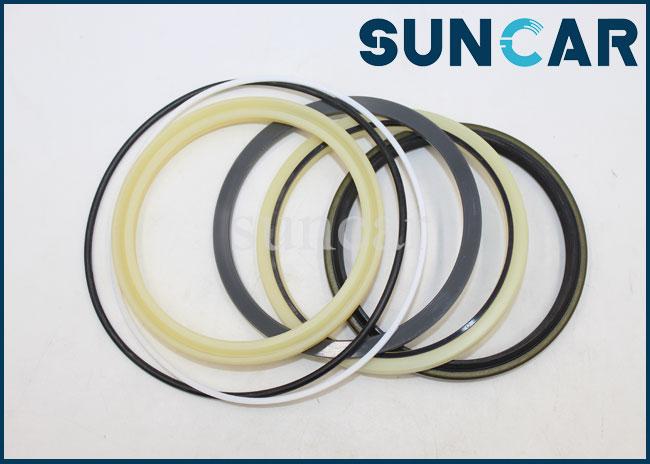

Product Show:
