CX80C CX75C SR Case LZ012040 Boom/ Dipper/ Arm Seal Kit Cylinder Sealing Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

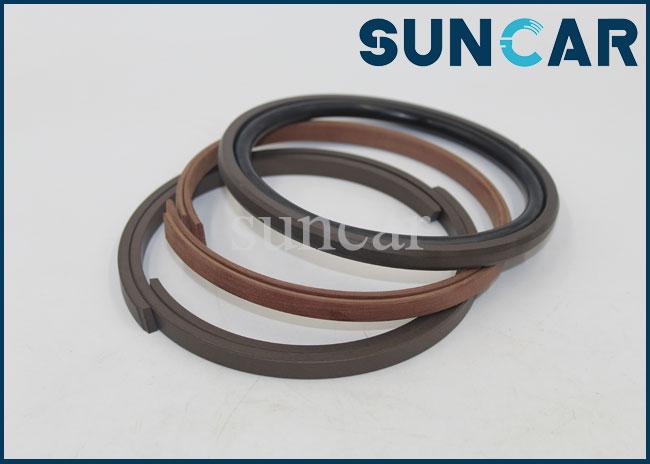

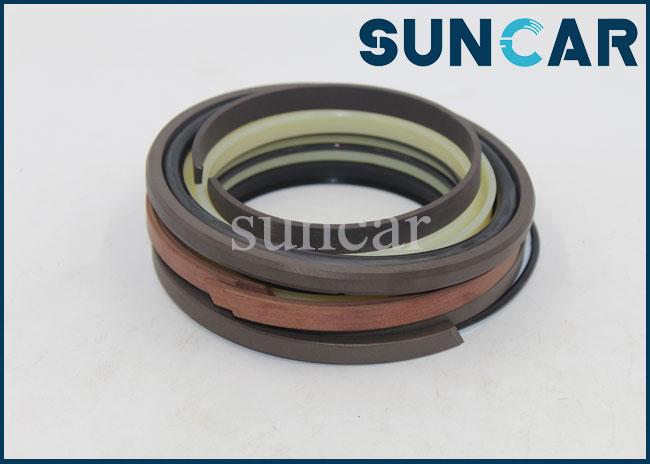

CX80C CX75C SR Case LZ012040 Boom/ Dipper/ Arm Seal Kit Cylinder Sealing Kit
| Product Name | Case Boom/ Dipper/ Arm Cylinder Sealing Kit |
| Part Number | LZ012040 |
| Model | CASE CX80C, CX75C SR |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic oil seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Boom/ Dipper/ Arm |
Seal ClassifiC.A.Tion:
- According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
Some Related Part Number Of CASE Seal Kit:
| LZ00448 | LZ00439 | LZ00440 | LZ010930 |
| LZ00449 | LZ00313 | LZ00495 | LZ011200 |
| LZ00450 | LZ00314 | LZ00496 | LZ010940 |
| LZ00453 | LZ007110 | LZ00620 | LZ010160 |
| LZ00456 | LZ007120 | LZ00621 | LZ012040 |
| LZ00455 | LZ007100 | LZ008290 | LZ012020 |
| LZ00457 | LZ009310 | LZ008350 | LZ012050 |
| LZ009410 | LZ009350 | LZ008380 | LZ12030 |
| LZ00451 | LZ008750 | LZ00464 | LZ011260 |
| LZ00452 | LQU0245 | LZ00463 | LZ011310 |
| LZ00453 | LZ008100 | LZ006970 | LZ013490 |
| LZ00445 | LZ008180 | LZ006980 | LZ013720 |
| LZ00446 | LZ008210 | LZ006960 | LZ012090 |
| LZ00447 | LZ007630 | LZ00470 | LZ012100 |
| LZ00443 | LZ007640 | LZ00472 | LZ012110 |
| LZ00442 | LZ007650 | LZ00469 | LZ013760 |
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| 1 | KAV20220 | [1] | HYDRAULIC CYLINDER |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | 166832A1 | [1] | BUSHING |
| 4 | LB015930 | [1] | PISTON ROD |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | LB00691 | [1] | BUSHING |
| 7 | LU003230 | [1] | CYLINDER END CAP |
| 8 | NSS | [1] | NOT SOLD SEPARAT |
| 9 | NSS | [1] | NOT SOLD SEPARAT |
| 10 | NSS | [1] | NOT SOLD SEPARAT |
| 11 | LE00858 | [1] | RING |
| 12 | 155129A1 | [1] | RING |
| 13 | LE019400 | [1] | WIPER |
| 14 | 154713A1 | [2] | O-RING |
| 15 | LE00492 | [1] | O-RING |
| 16 | 154719A1 | [1] | O-RING |
| 17 | LS005090 | [1] | HOLDER |
| 18 | LE022130 | [2] | SEAL |
| 19 | LH006670 | [1] | COLLAR |
| 20 | LE022140 | [1] | RING |
| 21 | LE022150 | [1] | RING |
| 22 | LJ020760 | [1] | PISTON |
| 23 | LE022160 | [1] | SEALING RING |
| 24 | LE00943 | [2] | GUIDE RING |
| 25 | 156222A1 | [1] | SCREW |
| 26 | 155976A1 | [1] | BALL |
| 27 | LAU0182 | [1] | RING |
| 28 | LE00727 | [1] | RING |
| 29 | 160876A1 | [2] | STOP |
| 30 | LE00902 | [1] | RING |
| 31 | 166467A1 | [2] | SEAL |
| 32 | 155119A1 | [2] | BACK-UP RING |
| 33 | LR021520 | [1] | HYD CYL SLEEVE |
| 34 | LZ012040 | [1] | SEAL KIT |
Product Show:
