PH01V00014R300 Swing Cylinder Repair Seal Kit Fits CX47 Case Excavator Engineering Construction
PH01V00014R300 Swing Cylinder Repair Seal Kit Fits CX47 Case Excavator Engineering Construction
| Product Name | Case Swing Cylinder Repair Seal Kit |
| Part Number | PH01V00014R300 |
| Model | CASE CX47 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Swing |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| . . | PH01V00017F3 | [1] | CYLINDER ASSY. |
| 1 | NSS | [1] | NOT SOLD SEPARAT |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 4 | PH01V00014S004 | [1] | BUSHING |
| 5 | 2438U345S15 | [1] | RING |
| 6 | PH01V00011S006 | [1] | GASKET |
| 7 | ZD12G08500 | [2] | O-RING |
| 8 | PH01V00014S008 | [1] | BACK-UP RING |
| 9 | ZD11G09000 | [1] | O-RING |
| 10 | PH01V00014S010 | [1] | HOLDER |
| 11 | PH01V00014S011 | [1] | SEAL |
| 12 | PH01V00014S012 | [1] | COLLAR |
| 13 | PH01V00006S008 | [1] | BACK-UP RING |
| 14 | PH01V00017S014 | [1] | BEARING |
| 15 | PH01V00014S015 | [1] | PISTON |
| 16 | 2438U715S24 | [1] | RING |
| 17 | PH01V00014S017 | [2] | RING |
| 18 | 2438U1057S16 | [1] | SET SCREW |
| 19 | 2436U946S11 | [1] | BALL |
| 20 | PH01V00017S020 | [1] | BEARING |
| 21 | YT01V00002S023 | [1] | SEAL |
| 22 | 2438U1116S23 | [1] | RING |
| 23 | 2438U1116S24 | [2] | STOP |
| 24 | PH01V00017S024 | [2] | BUSHING |
| 25 | 2438U717S21 | [4] | SEAL |
| 26 | PH01V00017S026 | [1] | PIPE ASSY. |
| 27 | PH01V00017S027 | [1] | PLUG |
| 28 | ZD12P02290 | [2] | O-RING |
| 31 | ZG91S02000 | [1] | LUBE NIPPLE |
| 32 | PH01V00014S029 | [1] | SPACER |
| 33 | PY01V00034S018 | [1] | BOLT |
| 34 | PW01V00043S032 | [1] | CLAMP |
| 35 | PY01V00034S018 | [1] | CYLINDER HEAD |
| . . | PH01V00014R300 | [1] | REPAIR KIT |
| . . | PH01V00017R400 | [1] | REPAIR KIT |
| . . | PH01V00017R500 | [1] | REPAIR KIT |
ClassifiC.A.Tion And Function Of Hydraulic Cylinder Seal Kit:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. Within the system, there are 2 main types of hydraulic seals:
- Dynamic seals: Designed to seal various parts in relative motion. They can be utilized in high pressure and even when rod and hydraulic cylinder seals are in reciprocal motion between the head and the connecting rod.
- Static seals: Our static seal kit seal parts that are not in relative motion. These are used in various loC.A.Tions as per the construction and look of the hydraulic cylinder. The connection rod and piston is the primary area where these seals are used.
Our Mission:
- Our company is leading seal kit maker specially for hydraulic cylinder seal product.
- Our product range is:
* Whole hydraulic seal for construction machinery and industrial used.
* Repair seal kit(for Doosan, Hyundai, SUNCARSUNCARSUNCARVO.L.VO, Komatsu, Hitach, Kobelco, C.A.T...etc)
* Hydraulic breaker seal
* Hydraulic breaker seal kit
* Floating seal
* Machined seal(made by SUNCAR for special size by special material) etc.
- SUNCAR seals made a remarkable growth of quality and quality control, the quality already have reached or surpassed the global major leading seal maker quality with very reasonable cost. Our motto is to provide to our costumer most reliable, most superior, most reasonable sealing solution to satisfy customer requirement.

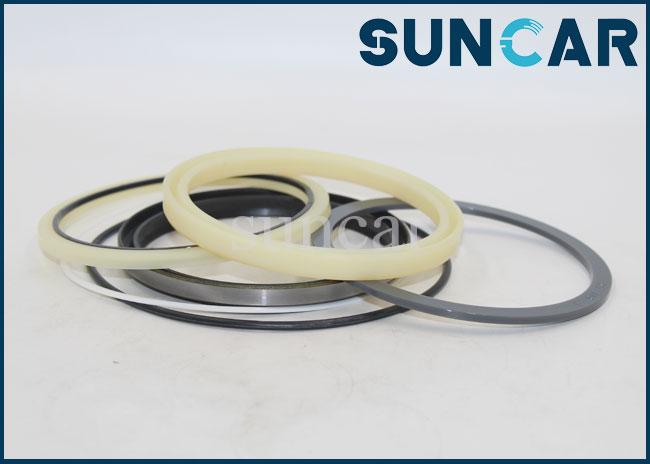

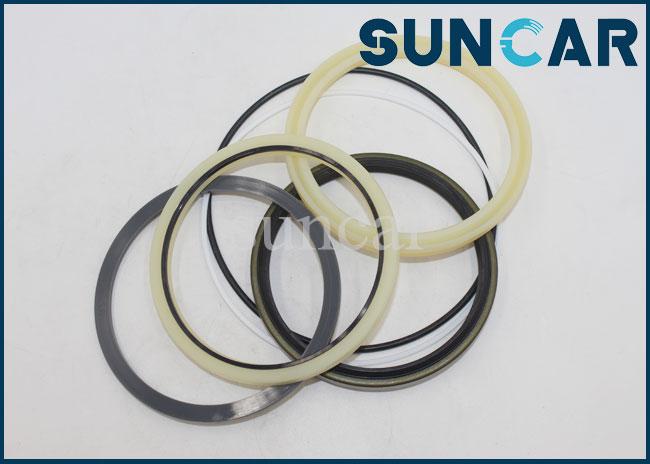

Product Image:
