CX27B CX31B CX55BMSR Case PW01V00062R300 Swing/ Arm/ Bucket Cylinder Replacement Kit
CX27B CX31B CX55BMSR Case PW01V00062R300 Swing/ Arm/ Bucket Cylinder Replacement Kit
| Product Name | Case Swing/ Arm/ Bucket Cylinder Replacement Kit |
| Part Number | PW01V00062R300 |
| Model | CASE CX27B, CX31B, CX55BMSR |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| Rod | 45MM |
| Bore | 80 MM |
| Cylinder No. | PY01V00051F1 |
| AppliC.A.Tion | Swing/ Arm/ Bucket |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| 1 | NSS | [1] | NOT SOLD SEPARAT |
| 2 | PM01V00044S002 | [2] | BUSHING |
| 3 | NSS | [1] | NOT SOLD SEPARAT |
| 4 | PW01V00062S004 | [1] | CYLINDER HEAD |
| 5 | 2438U1169S4 | [1] | BUSHING |
| 6 | 2438U635S3 | [1] | RING |
| 7 | PH01V00006S006 | [1] | RING |
| 8 | ZD12G07000 | [1] | O-RING |
| 9 | PH01V00016S008 | [1] | BACK-UP RING |
| 10 | ZD12G07500 | [1] | O-RING |
| 11 | PM01V00056S011 | [1] | PISTON |
| 12 | 2438U816S19 | [1] | RING |
| 13 | PH01V00016S012 | [2] | RING |
| 14 | 2438U1057S16 | [1] | SET SCREW |
| 15 | 2436U946S11 | [1] | BALL |
| 16 | PM01V00007S025 | [4] | GASKET |
| 17 | ZG91U02000 | [1] | LUBE NIPPLE |
| 18 | PV01V00047S019 | [1] | BUSHING |
| . . | PM01V00056R100 | [1] | REPAIR KIT |
| . . | PM01V00056R200 | [1] | REPAIR KIT |
| . . | PW01V00062R300 | [1] | REPAIR KIT |
Our Service:
- SpecifiC.A.Tions:
(1) Factory direct, quality ensured, lower price.
(2) Fast delivery time.
- Characteristics:
(1) Better reliability and longer life.
(2) Updated product design.
(3) Ensure the products quality.
- Advantage:
(1) Longer duration,higher quality.
(2) Lower maintenance cost.
(3) Enhancing the international quality.
(4) Exceeding value with the local price.
(5) More reliable performance

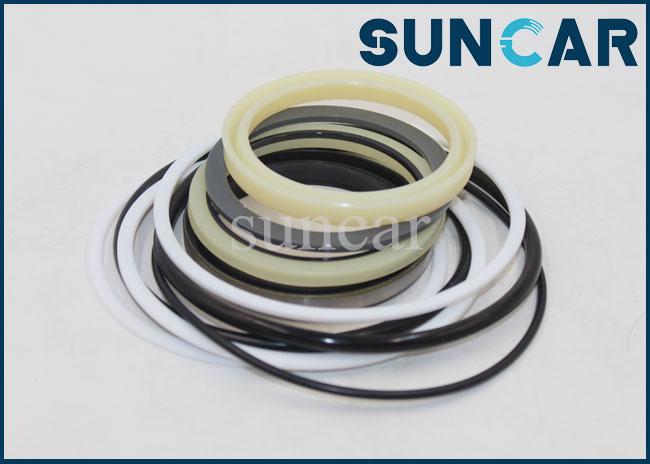

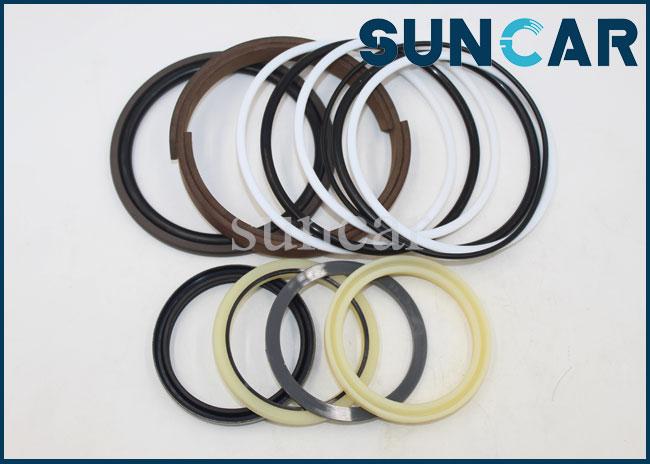

Product Show:
