707-98-05450 Steering Sealing Kit 7079805450 Cylinder Seal Repair Kit For Komatsu GD555-3 GD655-3
707-98-05450 Steering Sealing Kit 7079805450 Cylinder Seal Repair Kit For Komatsu GD555-3 GD655-3
| Product Name | Komatsu Steering Cylinder Seal Repair Kit |
| Part Number | 707-98-05450, 7079805450 |
| Model |
KOMATSU GD555-3, GD555-3A, GD555-3C, GD655-3, GD655-3A, GD655-3C, GD655-3Y, GD655-3E0, GD675-3, GD675-3A, GD675-3E0, GD755-3, GH320-3 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Grader |

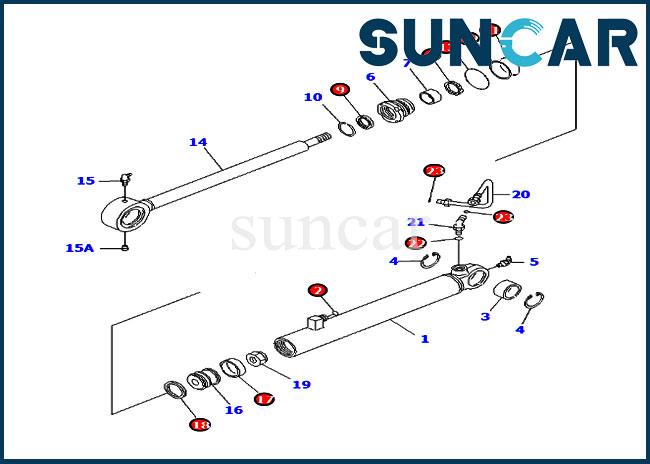

Related Parts:
| Pos | Part No. | Parts Name | QTY |
| G1 | 707-00-XC200 | CYLINDER GROUP,L.H. | 1 |
| G1 | 707-00-X7G50 | CYLINDER GROUP,L.H. (FINAL COATING) | 1 |
| G1 | 707-00-XC210 | CYLINDER GROUP,R.H. | 1 |
| G1 | 707-00-X7G60 | CYLINDER GROUP,R.H. (FINAL COATING) | 1 |
| 707-00-0C200 | CYLINDER ASSEMBLY,L.H. | 1 | |
| 707-00-0C210 | CYLINDER ASSEMBLY,R.H. | 1 | |
| 1 | 721-11-50470 | • CYLINDER | 1 |
| 2 | 02896-11009 | • O-RING (KIT) | 1 |
| 3 | 707-76-35010 | • BUSHING | 1 |
| 4 | 04065-05520 | • RING,SNAP | 2 |
| 5 | 07020-00900 | • FITTING,GREASE | 1 |
| 6 | 707-29-50981 | • HEAD,CYLINDER | 1 |
| 7 | 07177-03525 | • BUSHING | 1 |
| 8 | 707-51-35210 | • PACKING,ROD (KIT) | 1 |
| 9 | 175-63-75190 | • SEAL,DUST (KIT) | 1 |
| 10 | 07179-00054 | • RING,SNAP | 1 |
| 11 | 07000-13045 | • O-RING (KIT) | 1 |
| 12 | 707-35-99500 | • RING,BACK-UP (KIT) | 1 |
| 13 | 07000-13048 | • O-RING (KIT) | 1 |
| 14 | 707-61-35040 | • ROD,PISTON | 1 |
| 15 | 07020-00675 | • FITTING,GREASE | 1 |
| 15A | 07043-70108 | • PLUG | 1 |
| 16 | 707-36-50400 | • PISTON | 1 |
| 17 | 10E-63-32390 | • RING,WEAR (KIT) | 1 |
| 18 | 707-44-50070 | • RING,PISTON (KIT) | 1 |
| 19 | 07165-12022 | • NUT,NYLON | 1 |
| 20 | 707-86-38100 | TUBE,L.H. | 1 |
| 20 | 707-86-38200 | TUBE,R.H. | 1 |
| 21 | 02782-10315 | ELBOW | 1 |
| 22 | 07002-12034 | O-RING (KIT) | 1 |
| 23 | 02896-11009 | O-RING (KIT) | 2 |
| K | 707-98-05450 | SERVICE KIT,STEERING CYLINDER | 2 |
Advantages Of Oil Seal:
1. Oil seal structure is simple and easy to manufacture. Simple oil seal can be molded in one time, even the most compliC.A.Ted oil seal, the manufacturing process is also oil seal not compliC.A.Ted. The metal skeleton oil seal can also form the required oil seal between metal and rubber only by stamping, gluing, inlaying, molding and other processes.
2. Oil seal has light weight and few consumables. Each type of oil seal is a combination of thin-walled metal parts and rubber parts, and its material consumption is very small, so the weight of each oil seal is very light.
3. The installation position of the oil seal is small, the axial size is small, easy to process, and make the machine compact.
4. Oil seal has good sealing performance and long service life. It has certain adaptability to the vibration of the machine and the eccentricity of the main shaft.
5. Oil seal is easy to disassemble and convenient for inspection.
6.The oil seal is cheap.

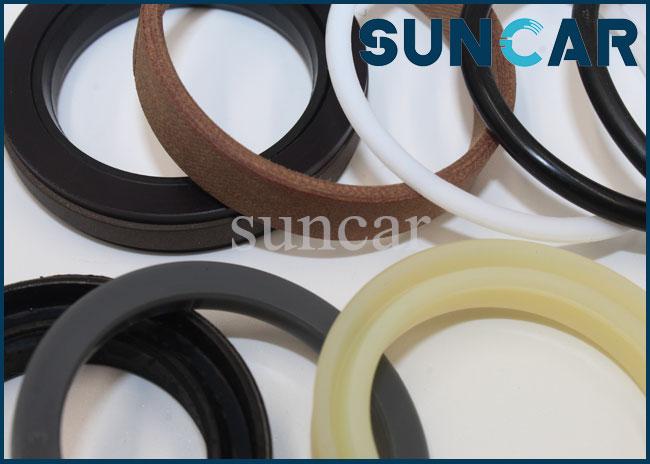

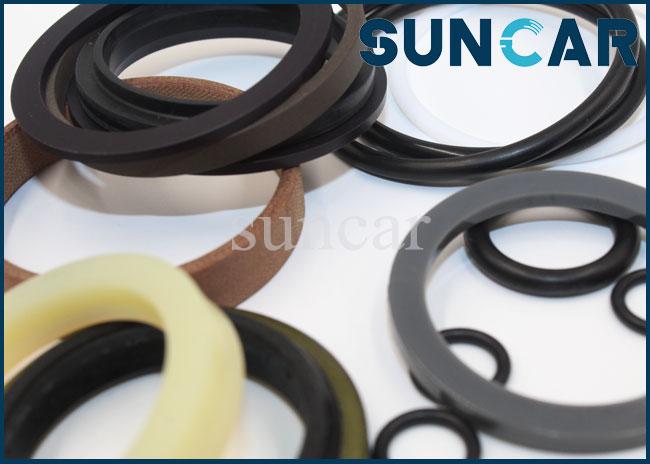

Product Show:
