KOMATSU 418-33-21430 4183321430 Gearbox Seal Ring For Wheel Loader WA200-5 WA250-6 Front / Rear Axle
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

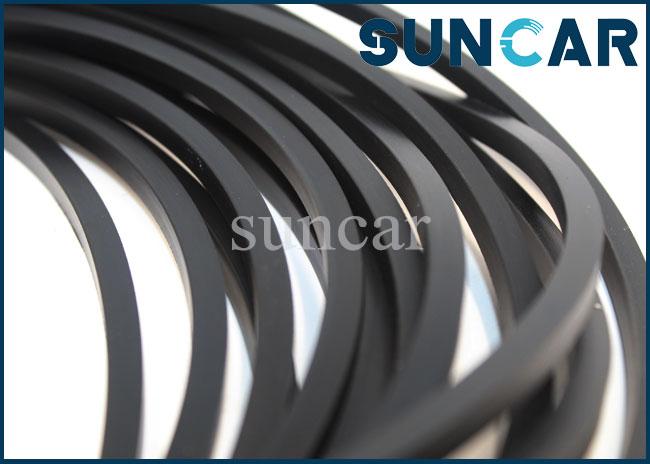

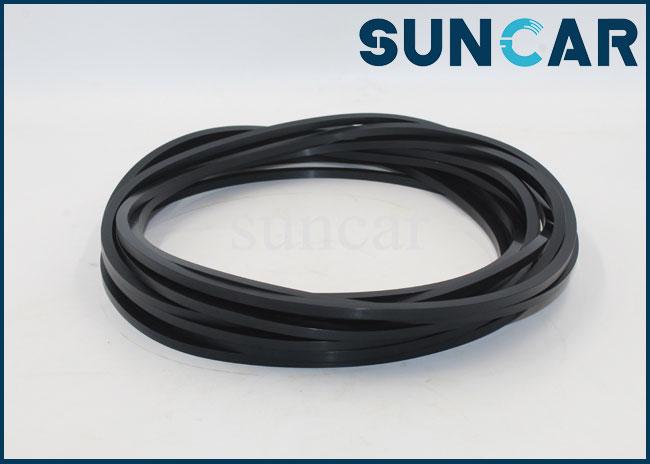

KOMATSU 418-33-21430 4183321430 Gearbox Seal Ring For Wheel Loader WA200-5 WA250-6 Front / Rear Axle
| Product Name | Komatsu Gearbox Seal Ring |
| Part Number | 418-33-21430, 4183321430 |
| Model | KOMATSU WA180-3L, WA180PT-3MC, WA200-3 WA200-5, WA200-6, WA200L-5, WA200PT-5, WA200PZ-6, WA250-6, WA250PZ-6, WA270-7, WA320-3, WA320-6, WA320-7, WA320PZ-6 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Wheel loader |
Product Show:

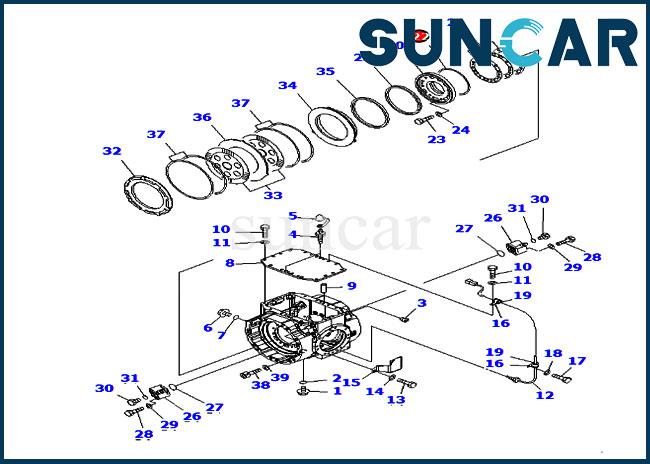

Related Parts:
| Pos | Part No. | Parts Name | QTY |
| 418-22-30100 | AXLE ASSEMBLY,FRONT | 1 | |
| 418-22-30050 | AXLE ASSEMBLY,FRONT | 1 | |
| 418-22-31010 | • DIFFERENTIAL ASSEMBLY | 1 | |
| 418-22-31050 | • DIFFERENTIAL ASSEMBLY | 1 | |
| 1 | 07044-13620 | •• PLUG | 1 |
| 2 | 07002-13634 | •• O-RING | 1 |
| 3 | 07043-70211 | •• PLUG | 2 |
| 4 | 419-33-11460 | •• BLEEDER | 2 |
| 5 | 566-32-11620 | •• CAP | 2 |
| 6 | 07041-13612 | •• PLUG | 2 |
| 7 | 07002-13634 | •• O-RING | 2 |
| 8 | 418-22-33130 | •• COVER | 1 |
| 9 | 04020-01228 | •• PIN | 2 |
| 10 | 01010-61230 | •• BOLT | 16 |
| 11 | 01643-31232 | •• WASHER | 16 |
| 12 | 426-06-31120 | •• SENSOR,TEMPERATURE | 1 |
| 13 | 01010-61225 | •• BOLT | 2 |
| 14 | 01643-31232 | •• WASHER | 2 |
| 15 | 418-22-33511 | •• COVER | 1 |
| 16 | 04434-51612 | •• CLIP | 2 |
| 17 | 01010-61225 | •• BOLT | 1 |
| 18 | 01643-31232 | •• WASHER | 1 |
| 19 | 07095-20211 | •• CUSHION | 2 |
| 20 | 418-22-31162 | •• CARRIER | 2 |
| 21 | 418-22-31710 | •• SHIM, 0.05MM | 6 |
| 21 | 418-22-31720 | •• SHIM, 0.2MM | 4 |
| 21 | 418-22-31730 | •• SHIM, 0.3MM | 4 |
| 21 | 418-22-31740 | •• SHIM, 0.8MM | 2 |
| 22 | 418-33-21430 | •• RING | 2 |
| 23 | 01010-61230 | •• BOLT | 16 |
| 24 | 01643-51232 | •• WASHER | 16 |
| 25 | 418-33-31440 | •• SEAL | 2 |
| 26 | 418-43-37302 | •• VALVE | 2 |
| 27 | 07000-12040 | •• O-RING | 2 |
| 28 | 01010-61290 | •• BOLT | 4 |
| 29 | 01643-31232 | •• WASHER | 4 |
| 30 | 07040-11409 | •• PLUG | 2 |
| 31 | 07002-11423 | •• O-RING | 2 |
| 32 | 418-33-31360 | • PLATE | 2 |
| 33 | 418-33-31261 | • DISK | 4 |
| 34 | 418-33-31121 | • PISTON | 2 |
| 35 | 418-33-31410 | • SEAL | 2 |
| 36 | 418-33-31250 | • PLATE | 2 |
| 37 | 418-33-31610 | • SPRING | 8 |
| 38 | 01252-60816 | • BOLT | 4 |
| 39 | 154-61-16570 | • WASHER | 4 |
