XKCC-01429 Undercarriage Sealing Kit XKCC01429 Cylinder Replacement Seal Kit Fits CX18C Case
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

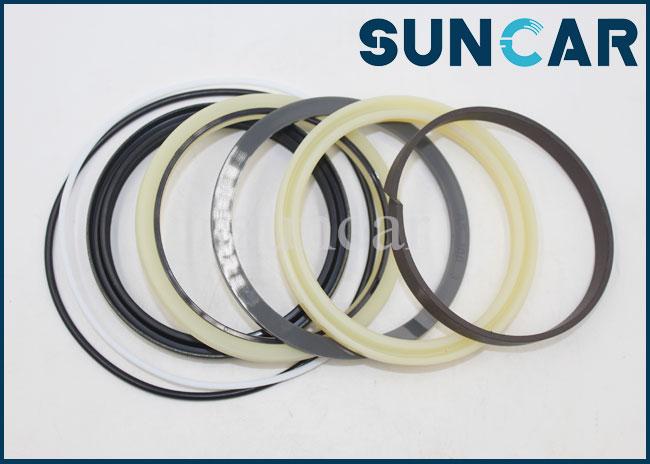

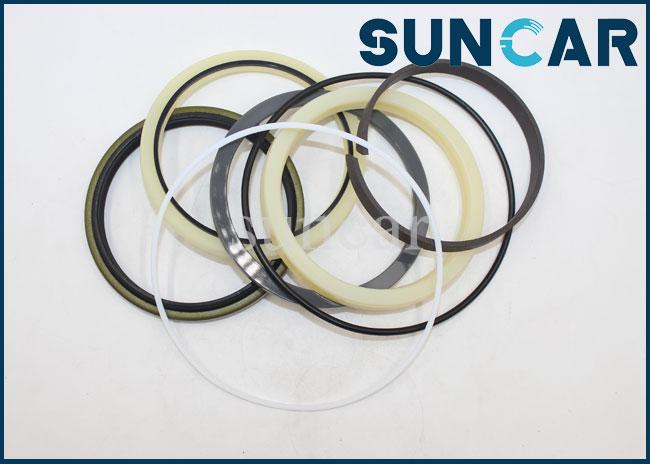

XKCC-01429 Undercarriage Sealing Kit XKCC01429 Cylinder Replacement Seal Kit Fits CX18C Case
| Product Name | Case Undercarriage Cylinder Replacement Seal Kit |
| Part Number | XKCC-01429, XKCC01429 |
| Model | CASE CX18C |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Undercarriage |
Seal ClassifiC.A.Tion:
- According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
Our Product Range:
- We set up the PTFE polymer materials, PU polyurethane and NBR materials seals producing line. All sealing products are widely used in different kinds of excavator and breaker hammer installation and maintenance systems, wining high reputation from the customers at home and abroad. Our factory :The following seal kits we also can supply:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| 1 | XKCC-01429 | [1] | SEAL KIT |
| 2 | 31MJ-40261PR | [1] | HYDRAULIC CYLINDER |
| 3 | XKCC-00477 | [1] | GLAND |
| 4 | XKCC-01425 | [1] | WIPER ARM |
| 5 | XKCC-00479 | [1] | RING |
| 6 | XKCC-01426 | [1] | SEAL |
| 7 | XKCC-00481 | [1] | BACK-UP RING |
| 8 | XKCC-00482 | [1] | BEARING ASSY |
| 9 | XKCC-00164 | [1] | O-RING |
| 10 | XKCC-00483 | [1] | BACK-UP RING |
| 11 | XKCC-00057 | [1] | O-RING |
| 12 | XKCC-00484 | [1] | PISTON |
| 13 | XKCC-01427 | [1] | SEAL |
| 14 | XKCC-01428 | [1] | WEAR RING |
| 15 | XKCC-00487 | [1] | SCREW |
| 16 | XKCC-00361 | [1] | BALL |
| 17 | XKCC-00488 | [1] | O-RING |
| 18 | XKCC-00489 | [1] | BACK-UP RING |
| 19 | XKCC-00490 | [2] | BUSHING |
| 20 | XKCC-00393 | [4] | SEAL |
| 21 | XKCC-00491 | [1] | RING |
| 22 | XKCC-00395 | [2] | O-RING |
| 23 | XKCC-00341 | [2] | NIPPLE |
| 24 | XKCC-00470 | [1] | TUBE |
| 25 | XKCC-00474 | [1] | ROD |
Product Show:
