VS Type Seals NBR FKM Water Guard Seals V-Ring Rotary Shaft Seal Ring
VS Type Seals NBR FKM Water Guard Seals V-Ring Rotary Shaft Seal Ring
| Product Name | VS V-Ring Seals |
| Size | 5 ~ 200 mm |
| Type | VS |
| Material | NBR, FKM |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Temperature | NBR: -40℃~+100℃, FKM: -20℃~+150℃ |
| Condition | New, genuine new |
| Sample | Available |
| Pressure | Max 0.03MPa |
| Speed | Max 20m/s |
| Media | Water, LubriC.A.Ting greases |
Product Description:
* V-ring seals are axial shaft seals, available in a variety of sizes and suitable for a variety of appliC.A.Tions.
* Seal with an axially acting, wear-resistant sealing lip.

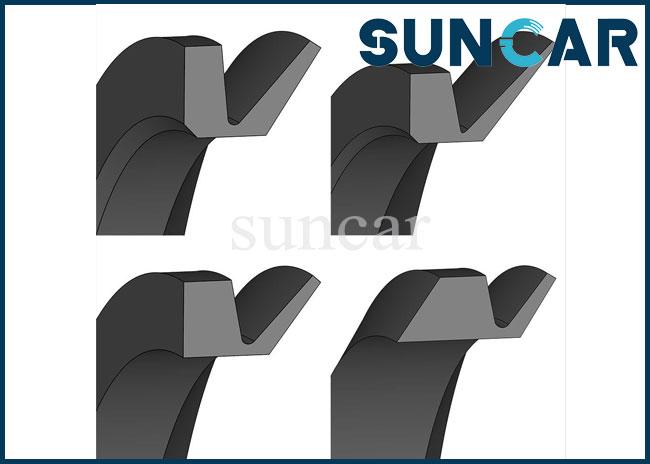

* VS has a standard low cross section, tapered back face and wide body, providing a firm hold on the shaft.
- Advantages:
* Especially low frictional forces
* High axial working capacity
* Easy fitting
- AppliC.A.Tion:
* Water guards are used in roller bearings for the retention of grease and to repel dust, scale, splash water, roller oil and similar media. Commonly used in agricultural and automotive.
Size Of VS Type Seals V-Ring Rotary Shaft Seal Ring:
| 4*8*3.9/5.2 | 20*28*7.9/10.5 | 49*59*9.5/13 | 99*113*13.1/18 |
| 4*8*3.9/5.2 | 20*28*7.9/10.5 | 49*59*9.5/13 | 99*113*13.1/18 |
| 5*9*3.9/5.2 | 22*30*7.9/10.5 | 54*64*9.5/13 | 108*122*13.1/18 |
| 5*9*3.9/5.2 | 22*30*7.9/10.5 | 54*64*9.5/13 | 108*122*13.1/18 |
| 6*10*3.9/5.2 | 25*33*7.9/10.5 | 58*68*9.5/13 | 117*131*13.1/18 |
| 6*10*3.9/5.2 | 25*33*7.9/10.5 | 58*68*9.5/13 | 117*131*13.1/18 |
| 7*11*3.9/5.2 | 27*35*7.9/10.5 | 63*75*11.3/15.5 | 126*140*13.1/18 |
| 7*11*3.9/5.2 | 27*35*7.9/10.5 | 63*75*11.3/15.5 | 126*140*13.1/18 |
| 9*15*5.6/7.7 | 29*37*7.9/10.5 | 67*79*11.3/15.5 | 135*149*13.1/18 |
| 9*15*5.6/7.7 | 29*37*7.9/10.5 | 67*79*11.3/15.5 | 135*149*13.1/18 |
| 10.5*16.5*5.6/7.7 | 31*39*7.9/10.5 | 72*84*11.3/15.5 | 144*160*15/20.5 |
| 10.5*16.5*5.6/7.7 | 31*39*7.9/10.5 | 72*84*11.3/15.5 | 144*160*15/20.5 |
| 12.5*18.5*5.6/7.7 | 34*42*7.9/10.5 | 76*88*11.3/15.5 | 153*169*15/20.5 |
| 12.5*18.5*5.6/7.7 | 34*42*7.9/10.5 | 76*88*11.3/15.5 | 153*169*15/20.5 |
| 14*20*5.6/7.7 | 36*46*9.5/13 | 81*93*11.3/15.5 | 162*178*15/20.5 |
| 14*20*5.6/7.7 | 36*46*9.5/13 | 81*93*11.3/15.5 | 162*178*15/20.5 |
| 16*22*5.6/7.7 | 40*50*9.5/13 | 85*97*11.3/15.5 | 171*187*15/20.5 |
| 16*22*5.6/7.7 | 40*50*9.5/13 | 85*97*11.3/15.5 | 171*187*15/20.5 |
| 18*26*7.9/10.5 | 45*55*9.5/13 | 90*102*11.3/15.5 | 180*196*15/20.5 |
| 18*26*7.9/10.5 | 45*55*9.5/13 | 90*102*11.3/15.5 | 180*196*15/20.5 |

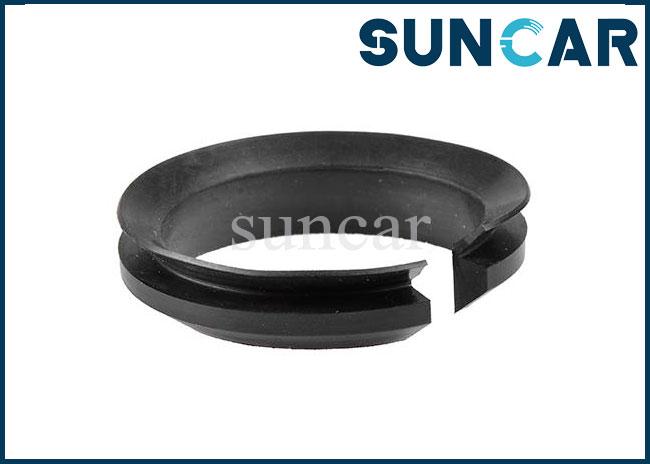

Product Show:
