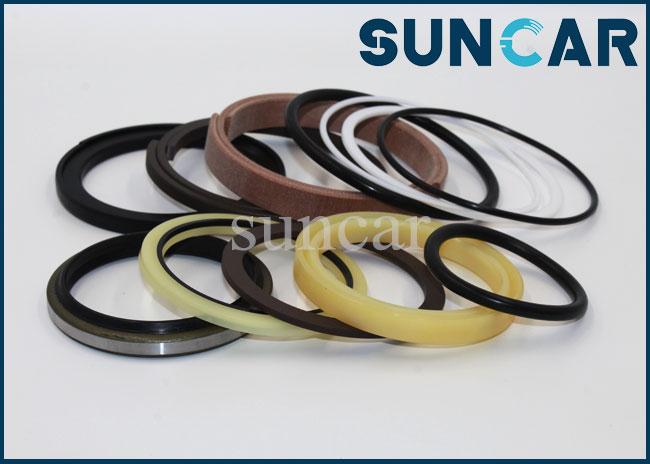

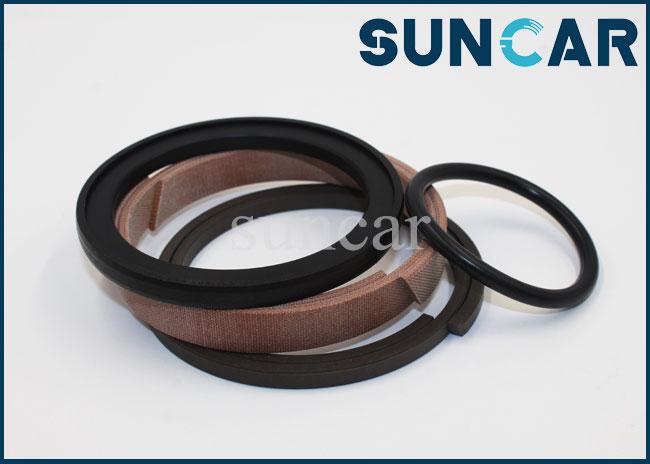

VOE14589156 SUNCARVO.L.VO Bucket Seal Repair Kit EC135B EW145B VOE 14589156 Cylinder Replacement Seal Kit
VOE14589156 SUNCARSUNCARSUNCARVO.L.VO Bucket Seal Repair Kit EC135B EW145B VOE 14589156 Cylinder Replacement Seal Kit
| Product Name | SUNCARSUNCARSUNCARVO.L.VO Cylinder Seal Repair Kit |
| Part Number | VOE14589156/ VOE 14589156/ 14589156 |
| Model | SUNCARSUNCARSUNCARVO.L.VO EC135B, EC140B, EC210B, EC240B, EC290B, EW145B |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.

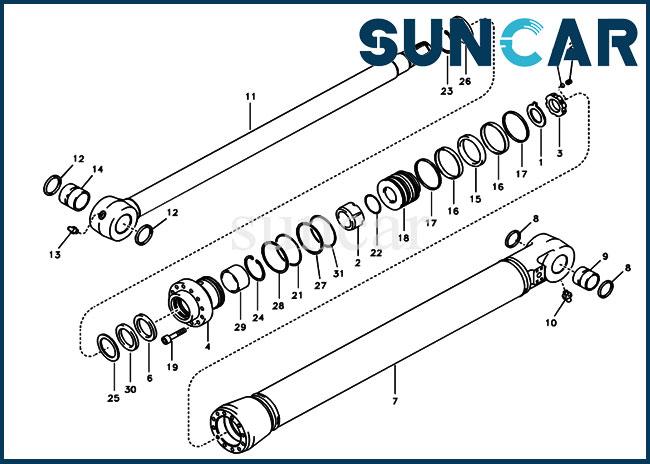

Related Parts:
| Pos. | Part No. | QTY | Parts Name |
| VOE14522846 | [1] | Bucket cylinder | |
| VOE14564132 | [1] | Bucket cylinder | |
| 1 | SA9216-04510 | [1] | Lock washer |
| 2 | VOE14522847 | [1] | Cushion |
| 3 | SA1146-06910 | [1] | Lock nut |
| 4 | [1] | Head | |
| 5 | SA1146-06870 | [1] | Pad |
| 6 | SA1146-08170 | [1] | Seal |
| 7 | [1] | Tube | |
| 8 | VOE14503887 | [2] | Seal |
| 9 | VOE14517946 | [1] | Bushing |
| 10 | SA9481-11003 | [1] | Nipple |
| 11 | VOE14522849 | [1] | Rod |
| VOE14564136 | [1] | Rod | |
| 12 | VOE14560203 | [2] | Seal |
| 13 | SA9481-11003 | [1] | Nipple |
| 14 | VOE14517949 | [1] | Bushing |
| 15 | VOE14510892 | [1] | Seal |
| 16 | SA9565-11000 | [2] | Wear ring |
| 17 | SA9568-01000 | [2] | Seal |
| 18 | [1] | Piston | |
| 19 | VOE13949445 | [11] | Screw |
| 20 | VOE963059 | [1] | Set screw |
| 21 | VOE990640 | [1] | O-ring |
| 22 | VOE990631 | [1] | O-ring |
| 23 | SA9556-07000 | [1] | Retaining ring |
| 24 | SA9557-06000 | [1] | Retaining ring |
| 25 | SA9567-20701 | [1] | Back-up ring |
| 26 | SA9564-20700 | [1] | Seal |
| 27 | SA9566-40950 | [1] | Back-up ring |
| 28 | SA9566-10900 | [1] | Back-up ring |
| 29 | SA9612-07040 | [1] | Bearing |
| 30 | SA9563-20701 | [1] | Seal |
| 31 | VOE990595 | [1] | O-ring |
| 100 | VOE14589156 | [1] | Sealing kit |
