VOE14589130 VOE 14589130 14589130 Boom Cylinder Seal Repair Kit For EC210B EC240B SUNCARVO.L.VO Heavy Parts
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

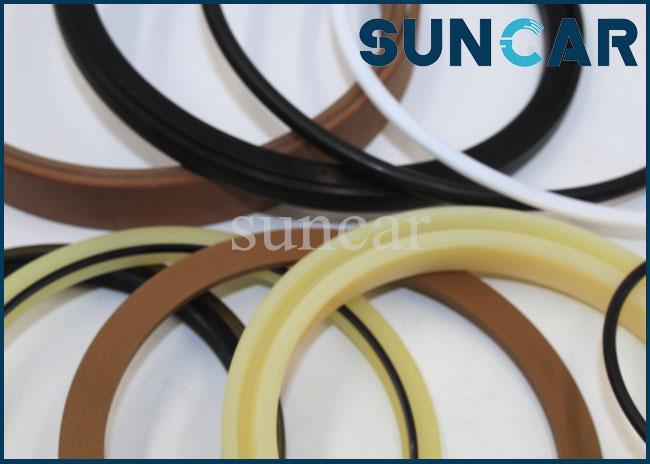

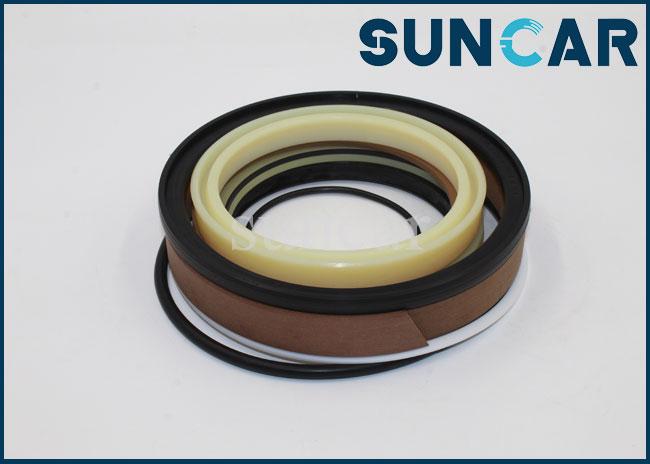

VOE14589130 VOE 14589130 14589130 Boom Cylinder Seal Repair Kit For EC210B EC240B SUNCARSUNCARSUNCARVO.L.VO Heavy Parts
| Product Name | SUNCARSUNCARSUNCARVO.L.VO Boom Cylinder Seal Repair Kit |
| Part Number | VOE14589130/ VOE 14589130/ 14589130 |
| Model | SUNCARSUNCARSUNCARVO.L.VO EC210B, EC210C, EC235C, EC240B, EC240C |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
Product Description:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
- There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
- Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
- Arm cylinder is the top one, and it's usually be called as top cylinder;
- Bucket cylinder is the one that connects and controls the bucket.

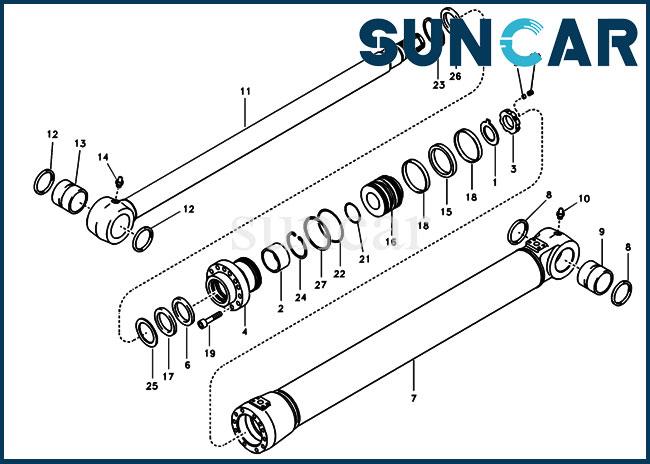

Related Parts:
| Pos. | Part No. | QTY | Parts Name |
| VOE14510811 | [1] | Boom cylinder | |
| VOE14563950 | [1] | Boom cylinder | |
| VOE14514827 | Boom cylinder | ||
| VOE14563956 | Boom cylinder | ||
| 1 | SA9216-07010 | [1] | Lock washer |
| 2 | SA9612-10540 | [1] | Bearing |
| 3 | SA1146-06900 | [1] | Lock nut |
| 4 | [1] | Head | |
| 5 | SA1146-06870 | [1] | Pad |
| 6 | SA1146-08130 | [1] | Seal |
| 7 | [1] | Tube | |
| 8 | VOE14560206 | [2] | Seal |
| 9 | SA9624-11821 | [1] | Bushing |
| VOE14511796 | Bushing | ||
| 10 | SA9481-11003 | [1] | Nipple |
| 11 | VOE14510819 | [1] | Rod |
| VOE14563954 | [1] | Rod | |
| VOE14563958 | Rod | ||
| VOE14563958 | Rod | ||
| 12 | VOE14560206 | [2] | Seal |
| VOE14560208 | Seal | ||
| 13 | SA1146-07270 | [1] | Bushing |
| VOE14514663 | Bushing | ||
| 14 | SA7281-10090 | [1] | Plug |
| 15 | VOE14508903 | [1] | Seal |
| 16 | [1] | Piston | |
| 17 | SA9563-21050 | [1] | Seal |
| 18 | SA9565-11600 | [2] | Wear ring |
| 19 | VOE949566 | [13] | Hex. socket screw |
| 20 | VOE13963059 | [1] | Set screw |
| 21 | VOE990591 | [1] | O-ring |
| 22 | VOE990652 | [1] | O-ring |
| 23 | SA9556-10500 | [1] | Retaining ring |
| 24 | SA9557-09500 | [1] | Retaining ring |
| 25 | SA9567-21050 | [1] | Back-up ring |
| 26 | SA9564-21050 | [1] | Seal |
| 27 | SA9566-31500 | [1] | Back-up ring |
| 100 | VOE14589130 | [1] | Sealing kit |
Product Show:
