VOE 14659268 VOE14659268 Dipper Arm Seal Repair Kit For Model EC350D SUNCARVO.L.VO Hydraulic Cylinder
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
VOE 14659268 VOE14659268 Dipper Arm Seal Repair Kit For Model EC350D SUNCARSUNCARSUNCARVO.L.VO Hydraulic Cylinder
| Product Name |
SUNCARSUNCARSUNCARVO.L.VO Dipper Arm Seal Repair Kit |
| Part Number | VOE14659268/ VOE 14659268/ 14659268 |
| Model | SUNCARSUNCARSUNCARVO.L.VO EC350D |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Dipper arm |

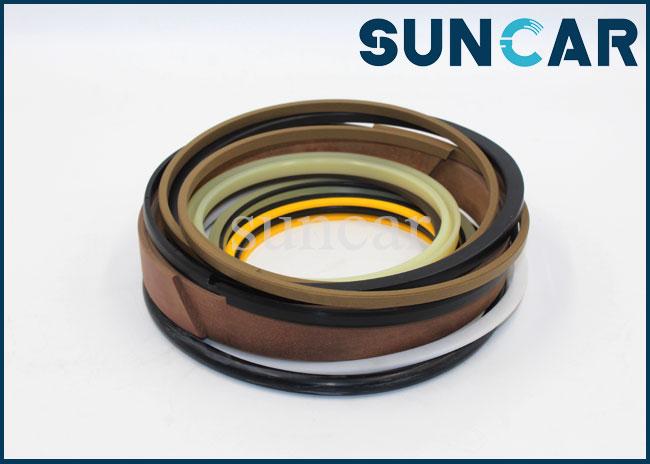

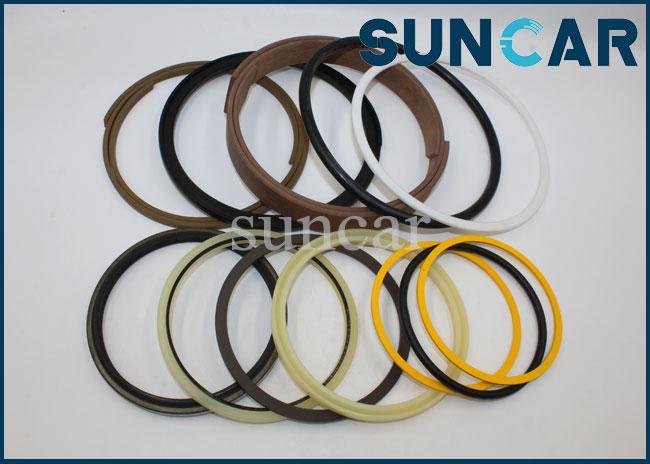

Product Show:
Our Service:
- Experienced sealing products supplier.
- Professional design team and sales department for your service.
- All the questions will be dealt in 24 hours.
- Stable quality---coming from good materials.
- Lower price---not cheapest but the lowest at the same quality.
- Good service---satisfied factory service before and after sale.
- Delivery time---7days-15days for mass production.
- Your inquiry will be replied in one working day.
The Role Of The Seal:
- Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
- Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
- Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
- Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
- Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
- (Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

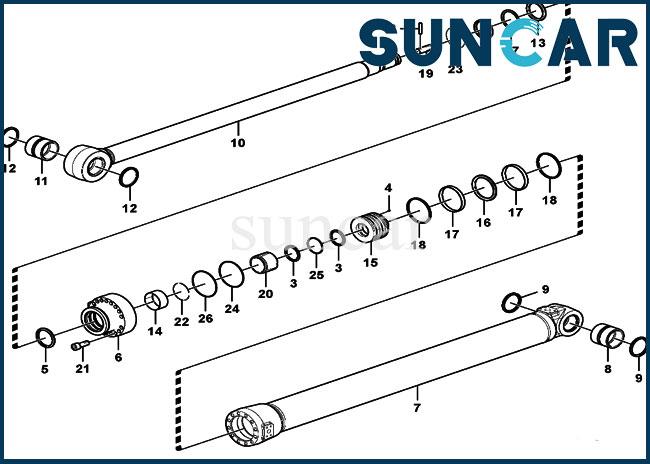

Related Parts:
| Pos. | Part No. | QTY | Parts Name |
| VOE14736351 | [1] | Dipper arm cylinder | |
| 1 | SA9564-21150 | [1] | Seal |
| 2 | VOE14595218 | [1] | Pin |
| 3 | SA9566-31020 | [2] | Back-up ring |
| 4 | VOE14883743 | [1] | Set screw |
| 5 | SA1146-08150 | [1] | Buffer Ring |
| 6 | VOE14640540 | [1] | Head |
| 7 | VOE14640535 | [1] | Tube |
| 8 | VOE14517938 | [1] | Bushing |
| 9 | VOE14560209 | [2] | Seal |
| 10 | VOE14639393 | [1] | Rod |
| 11 | VOE14517938 | [1] | Bushing |
| 12 | VOE14560209 | [2] | Seal |
| 13 | SA9567-21150 | [1] | Back-up ring |
| 14 | SA9612-11545 | [1] | Bearing |
| 15 | VOE14639412 | [1] | Piston |
| 16 | VOE14883680 | [1] | Piston seal |
| 17 | VOE14736354 | [2] | Ring |
| 18 | SA9568-01705 | [2] | Seal |
| 19 | VOE14509074 | [1] | Cushion |
| 20 | VOE14634865 | [1] | Cushion |
| 21 | VOE13947695 | [14] | Screw |
| 22 | VOE14884931 | [1] | Retaining ring |
| 23 | VOE14884917 | [1] | Retaining ring |
| 24 | VOE990653 | [1] | O-ring |
| 25 | VOE990643 | [1] | O-ring |
| 26 | VOE14882746 | [1] | Back-up ring |
| 27 | VOE14883555 | [1] | Sealing |
| 100 | VOE14659268 | [1] | Sealing kit |
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
