Doosan Main Pump Repair Kit 2401-9233KT BODY REGU Seal Kit For SOLAR 290LC-V SOLAR 330LC-V Excavator
Price:
Negotiable
MOQ:
Trial order acceptable
Delivery Time:
5-7 work days
Brand:
SUNCAR
Product Description

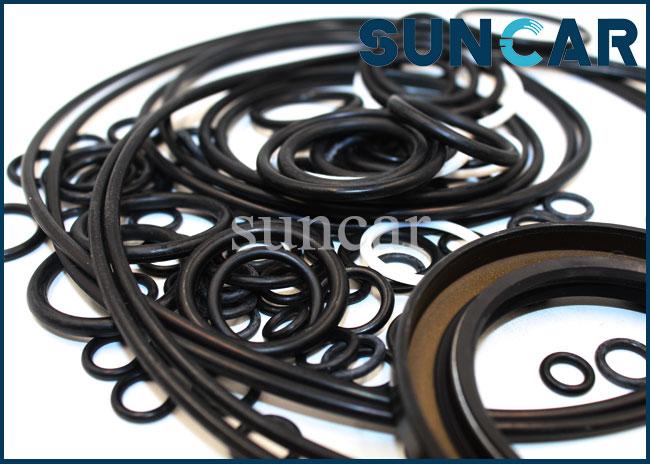

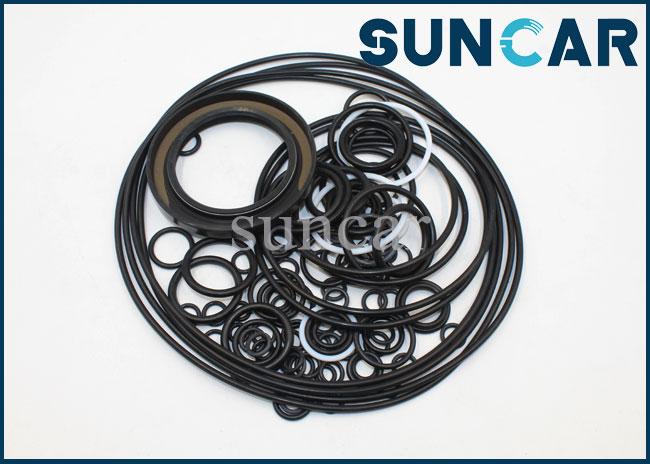

Doosan Main Pump Repair Kit 2401-9233KT BODY REGU Seal Kit For SOLAR 290LC-V SOLAR 330LC-V Excavator
| Product Name | Main Pump Repair Kit |
| Part Number | 2401-9233KT, 24019233KT |
| Model | DOOSAN SOLAR 290LC-V, SOLAR 290LL, SOLAR 330LC-V |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Main pump seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Doosan main pump |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Related Parts:

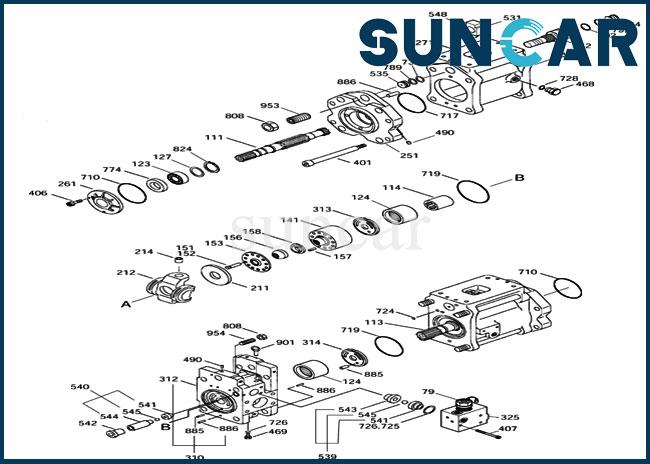

| Pos. | Part No. | QTY | Parts Name |
| *. | 2401-9233KT | [1] | SEAL KIT;BODY+REG. |
| -. | 2401-9233A | [1] | MAIN PUMP |
| -. | 716243 | [1] | PUMP BODY ASSEMBLY |
| -. | 704527-PH | [1] | CYLINDER ASSEMBLY(RH) |
| -. | 704529-PH | [1] | CYLINDER ASSEMBLY(LH) |
| -. | 704528A | [2] | PISTON ASSEMBLY |
| -. | 717010 | [2] | SWASH PLATE ASSEMBLY |
| -. | 717007 | [2] | TILTING PIN ASSEMBLY |
| -. | 2401-9233 | [1] | MAIN PUMP |
| 111 | 113682A | [1] | SHAFT;DRIVING(FRONT) |
| 113 | 120415 | [1] | SHAFT;DRIVING(REAR) |
| 114 | 113710 | [1] | COUPLING;SPLINE |
| 123 | 212283 | [2] | BEARING;ROLLER |
| 124 | 212285 | [2] | BEARING;NEEDLE |
| 127 | 113683 | [4] | SPACER;BEARING |
| 141 | 128047B | [1] | BLOCK;CYLINDER |
| 141 | 128047B | [1] | BLOCK;CYLINDER |
| 151 | 113697A | [18] | PISTON |
| 152 | 113698A | [18] | SHOE |
| 153 | 113692 | [2] | PLATE;PUSH |
| 156 | 113693 | [2] | BUSH;SPHERICAL |
| 157 | 113695 | [18] | SPRING;CYLINDER |
| 158 | 113694 | [2] | SPACER |
| 211 | 113691 | [2] | PLATE;SHOE |
| 212 | 113690 | [1] | PLATE;SWASH |
| 214 | 113625 | [1] | BUSH;TILTING |
| 251 | 113689 | [2] | SUPPROT |
| 261 | 113681 | [1] | COVER;SEAL(F) |
| 271 | 113696 | [2] | CASING;PUMP |
| 310 | 707451 | [1] | VALVE BLOCK ASSEMBLY |
| 312 | 113701A | [1] | BLOCK;VALVE |
| 313 | 113700 | [1] | PLATE;VALVE |
| 314 | 113711 | [1] | PLATE;VALVE |
| 325 | 120592 | [1] | CASING;VALVE |
| 401 | 113714 | [8] | BOLT;SOCKET M20X2.5X235 |
| 406 | 200848 | [4] | BOLT;SOCKET M8X1.25X30 |
| 407 | 200838 | [3] | BOLT;SOCKET M6X1.0X65 |
| 468 | 108847 | [3] | PLUG;VP |
| 469 | 108848 | [2] | PLUG PF1/8 |
| 490 | 211665 | [23] | EXPANDER |
| 531 | 113685 | [1] | PIN;TILTING |
| 532 | 113687 | [2] | PISTON;SERVO |
| 534 | 113684 | [2] | STOPPER(L) |
| 535 | 113688 | [2] | STOPPER(S) |
| 539 | 704550A | [1] | CHECK 1 ASSEMBLY |
| 540 | 704544A | [1] | CHECK 2 ASSEMBLY |
| 541 | 113706 | [4] | SEAT |
| 542 | 113704 | [2] | SPACER |
| 543 | 113705 | [2] | STOPPER 1 |
| 544 | 113703 | [2] | STOPPER 2 |
| 545 | 200166 | [4] | BALL;STEEL |
| 548 | 113380 | [1] | PIN;FEEDBACK |
| 702 | 201662 | [2] | O-RING 1BG40 |
| 710 | 201631 | [2] | O-RING 1BG105 |
| 717 | 212281 | [2] | O-RING |
| 719 | 212284 | [2] | O-RING |
| 724 | 201765 | [16] | O-RING 1BP8 |
| 725 | 201689 | [2] | O-RING 1BP11 |
| 726 | S8000145 | [3] | O-RING 1BP14 |
| 728 | 201721 | [3] | O-RING 1BP24 |
| 732 | 201716 | [2] | O-RING 1BP21 |
| 774 | 212232 | [1] | SEAL;OIL |
| 789 | 200091 | [2] | RING;BACK-UP |
| 79 | 707847 | [1] | VALVE;ELECTRO PROPORTIONAL |
| 792 | 200071 | [2] | RING;BACK-UP |
| 808 | 102048 | [2] | NUT M20 |
| 824 | 212282 | [2] | RING;SNAP |
| 885 | 113715 | [2] | PIN |
| 886 | 200678 | [4] | PIN;SPRING |
| 901 | 212286 | [2] | BOLT;EYE |
| 953 | 212280 | [2] | SCREW;SET |
| 954 | 113702 | [2] | SCREW;ADJUST |
