PC238USLC-11 PC210LC-10 Excavator 707-99-50520 Komatsu Arm Cylinder Service Kit Replacement Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
PC238USLC-11 PC210LC-10 Excavator 707-99-50520 Komatsu Arm Cylinder Service Kit Replacement Kit
| Product Name | Arm Cylinder Service Kit |
| Part Number | 707-99-50520, 7079950520 |
| Model | KOMATSU PC200-8M0, PC200LC-8M0, HB205-1M0, HB215LC-1M0, PC210-10, PC210LC-10, PC238USLC-11, PC210LL-10, PC228USLC-11, PC228US-11, HB215LC-2 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
| Rod | 95 MM |
| Bore | 135 MM |
| Cylinder No. | 707-E1-01430 |
Our Product Range:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit
Seal ClassifiC.A.Tion:
- According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
Related Parts:
| Pos. | Part No. | Parts Name | QTY. |
| K10 | 707-99-50520 | Seal Kit, Arm Cylinder | |
| 07000-13030 | • O-ring | 1 | |
| 07000-B5085 | • O-ring | 1 | |
| 07000-B5125 | • O-ring | 2 | |
| 07002-12034 | • O-ring | 1 | |
| 07145-00080 | • Seal, Dust | 4 | |
| 707-35-30850 | • Ring, Back-up | 2 | |
| 707-35-31260 | • Ring, Back-up | 3 | |
| 707-39-13530 | • Ring, Wear | 2 | |
| 707-44-13250 | • Ring, Piston | 1 | |
| 707-51-95650 | • Ring, Buffer | 1 | |
| 707-51-95860 | • Packing, Rod | 1 | |
| 707-56-95740 | • Seal, Dust | 1 |

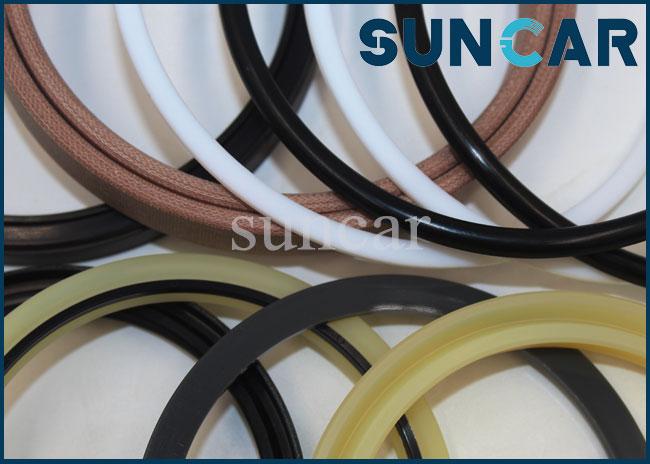

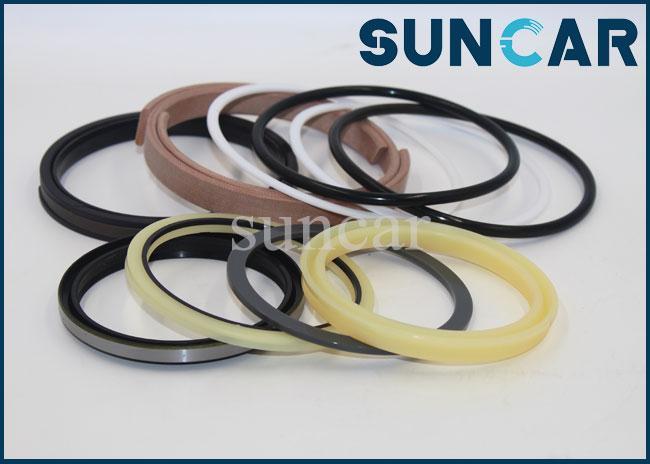

Product Show:
