Swing Cylinder Seal Kit 707-98-14740 Excavator Service Kit For Komatsu PC20MR-1 PC20MRX-1 PC20R-8
Price:
Negotiation
MOQ:
Acceptable trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

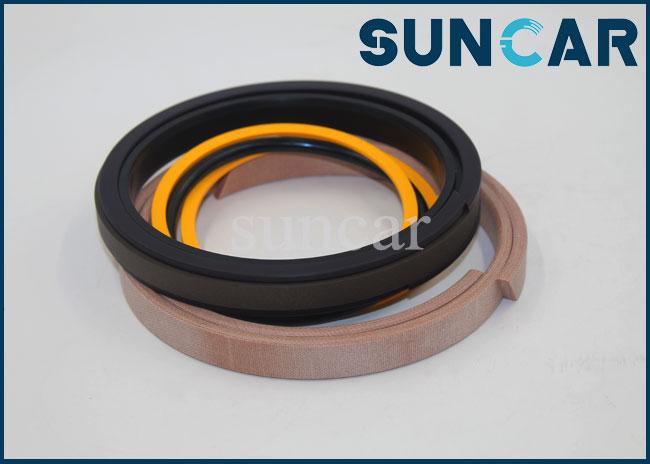

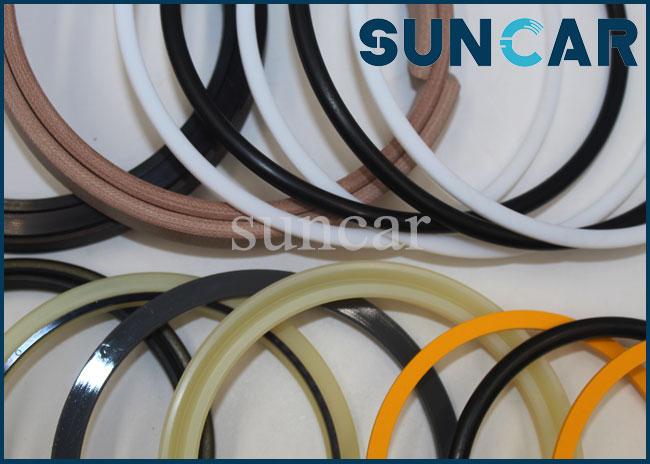

Swing Cylinder Seal Kit 707-98-14740 Excavator Service Kit For Komatsu PC20MR-1 PC20MRX-1 PC20R-8
| Product Name | Swing Cylinder Seal Kit |
| Part Number | 707-98-14740, 7079814740 |
| Model | KOMATSU PC20MR-1, PC20MRX-1, PC20R-8 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Swing |
| Rod | 40 MM |
| Bore | 70 MM |
Seal ClassifiC.A.Tion:
- According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
Product C.A.Tegories:
| Hydraulic cylinder seal kit | Center joint seal kit |
| Transmission Seal Kit | Control valve seal kit |
| breaker hammer seal kit | Hydraulic pump seal kit |
| Travel motor seal kit | Main pump seal kit |
| Swing motor seal kit | Gear pump seal repair kit |
| Adjuster seal kit | Pilot valve seal kit |
| O-ring kit box | Hydraulic seal |
| Pump gasket | Regulator valve seal kit |
Related Parts:
| Pos. | Part No. | Parts Name | QTY. |
| 22K-63-02161 | CYLINDER ASSEMBLY,(FOR CAB) | 1 | |
| 1 | 22K-63-86241 | • CYLINDER,(FOR CAB) | 1 |
| 2 | 707-76-40470 | • BUSHING | 1 |
| 3 | 707-77-40020 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-29-70260 | • HEAD,CYLINDER | 1 |
| 5 | 707-51-40210 | • PACKING,ROD (KIT) | 1 |
| 6 | 198-63-75190 | • SEAL,DUST (KIT) | 1 |
| 7 | 07179-12052 | • RING,SNAP | 1 |
| 8 | 07000-12065 | • O-RING (KIT) | 1 |
| 9 | 07146-02066 | • RING,BACK-UP (KIT) | 1 |
| 10 | 07000-12070 | • O-RING (KIT) | 1 |
| 11 | 22K-63-86120 | • ROD,PISTON | 1 |
| 12 | 707-76-40470 | • BUSHING | 1 |
| 13 | 707-77-40020 | • SEAL,DUST (KIT) | 2 |
| 14 | 707-36-70270 | • PISTON | 1 |
| 15 | 707-44-70180 | • RING,PISTON (KIT) | 1 |
| 16 | 07156-00710 | • RING,WEAR (KIT) | 1 |
| 17 | 01580-03024 | • NUT | 1 |
| SERVICE KIT | |||
| KIT | 707-98-14740 | SERVICE KIT,SWING CYLINDER | 1 |
Product Show:
