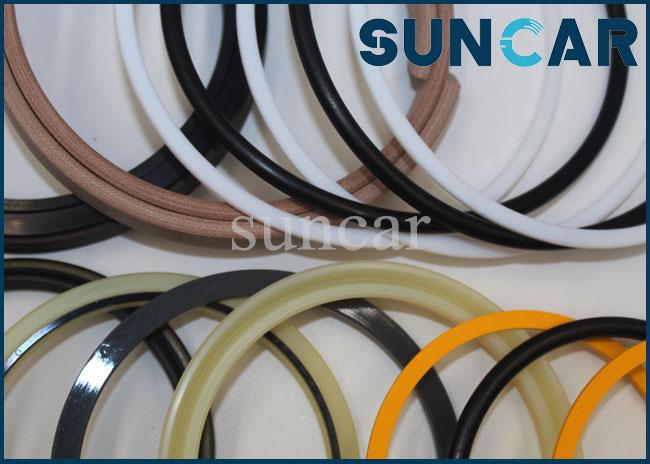

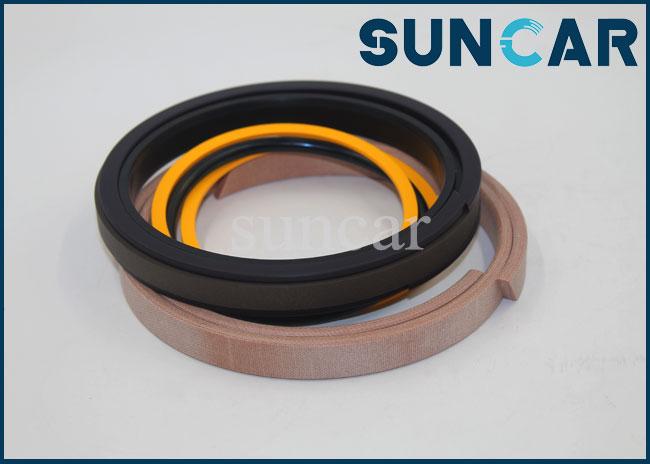

707-98-14790 Boom Swing Cylinder Seal Kit For Komatsu PC20MR-2 PC26MR-3 Replacement Kits
707-98-14790 Boom Swing Cylinder Seal Kit For Komatsu PC20MR-2 PC26MR-3 Replacement Kits
| Product Name | Boom Swing Cylinder Seal Kit |
| Part Number | 707-98-14790, 7079814790 |
| Model | KOMATSU PC20MR-2, PC20MR-2-A, PC20MR-2-B, PC26MR-3 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom swing |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Other Products We Can Offer You:
Oil Seal
O-Ring
Loader Seal Kit
Floating Seal
Hydraulic Breaker Seal Kit
Excavator Hydraulic Parts
Control Valve Seal Kit
Swing Motor Seal Kit
Crankshaft Rear Seal
Crankshaft Front Seal
Track Adjuster Seal Kit
Center Joint Seal Kit
(Main) Control Valve Seal Kit
Blade Lift/Tilt/Steering Cylinder Kit
Related Parts:
| Pos. | Part No. | Parts Name | QTY. |
| 707-00-0Y760 | CYLINDER ASSEMBLY,BOOM SWING (FINAL COATING) | 1 | |
 |
707-00-0F770 | CYLINDER ASSEMBLY,BOOM SWING | |
| 1 | 721-11-70990 | • CYLINDER | 1 |
| 2 | 02896-11008 | • O-RING (KIT) | 2 |
| 3 | 707-76-40470 | • BUSHING | 1 |
| 4 | 707-77-40020 | • SEAL (KIT) | 1 |
| 5 | 707-29-70831 | • HEAD,CYLINDER | 1 |
| 6 | 07177-04025 | • BUSHING | 1 |
| 7 | 707-51-40210 | • PACKING,ROD (KIT) | 1 |
| 8 | 198-63-75190 | • SEAL,DUST (KIT) | 1 |
| 9 | 07179-12052 | • RING,SNAP | 1 |
| 10 | 07000-12065 | • O-RING (KIT) | 1 |
| 11 | 07146-02066 | • RING,BACK-UP (KIT) | 1 |
| 12 | 07000-12070 | • O-RING (KIT) | 1 |
| 13 | 707-58-40E70 | • ROD,PISTON | 1 |
| 14 | 707-76-40470 | • BUSHING | 1 |
| 15 | 707-77-40020 | • SEAL,DUST (KIT) | 2 |
| 16 | 707-36-70270 | • PISTON | 1 |
| 17 | 707-44-70180 | • RING,PISTON (KIT) | 1 |
| 18 | 07156-00710 | • RING,WEAR (KIT) | 1 |
| 19 | 707-67-30030 | • NUT | 1 |
| SERVICE KIT | |||
| KIT | 707-98-14790 | SERVICE KIT,BOOM SWING CYLINDER | 1 |
Product Show:
