China Hyundai Boom Cylinder Service Kit 31Y1-28960 R210W-9 R210NLC-9 Excavator Replacement Kits for sale

Hyundai Boom Cylinder Service Kit 31Y1-28960 R210W-9 R210NLC-9 Excavator Replacement Kits

Name: Hyundai Boom Cylinder Service Kit 31Y1-28960 R210W-9 R210NLC-9 Excavator Replacement Kits
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Trial order acceptable

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

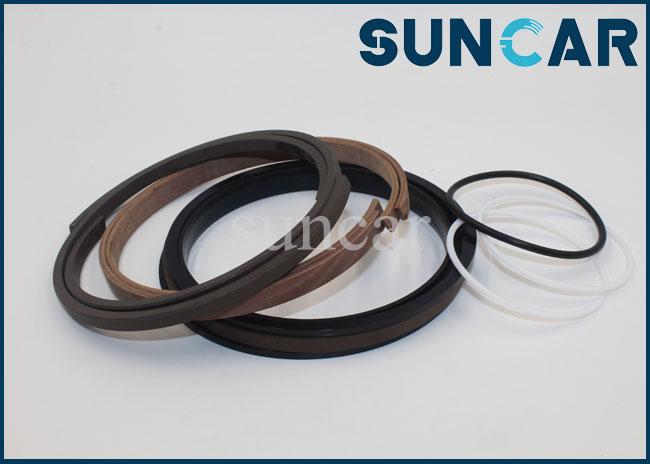

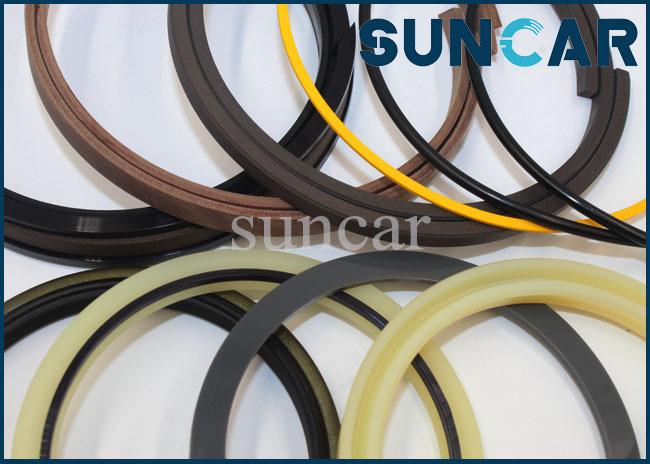

Hyundai Boom Cylinder Service Kit 31Y1-28960 R210W-9 R210NLC-9 Excavator Replacement Kits

Product Name	Boom Cylinder Service Kit
Part Number	31Y1-28960, 31Y128960
Model	HYUNDAI 9-Series Crawler Excavator R210LC-9, R210LC-9BC, R210LC-9BH, R210NLC-9, R220LC-9S(BRAZIL), R220LC-9S, R220LC-9SH, R220LC-9A, R220NLC-9A, R235LCR-9, R235LCR-9A, RB220LC-9S; 9-Series Wheel Excavator R210W-9, R210W-9A, R210W9AMH, R210W9-MH, R210W-9S; F-Series Crawler Excavator HX220L, HX220NL, HX235L; F-Series Wheel Excavator HW210
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic cylinder seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High sealing performance/ wear resistance
AppliC.A.Tion	Boom
Rod	85 MM
Bore	120 MM

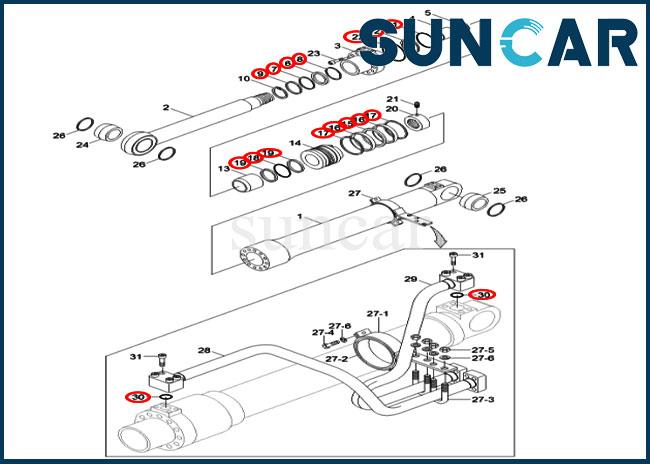

Related Parts:

Pos.	Part No	Product Name	Qty
*.	31Q6-53110	BOOM CYLINDER ASSY-LH	[1]
*.	31Q6-53410	BOOM CYLINDER ASSY-LH	[1]
*.	31Q6-53120	BOOM CYLINDER ASSY-RH	[1]
*.	31Q6-53420	BOOM CYLINDER ASSY-RH	[1]
*-1.	31Y1-36320	BOOM CYL SUB ASSY	[1]
*-1.	31Y1-39880	BOOM CYL SUB ASSY	[1]
1	31Y1-36190	TUBE ASSY	[1]
1	31Y1-39790	TUBE ASSY	[1]
2	31Y1-28870	ROD ASSY	[1]
2	31Y1-39830	ROD ASSY	[1]
3	31Y1-36230	GLAND	[1]
4	S732-085030	BUSHING-DD2	[1]
5	Y191-092000	RING-SNAP	[1]
K6.	Y220-085013	SEAL-ROD	[1]
K7.	Y180-085020	RING-BACK UP	[1]
K8.	Y240-085012	RING-BUFFER	[1]
K9.	Y110-085011	WIPER-DUST	[1]
10	Y190-099000	RING-SNAP	[1]
K11.	S632-115004	O-RING	[1]
K12.	S642-115003	RING-BACK UP	[1]
13	31YC-26060	RING-CUSHION	[1]
14	31Y1-28940	PISTON	[1]
K15.	Y420-120000	SEAL-PISTON	[1]
K15.	Y420-120002	SEAL-PISTON	[1]
K16.	Y310-120203	RING-WEAR	[2]
K17.	Y440-120002	RING-DUST	[2]
K17.	Y440-120000	RING-DUST	[2]
K18.	S632-060004	O-RING	[1]
K19.	S642-060003	RING-BACK UP	[2]
20	31YC-68030	NUT-LOCK	[1]
21	S114-080144	SCREW-SET	[1]
K22.	S632-120004	O-RING	[1]
23	S109-160754	BOLT-SOCKET	[12]
24	61Q6-97210	BUSHING-PIN	[1]
24	61Q6-97211	BUSHING-PIN	[1]
24	61QH-73010	BUSHING-PIN	[1]
25	61Q6-97220	BUSHING-PIN	[1]
25	61Q6-97221	BUSHING-PIN	[1]
25	61QH-73020	BUSHING-PIN	[1]
26	Y020-080000	SEAL-DUST,DLI,KPU	[4]
27	31Y1-36240	BAND ASSY	[1]
27-1.	31Y1-29240	BAND SUB ASSY	[1]
27-2.	31YC-31480	BAND	[1]
27-3.	S070-052738	U-BOLT	[2]
27-4.	S011-100352	BOLT-HEX	[2]
27-5.	S205-101002	NUT-HEX	[4]
27-6.	S411-100002	WASHER-SPRING	[6]
28	31Y1-36260	PIPE ASSY-R,LH	[1]
28	31Y1-43280	PIPE ASSY-R,LH	[1]
28	31Y1-36270	PIPE ASSY-R,RH	[1]
28	31Y1-43290	PIPE ASSY-R,RH	[1]
29	31Y1-36280	PIPE ASSY-B,LH	[1]
29	31Y1-36290	PIPE ASSY-B,RH	[1]
K30.	Y171-019004	O-RING	[2]
31	S107-100454	BOLT-SOCKET	[8]
K.	31Y1-28960	SEAL KIT	[1]
