Komatsu 7079976160 Arm Cylinder Repair Seal Kit 707-99-76160 For PC220LL-8 PC240LL-10 PC290LL-11
Price:
Negotiation
MOQ:
Acceptable trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Komatsu 7079976160 707-99-76160 For PC220LL-8 PC240LL-10 PC290LL-11 Arm Cylinder Repair Seal Kit
| Products Name | 707-99-76160 Arm Cylinder Repair Seal Kit |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type | Komatsu Excavator Replacement Parts |
| Model Number | PC220LL-8, PC240LL-10, PC290LL-11 |
| Payment Terms | Western Union, L/C, T/T, Transfer |
| Supply Ability | 30000 Piece/Pieces per Month |
| MOQ | 1 SET(negotiation) |
| Feature | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name | Suncar/ OEM |
| CertifiC.A.Tion | ISO9001:2000 |
| Shipping Mode | By air, by sea ,by express (DHL, Fedex, UPS ,TNT etc.) |
| Size | Standard Size |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder

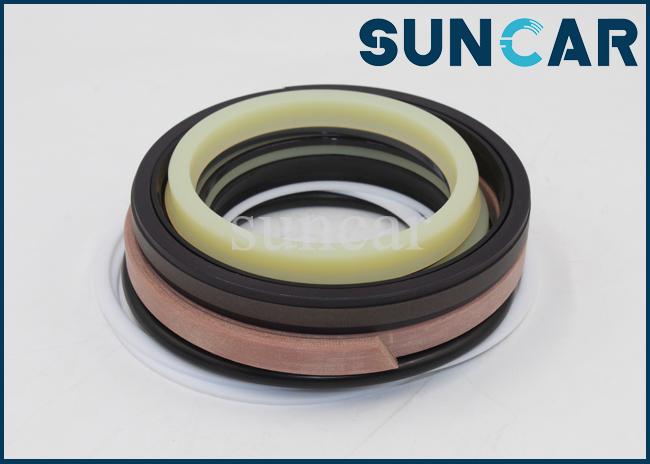

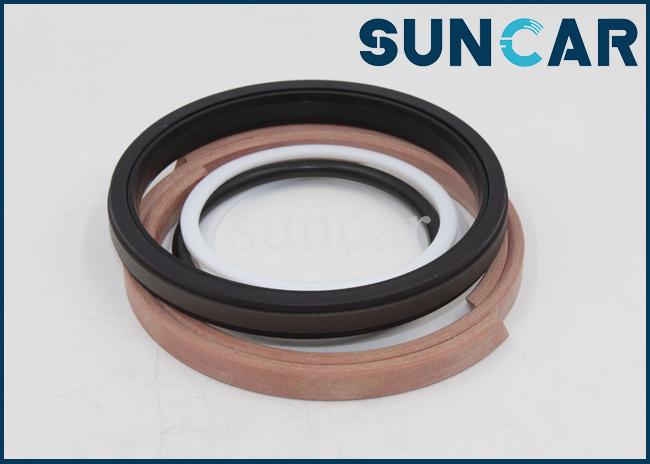

Product Show:
Related Part:
| POS. | Number | Name | Qty. |
| 707-01-0L330 | CYLINDER ASSEMBLY | 1 | |
| 1 | 707-13-18060 | • CYLINDER | 1 |
| 2 | 707-76-11130 | • BUSHING | 2 |
| 3 | 07145-00110 | • SEAL, DUST | 2 |
| 4 | 707-58-12740 | • ROD | 1 |
| 5 | 707-76-11130 | • BUSHING | 2 |
| 6 | 07145-00110 | • SEAL, DUST | 2 |
| 7 | 707-71-31690 | • COLLAR | 1 |
| 8 | 707-35-91840 | • RING, BACK-UP | 2 |
| 9 | 07000-15175 | • O-RING | 1 |
| 10 | 707-71-61330 | • PLUNGER | 1 |
| 11 | 707-71-70340 | • PLUNGER | 1 |
| 12 | 04260-00952 | • BALL | 11 |
| 13 | 707-71-91230 | • CAP | 1 |
| 14 | 707-27-18930 | • HEAD | 1 |
| 15 | 195-63-93170 | • SEAL, DUST | 1 |
| 16 | 07179-13136 | • RING, SNAP | 1 |
| 17 | 707-52-90980 | • BUSHING | 1 |
| 18 | 707-51-12030 | • PACKING, ROD | 1 |
| 19 | 707-51-12640 | • RING, BUFFER | 1 |
| 20 | 707-35-91840 | • RING, BACK-UP | 1 |
| 21 | 07000-15175 | • O-RING | 1 |
| 22 | 01011-82400 | • BOLT | 12 |
| 23 | 707-88-75410 | • WASHER | 12 |
| 24 | 707-36-18520 | • PISTON | 1 |
| 25 | 01310-01225 | • SCREW | 1 |
| 26 | 707-44-18280 | • RING, PISTON | 1 |
| 27 | 707-39-18510 | • RING, WEAR | 4 |
| 28 | 707-44-18920 | • RING | 2 |
| 29 | 07001-05110 | • RING, BACK-UP | 2 |
| 30 | 07000-15110 | • O-RING | 1 |
| 31 | 707-86-68440 | TUBE | 1 |
| 32 | 707-86-13870 | TUBE | 1 |
| 33 | 07372-51045 | BOLT | 2 |
| 34 | 07372-51060 | BOLT | 2 |
| 35 | 01643-51032 | WASHER | 4 |
| 36 | 07000-13030 | O-RING | 1 |
| 37 | 07372-21060 | BOLT | 4 |
| 38 | 01643-51032 | WASHER | 4 |
| 39 | 07000-13035 | O-RING | 1 |
| 40 | 707-88-50060 | BRACKET | 1 |
| 41 | 707-88-21880 | BAND | 1 |
| 42 | 707-88-50070 | BRACKET | 1 |
| 43 | 707-88-26120 | BAND | 1 |
| 44 | 07372-21240 | BOLT | 6 |
| 45 | 01643-51232 | WASHER | 6 |
| 46 | 07283-32738 | U-BOLT | 2 |
| 47 | 07283-33442 | U-BOLT | 1 |
| 48 | 01643-31032 | WASHER | 6 |
| 49 | 01597-01009 | NUT | 6 |
| 50 | 707-88-33040 | HEAD | 1 |
| 51 | 07371-31049 | FLANGE, SPLIT | 2 |
| 52 | 07372-21035 | BOLT | 4 |
| 53 | 01643-51032 | WASHER | 4 |
| 54 | 707-88-33030 | HEAD | 1 |
| 55 | 07371-30640 | FLANGE, SPLIT | 2 |
| 56 | 07372-21035 | BOLT | 4 |
| 57 | 01643-51032 | WASHER | 4 |
| 707-99-76160 | KIT, SERVICE | 1 |
