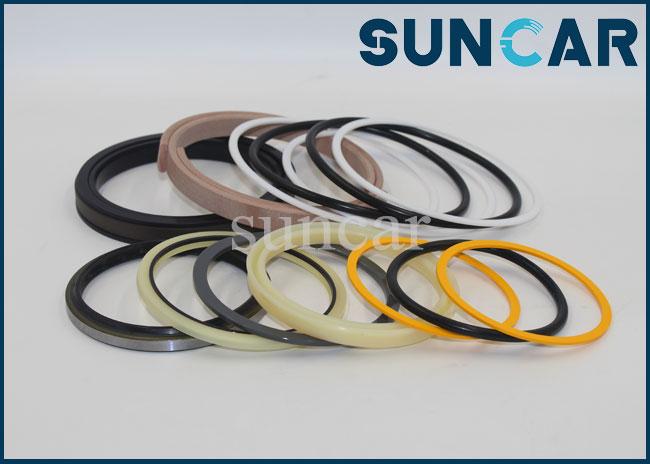

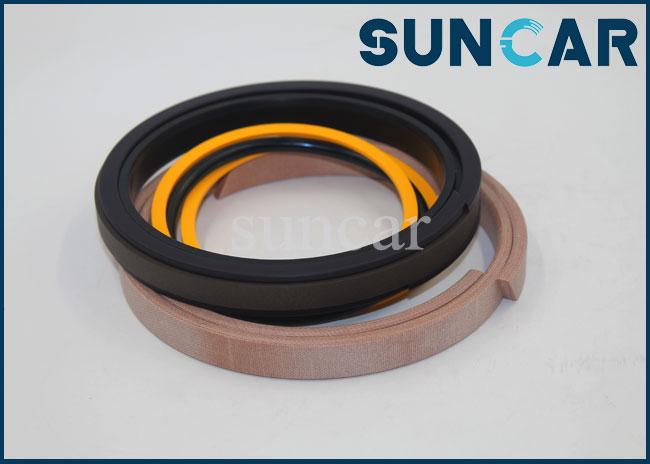

20S-63-02011 Boom Cylinder Seal Repair Kit 20S6302011 For PC30-6 Komatsu Cab Service Parts
20S-63-02011 Boom Cylinder Seal Repair Kit 20S6302011 For PC30-6 Komatsu Cab Service Parts
| Product Name | Boom Cylinder Seal Repair Kit |
| Part Number | 20S-63-02011, 20S6302011 |
| Model | KOMATSU PC30-6 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
Product Show:
Competitive Advantage:
1. Excellent product quality control;
2. Reasonable market price;
3. Small orders, delivered on time;
4. Customer-focused organization;
5. Smooth and fast communiC.A.Tion;
6. Practice teamwork;
7. Committed to doing consumer trust products.
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Related Parts:
| Pos. | Part No | Product Name | Qty |
| G-1 | 20S-63-X2011 | BOOM CYLINDER GROUP(FOR CAB) | 1 |
| 20S-63-02011 | CYLINDER ASSEMBLY | 1 | |
| 1 | 20S-63-56643 | • CYLINDER | 1 |
| 2 | 07144-10404 | • BUSHING | 1 |
| 3 | 07145-00040 | • SEAL | 2 |
| 4 | 07020-00000 | • FITTING | 1 |
| 5 | 707-29-80230 | • HEAD,CYLINDER | 1 |
| 6 | 07177-04530 | • BUSHING | 1 |
| 7 | 707-51-45210 | • PACKING,ROD | 1 |
| 8 | 112-63-15370 | • SEAL,DUST | 1 |
| 9 | 07179-12057 | • RING,SNAP | 1 |
| 10 | 07000-12075 | • O-RING | 2 |
| 11 | 07146-02076 | • RING,BACK-UP | 2 |
| 12 | 07000-02080 | • O-RING | 1 |
| 13 | 20S-63-56620 | • ROD,PISTON | 1 |
| 14 | 07143-10404 | • BUSHING | 1 |
| 15 | 07145-00040 | • SEAL,DUST | 2 |
| 16 | 707-71-50490 | • PLUNGER | 1 |
| 17 | 707-36-80070 | • PISTON | 1 |
| 18 | 707-44-80180 | • RING,PISTON | 1 |
| 19 | 07156-00810 | • RING,WEAR | 1 |
| 20 | 07165-12729 | • NUT | 1 |
| 21 | 20S-63-56671 | TUBE | 1 |
| 22 | 20R-63-56683 | TUBE | 1 |
| 23 | 07283-21529 | CLIP | 2 |
| 24 | 01598-00809 | NUT | 4 |
| 25 | 01643-30823 | WASHER | 4 |
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
