Boom Seal Repair Kit 707-99-58360 7079958360 PC300LC-6 PC300LC-6 Komatsu Cylinder Sealing Kit
Boom Seal Repair Kit 707-99-58360 7079958360 PC300LC-6 PC300LC-6 Komatsu Cylinder Sealing Kit
| Product Name | Boom Cylinder Seal Repair Kit |
| Part Number | 707-99-58360, 7079958360 |
| Model |
KOMATSU PC300-6, PC300-6Z, PC300LC-6, PC300LC-6Z, PC300SC-6, PC340NLC-6, PC350-6Z, PC350-6, PC350LC-6, PC350LC-6Z |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
| Rod | 100 MM |
| Bore | 140 MM |
| Cylinder No. | 207-63-02501 |

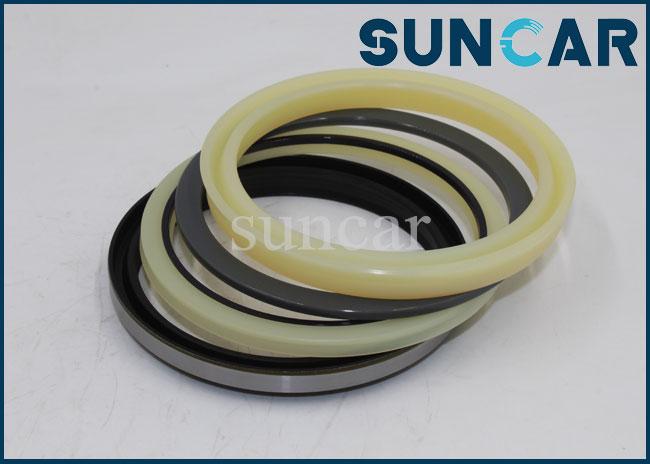

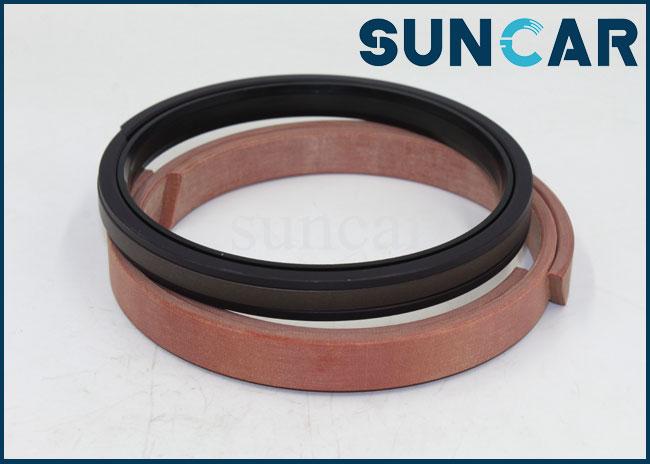

Product Show:
Related Parts:
| Pos. | Part No | Product Name | Qty |
| G-1 | 207-63-X9010 | BOOM CYLINDER GROUP,L.H. | 1 |
| G-1 | 207-63-X2501 | BOOM CYLINDER GROUP,L.H. | 1 |
| G-1 | 207-63-X9020 | BOOM CYLINDER GROUP,R.H. | 1 |
| G-1 | 207-63-X2511 | BOOM CYLINDER GROUP,R.H. | 1 |
| 207-63-02501 | BOOM CYLINDER ASSEMBLY | 1 | |
| 1 | 207-63-53541 | • CYLINDER | 1 |
| 2 | 707-76-90390 | • BUSHING | 1 |
| 3 | 07145-00090 | • SEAL,DUST (KIT) | 2 |
| 4 | 07020-00675 | • FITTING,GREASE | 1 |
| 5 | 07043-00108 | • PLUG | 1 |
| 6 | 207-63-53520 | • ROD | 1 |
| 7 | 707-76-10130 | • BUSHING | 1 |
| 8 | 07145-00100 | • SEAL,DUST (KIT) | 2 |
| 9 | 707-71-32880 | • COLLAR | 1 |
| 10 | 707-35-91420 | • RING,BACK-UP (KIT) | 2 |
| 11 | 07000-15130 | • O-RING (KIT) | 1 |
| 12 | 707-71-61060 | • PLUNGER | 1 |
| 13 | 707-27-14930 | • HEAD | 1 |
| 14 | 176-63-56170 | • SEAL,DUST (KIT) | 1 |
| 15 | 07179-13114 | • RING,SNAP | 1 |
| 16 | 707-52-90780 | • BUSHING | 1 |
| 17 | 707-51-10030 | • PACKING,ROD (KIT) | 1 |
| 18 | 707-51-10630 | • RING,BUFFER (KIT) | 1 |
| 19 | 707-35-91420 | • RING,BACK-UP (KIT) | 1 |
| 20 | 07000-15130 | • O-RING (KIT) | 1 |
| 21 | 01010-81875 | • BOLT | 12 |
| 22 | 707-41-11840 | • WASHER | 12 |
| 23 | 707-36-14410 | • PISTON | 1 |
| 24 | 01310-01216 | • SCREW | 1 |
| 25 | 707-44-14180 | • RING,PISTON (KIT) | 1 |
| 26 | 707-39-14820 | • RING,WEAR (KIT) | 2 |
| 27 | 707-44-14910 | • RING | 2 |
| 28 | 07001-05090 | • RING,BACK-UP (KIT) | 2 |
| 29 | 07000-15090 | • O-RING (KIT) | 1 |
| 30 | 207-63-53571 | TUBE,L.H. | 1 |
| 207-63-53671 | TUBE,R.H. | 1 | |
| 31 | 207-63-53181 | TUBE,L.H. | 1 |
| 207-63-53281 | TUBE,R.H. | 1 | |
| 32 | 01435-01055 | BOLT | 8 |
| 33 | 07000-13035 | O-RING (KIT) | 2 |
| 34 | 707-88-95731 | BRACKET | 1 |
| 35 | 707-88-95720 | BAND | 1 |
| 36 | 01010-81240 | BOLT | 4 |
| 37 | 01643-51232 | WASHER | 4 |
| 38 | 07283-23442 | CLIP | 1 |
| 39 | 01643-31032 | WASHER | 2 |
| 40 | 01599-01011 | NUT | 2 |
| 41 | 01010-81025 | BOLT | 2 |
| 42 | 01643-31032 | WASHER | 2 |
| 43 | 07000-13032 | O-RING | 2 |
| 44 | 07378-11000 | HEAD | 2 |
| 45 | 07371-31049 | FLANGE,SPLIT | 4 |
| 46 | 07372-21035 | BOLT | 8 |
| 47 | 01643-51032 | WASHER | 8 |
| 707-99-58360 | SERVICE KIT | 2 |
Noted:
1. Due to the variety and quantity of mechanical parts industry, the price of each of our products can not be shown very accurately. If you are interested in our products, please leave a message to us or contact us on WeChat and WhatsApp, we will give you a quotation in the first time.
2. Each product has the corresponding size and the relative model should be, so please contact us before placing orders to determine the price, quantity and style of the relevant products.All products will undergo strict inspection before shipment to ensure that the products delivered to your hands are qualified products.
