7079823810 707-98-23810 Komatsu Arm Cylinder Repair Seal kit Fits PC35MR-1 PC35MRX-1A
7079823810 707-98-23810 Komatsu Arm Cylinder Repair Seal kit Fits PC35MR-1 PC35MRX-1A
| Product Name | 7079823810, 707-98-23810 Arm Cylinder Repair Seal kit |
| Model Number |
Komatsu PC35MR-1, PC35MRX-1A, PC35R-8 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
| Brand | SUNCAR/OEM |
| MOQ | Negotiation |
| Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
| Delivery Time | Within 3 days after payment received(public holiday excluded) |
| Availability | In Stock |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
| AppliC.A.Tion | Komatsu Wheel Loader |
| Condition | 100% Brand New |
| After-sales Service | Online support |
| Related parts | Boom Cylinder Seal Kit, Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
| Supply Ability | 60000 Piece/Pieces per Month |

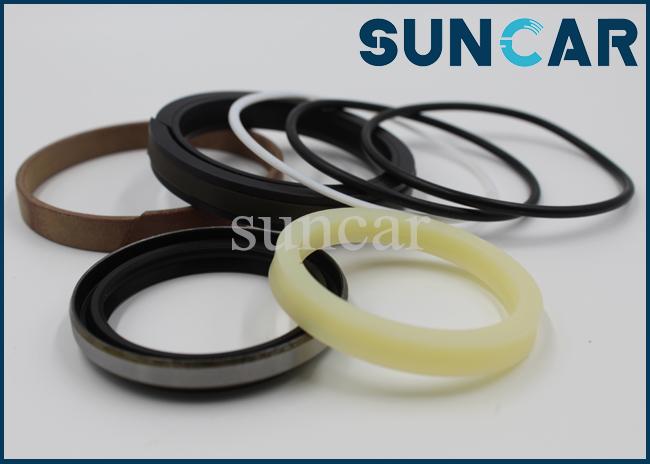

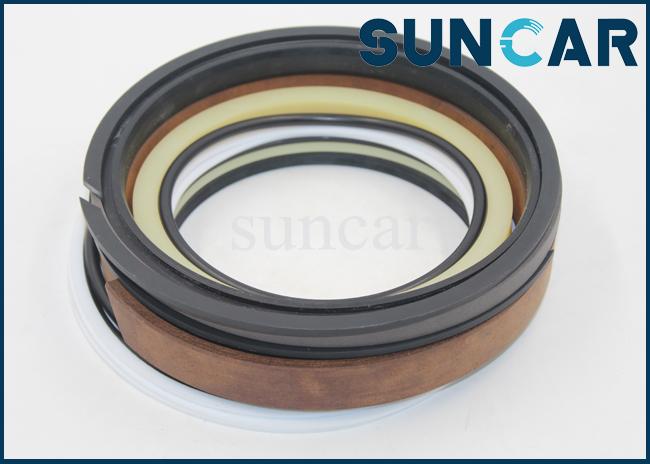

Product Show:
Oil seal is the customary name for general seals, which is simply the seal of lubriC.A.Ting oil. It is a mechanical component used to seal grease (oil is the most common liquid substance in the transmission system, and also generally refers to a general liquid substance). Oil leakage. The seals used for static seals and dynamic seals (generally reciproC.A.Ting motion) are called oil seals.
advantage:
1. The oil seal has a simple structure and is easy to manufacture. Simple oil seals can be molded at one time, even the most complex oil seals, the manufacturing process is also oil seal
Not compliC.A.Ted. Metal skeleton oil seals can also form the required oil seals from metal and rubber only through stamping, gluing, inlaying, molding and other processes.
2. The oil seal is light in weight and less consumables. Each oil seal is a combination of thin-walled metal parts and rubber parts, and its material consumption is very low, so the weight of each oil seal is very light.
3. The installation position of the oil seal is small, the axial dimension is small, it is easy to process, and the machine is compact.
4. The oil seal has good sealing performance and long service life. It has certain adaptability to the vibration of the machine and the eccentricity of the main shaft.
5. The oil seal is easy to disassemble and inspect.
6. Oil seals are cheap.
Related Part:
| POS. | Number | Name | Qty. |
| G-1 | 20S-63-X2414 | CYLINDER GROUP,ARM | 1 |
|
|
20S-63-02414 | CYLINDER ASSEMBLY,ARM | 1 |
|
1 |
20S-63-67442 | • CYLINDER | 1 |
|
2 |
707-76-40570 | • BUSHING | 1 |
|
3 |
07145-00040 | • SEAL,DUST (KIT) | 2 |
|
4 |
707-29-75010 | • HEAD,CYLINDER | 1 |
|
5 |
07177-04530 | • BUSHING | 1 |
|
6 |
707-51-45210 | • PACKING,ROD (KIT) | 1 |
|
7 |
112-63-15370 | • SEAL,DUST (KIT) | 1 |
|
8 |
07179-12057 | • RING,SNAP | 1 |
|
9 |
07000-12070 | • O-RING (KIT) | 1 |
|
10 |
707-35-52760 | • RING,BACK-UP (KIT) | 1 |
|
11 |
07000-02075 | • O-RING (KIT) | 1 |
|
12 |
20S-63-67422 | • ROD,PISTON | 1 |
|
13 |
07020-00675 | • FITTING,GREASE | 1 |
|
14 |
707-76-40610 | • BUSHING | 1 |
|
15 |
07145-00040 | • SEAL,DUST (KIT) | 2 |
|
16 |
707-36-75470 | • PISTON | 1 |
|
17 |
707-44-75180 | • RING,PISTON (KIT) | 1 |
|
18 |
707-39-75190 | • RING,WEAR (KIT) | 1 |
|
19 |
01580-03326 | • NUT | 1 |
|
20 |
07235-10315 | ELBOW | 1 |
|
21 |
07002-12034 | O-RING (KIT) | 1 |
|
22 |
20S-63-67480 | TUBE | 1 |
|
23 |
01010-81020 | BOLT | 1 |
|
24 |
01643-31032 | WASHER | 1 |
|
KIT |
707-98-23810 | SERVICE KIT,ARM CYLINDER | 1 |
