707-98-25110 7079825110 Arm Cylinder Sealing Kit Komatsu Fits PC38UU-3 Arm Cylinder Service Kit
707-98-25110 7079825110 Arm Cylinder Sealing Kit Komatsu Fits PC38UU-3 Arm Cylinder Service Kit
| Products Name | 707-98-25110 Arm Cylinder Sealing Kit |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type | Komatsu Excavator Replacement Parts |
| Model Number | Komatsu PC38UU-3 |
| Payment Terms | Western Union, Paypal, TT, Transfer |
| Supply Ability | 4000 Piece/Pieces per Month |
| MOQ | 1 SET(negotiation) |
| Feature | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name | Suncar/ OEM |
| CertifiC.A.Tion | ISO9001:2000 |
| Shipping Mode | By air, by sea ,by express (DHL, Fedex, UPS ,TNT etc.) |
| Size | Standard Size |

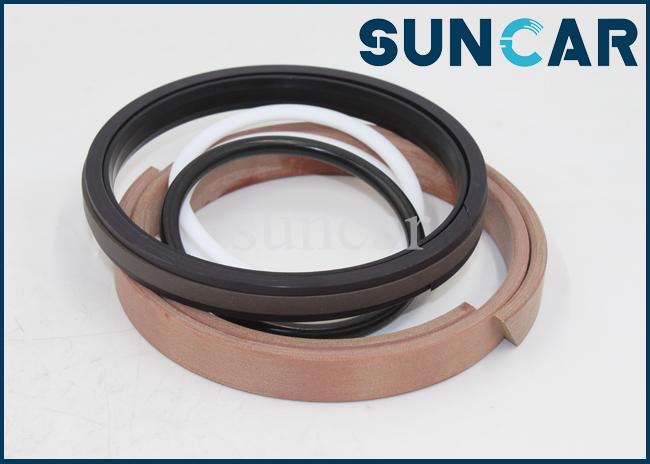

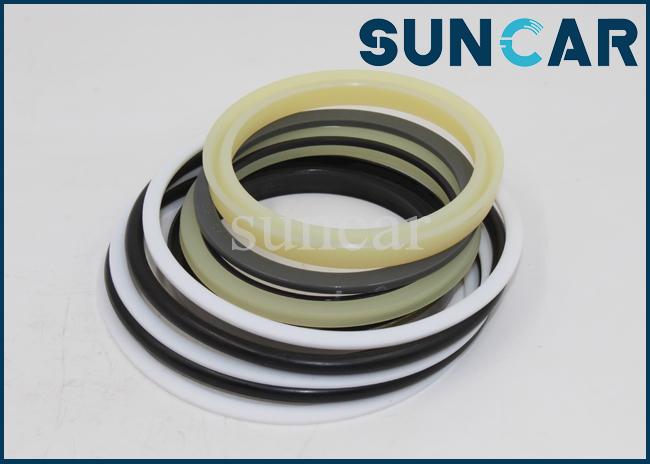

Product Show:
Related Part:
| POS. | Number | Name | Qty. |
| 2 | 707-98-25110 | SERVICE KIT,ARM CYLINDER | 1 |
| 2 | 07145-00045 | • SEAL,DUST | 4 |
| 2 | 707-51-50211 | • PACKING,ROD | 1 |
| 2 | 176-63-92240 | • SEAL,DUST | 1 |
| 2 | 07000-12075 | • O-RING | 1 |
| 2 | 07146-02076 | • RING,BACK-UP | 1 |
| 2 | 07000-02080 | • O-RING | 1 |
| 2 | 707-44-80180 | • RING,PISTON | 1 |
| 2 | 07156-00810 | • RING,WEAR | 1 |
Key points for the use of seals:
1. Select the appropriate seal material and hydraulic oil, as well as the adaptability to the working temperature and the compatibility of the oil.
2. The geometric position accuracy (concentricity) of the sliding parts relative to the seal is high, the material is good (such as hard chrome plating) and the surface roughness is fine, which can prolong the service life.
(1) For oil seals used in hydraulic pumps and motor journals, it is not only required that the roughness of the sliding surface be within Ra of 0.25m, but also that the surface should be plated with hard chrome, and the oil seal lip should be properly adjusted according to the specific situation during specific use. The radial spring force makes it moderately tight, and a mounting sleeve or a thin gasket should be used to protect the sealing ring during installation to prevent the lip from rolling and twisting, causing the spring to slip out.
(2) The inner surface of the hydraulic cylinder is usually processed by rolling, which not only improves the surface roughness, but also makes the surface hardened by cold work, which is beneficial to prolong the service life of the sealing ring. In addition, the pressure used, the length and type of the sliding surface also have a great influence on the service life. Therefore, the "regular inspection" time should be decided according to these conditions.
(3) The sealing surface is required to be well lubriC.A.Ted to prevent dirt from invading. The use of fluids that meet the specified cleanliness levels and the correct installation method are also necessary conditions.
