707-99-69585 Arm Cylinder Repair Seal Kit Wear Resistance PC400-7 PC400LC-7 Komatsu Sealing Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
707-99-69585 Arm Cylinder Repair Seal Kit Wear Resistance PC400-7 PC400LC-7 Komatsu Sealing Kit
| Product Name | Arm Cylinder Repair Seal Kit |
| Part Number | 707-99-69585, 7079969585 |
| Model | KOMATSU PC400-7, PC400LC-7 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Seal kits, seal, repair parts |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
| Rod | 130 MM |
| Bore | 185 MM |

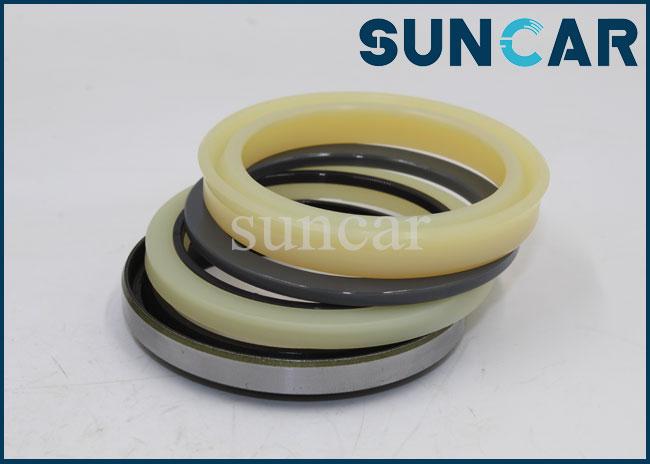

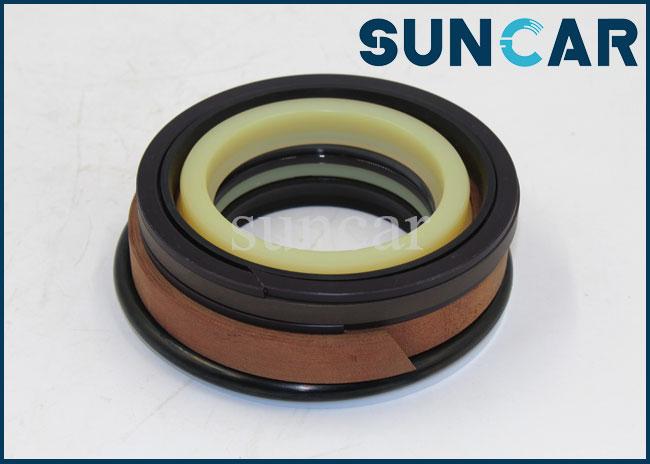

Product Show:
How To Buy:
Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.
- "Product name + part number + quantity".
- Expected packaging: general packaging or customized packaging.
Step 2: Quotation and invoice
- We will send the quotation to you as soon as possible. Once confirmed, we will issue an official invoice and provide bank information.
Step 3: Payment
- Pay to our account and send us a bank statement.
- Payment method: Western Union, T/T, Paypal, Transfer.
Step 4: Delivery
- After receiving the payment, we will arrange the goods to be delivered to your designated address in China as soon as possible.
Step 5: Receipt
- You just need to wait patiently for the goods.
Related Parts:
| Pos. | Part No | Product Name | QTY |
| G-1 | 707-01-XT852 | ARM CYLINDER GROUP,(FINAL COATING) | 1 |
| G-1 | 707-01-XT851 | ARM CYLINDER GROUP,(FINAL COATING) | 1 |
| 707-01-0H082 | CYLINDER ASSEMBLY | 1 | |
| 707-01-0H081 | CYLINDER ASSEMBLY | 1 | |
| 1 | 707-13-18760 | • CYLINDER | 1 |
| 2 | 707-76-11130 | • BUSHING | 1 |
| 3 | 07145-10110 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-58-13220 | • ROD | 1 |
| 5 | 707-76-11130 | • BUSHING | 1 |
| 6 | 07145-10110 | • SEAL,DUST (KIT) | 2 |
| 7 | 707-71-31680 | • COLLAR | 1 |
| 8 | 707-35-91840 | • RING,BACK-UP (KIT) | 2 |
| 9 | 07000-55175 | • O-RING (KIT) | 1 |
| 10 | 707-71-61430 | • PLUNGER | 1 |
| 11 | 707-71-70340 | • PLUNGER | 1 |
| 12 | 04260-00952 | • BALL | 11 |
| 13 | 707-71-91230 | • CAP | 1 |
| 14 | 707-27-18180 | • HEAD | 1 |
| 15 | 707-56-13740 | • SEAL,DUST | 1 |
| 16 | 707-88-05040 | • COLLAR,RING | 1 |
| 17 | 707-56-13820 | • SEAL,DUST (KIT) | 1 |
| 17 | 707-56-13650 | • SEAL,DUST (KIT) | 1 |
| 18 | 707-88-05030 | • RING | 1 |
| 19 | 707-88-05050 | • PLATE | 1 |
| 20 | 707-52-91071 | • BUSHING | 1 |
| 21 | 07179-13136 | • RING,SNAP | 1 |
| 22 | 707-51-13730 | • PACKING,ROD (KIT) | 1 |
| 23 | 707-51-13640 | • RING,BUFFER (KIT) | 1 |
| 24 | 707-35-91840 | • RING,BACK-UP (KIT) | 1 |
| 25 | 07000-55175 | • O-RING (KIT) | 1 |
| 26 | 01011-82425 | • BOLT | 8 |
| 27 | 01011-82430 | • BOLT | 4 |
| 28 | 707-88-75410 | • WASHER | 12 |
| 29 | 707-36-18530 | • PISTON | 1 |
| 30 | 01310-01225 | • SCREW | 1 |
| 31 | 707-44-18280 | • RING,PISTON (KIT) | 1 |
| 32 | 707-39-18510 | • RING,WEAR (KIT) | 2 |
| 33 | 707-44-18920 | • RING | 2 |
| 34 | 07001-05120 | • RING,BACK-UP (KIT) | 2 |
| 35 | 07000-55120 | • O-RING (KIT) | 1 |
| 36 | 700-11-31980 | • PLATE, NAME | 1 |
| 37 | 707-86-12590 | TUBE | 1 |
| 38 | 707-86-11610 | BLOCK | 1 |
| 39 | 707-88-02960 | PLATE | 1 |
| 40 | 07372-21060 | BOLT | 4 |
| 41 | 01643-51032 | WASHER | 4 |
| 42 | 01011-81005 | BOLT | 4 |
| 43 | 01643-51032 | WASHER | 4 |
| 44 | 07000-53035 | O-RING (KIT) | 2 |
| 45 | 707-88-25450 | BRACKET | 1 |
| 46 | 707-88-21880 | BAND | 1 |
| 47 | 07372-21240 | BOLT | 2 |
| 48 | 01643-51232 | WASHER | 2 |
| 49 | 07283-33442 | CLIP | 2 |
| 50 | 01643-31032 | WASHER | 4 |
| 51 | 01597-01009 | NUT | 4 |
| 52 | 707-88-33040 | CAP | 3 |
| 53 | 07371-31049 | FLANGE,SPLIT | 6 |
| 54 | 07372-21035 | BOLT | 12 |
| 55 | 01643-51032 | WASHER | 12 |
| 707-99-69585 | SERVICE KIT | 1 | |
| 707-99-69770 | SERVICE KIT | 1 |
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
