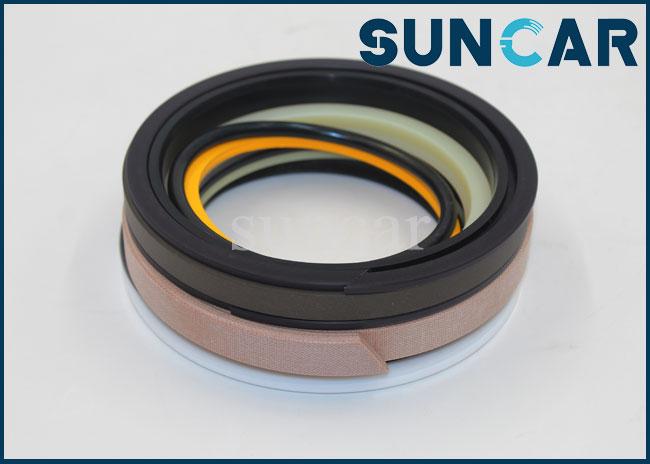

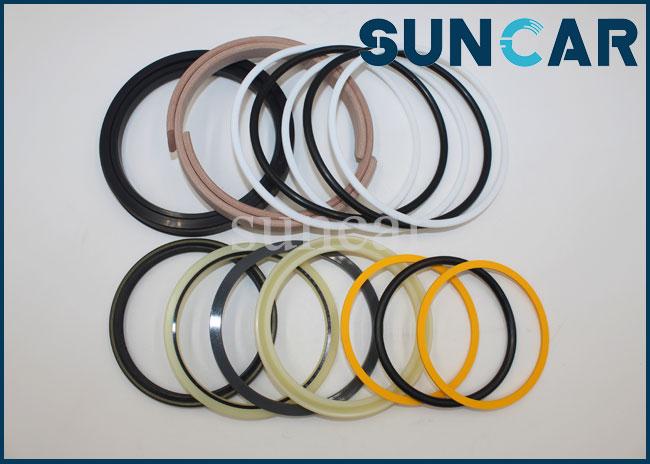

707-99-47800 7079947800 Bottom Dump Cylinder Seal Kit Service Kits Fits For PC400-7E0 PC400LC-8 Komatsu
707-99-47800 7079947800 Bottom Dump Cylinder Seal Kit Service Kits Fits For PC400-7E0 PC400LC-8 Komatsu
| Product Name | Bottom Dump Cylinder Seal Kit |
| Part Number | 707-99-47800, 7079947800 |
| Model | KOMATSU PC400-7E0, PC400-7, PC400LC-7, PC400LC-8, PC400LC-8R, PC400-8, PC400-8R |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Seal kits, seal, repair parts |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bottom Dump |
| Rod | 90 MM |
| Bore | 130 MM |
| Cylinder No. | 707-01-0G400 |
Related Parts:
| Pos. | Part No | Product Name | QTY |
| G-1 | 707-01-XT380 | CYLINDER ASSEMBLY,L.H. (FINAL COATING) | 1 |
| G-2 | 707-01-XT390 | CYLINDER ASSEMBLY,R.H. (FINAL COATING) | 1 |
| 707-01-0G400 | CYLINDER ASSEMBLY | 1 | |
| 1 | 707-13-13820 | • CYLINDER | 1 |
| 2 | 707-76-80010 | • BUSHING | 1 |
| 3 | 07145-00080 | • SEAL,DUST (KIT) | 2 |
| 4 | 07020-00000 | • FITTING,GREASE | 1 |
| 5 | 707-58-90E10 | • ROD,PISTON | 1 |
| 6 | 205-63-65271 | • BUSHING | 1 |
| 7 | 07145-00080 | • SEAL,DUST (KIT) | 2 |
| 8 | 707-27-13650 | • HEAD,CYLINDER | 1 |
| 9 | 707-52-90680 | • BUSHING | 1 |
| 10 | 707-51-90030 | • PACKING,ROD (KIT) | 1 |
| 11 | 707-51-90640 | • RING,BUFFER (KIT) | 1 |
| 12 | 707-75-90110 | • RING,SNAP | 1 |
| 13 | 195-63-94170 | • SEAL,DUST (KIT) | 1 |
| 14 | 07179-13104 | • RING,SNAP | 1 |
| 15 | 07000-15120 | • O-RING (KIT) | 1 |
| 16 | 707-35-91320 | • RING,BACK-UP (KIT) | 1 |
| 17 | 01010-81670 | • BOLT | 12 |
| 18 | 01643-51645 | • WASHER | 12 |
| 19 | 707-36-13780 | • PISTON | 1 |
| 20 | 707-44-13180 | • RING,PISTON (KIT) | 1 |
| 21 | 707-39-13150 | • RING,WEAR (KIT) | 2 |
| 22 | 707-44-13911 | • RING | 2 |
| 23 | 07000-15080 | • O-RING (KIT) | 1 |
| 24 | 707-35-90940 | • RING,BACK-UP (KIT) | 2 |
| 25 | 01310-01216 | • SCREW | 1 |
| 26 | 707-86-67280 | TUBE,L.H. | 1 |
| 26 | 707-86-67290 | TUBE,R.H. | 1 |
| 27 | 208-63-94380 | TUBE,L.H. | 1 |
| 27 | 208-63-94480 | TUBE,R.H. | 1 |
| 28 | 07372-21060 | BOLT | 4 |
| 29 | 01643-51032 | WASHER | 4 |
| 30 | 07372-21045 | BOLT | 4 |
| 31 | 01643-51032 | WASHER | 4 |
| 32 | 07000-13030 | O-RING (KIT) | 2 |
| 33 | 707-88-25820 | BRACKET | 1 |
| 34 | 707-88-87280 | BRACKET | 1 |
| 35 | 707-88-87270 | BAND | 2 |
| 36 | 07372-21035 | BOLT | 4 |
| 37 | 01643-51032 | WASHER | 4 |
| 38 | 07282-12793 | CLAMP | 2 |
| 39 | 01010-81020 | BOLT | 4 |
| 40 | 01643-31032 | WASHER | 4 |
| 41 | 707-88-33030 | CAP | 2 |
| 42 | 07371-30640 | FLANGE,SPLIT | 4 |
| 43 | 07372-21035 | BOLT | 8 |
| 44 | 01643-51032 | WASHER | 8 |
| 707-99-47800 | SERVICE KIT | 2 |
Return Policy & Feedback::
- Once you buy our item, you agree to the following return policy:
(1) We accept return, but please contact us before make the decision.
(2) We only accept exchange if the item is received incorrect or defective.
(3) Return shipping costs are the responsibility of customers.
(4) All returns must be whole and complete as shipped to the customers.
- Our duty is to provide you high quality product and service, if you are satisfied with us, please leave us a positive feedback, it’s our power to make better.
Our Product Range:
- We set up the PTFE polymer materials, PU polyurethane and NBR materials seals producing line. All sealing products are widely used in different kinds of excavator and breaker hammer installation and maintenance systems, wining high reputation from the customers at home and abroad. Our factory :The following seal kits we also can supply:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit
A. Hammer Seal Kit For:
Hydraulic breaker seals and seal kits suitable for BELITE, KONAN, NPK, GIANT, KRUPP, TOYO, KOMAC, SADVIK, FINE, HANWOO, KOMATSU, OKADA, KWANGKIM, TOKU, SOOSAN, POWERKING, EDT, HM, MONTABERT, MSB, DAEMO, RAMMER , etc.
