R130LC R130LC-3 Hyundai 31Y1-03860 Bucket Cylinder Seal Kit Fits Excavator Wearing Resistance Kits
Price:
Negotiation
MOQ:
Acceptable trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

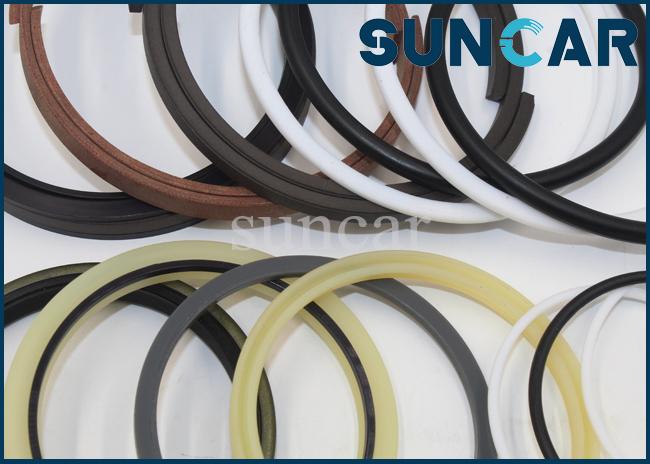

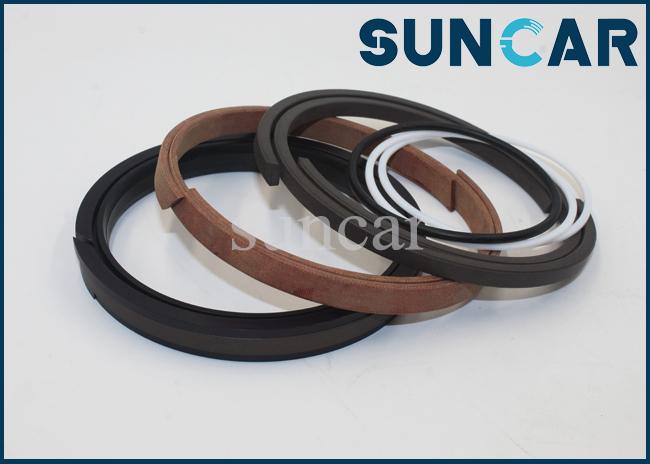

R130LC R130LC-3 Hyundai 31Y1-03860 Bucket Cylinder Seal Kit Fits Excavator Wearing Resistance Kits
| Product Name | Bucket Cylinder Seal Kit |
| Part Number | 31Y1-03860, 31Y103860 |
| Model | HYUNDAI R130LC, R130LC-3 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |

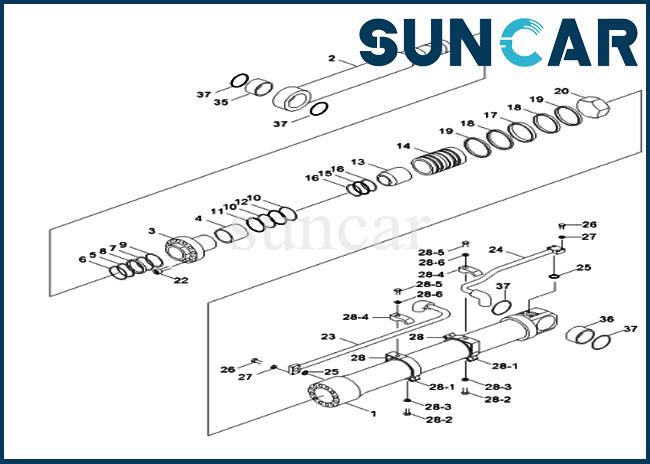

Product Show:
| Pos. | Part No | Product Name | QTY |
| *. | 31E6-50240 | CYLINDER ASSEMBLY | [1] |
| 1 | HC218-100-00 | TUBE ASSY | [1] |
| 2 | 31Y1-03770 | ROD ASSY | [1] |
| 3 | HC218-300-00 | GLAND | [1] |
| 4 | S731-070040 | BUSHING-DU | [1] |
| 5 | Y190-084000 | RING-SNAP | [1] |
| K6. | Y110-070011 | WIPER-DUST | [1] |
| K7. | Y180-070020 | RING-BACK UP | [1] |
| K8. | Y200-070011 | SEAL-ROD | [1] |
| K9. | Y260-070000 | SEAL-STEP | [1] |
| K10. | S631-095004 | O-RING | [2] |
| K11. | S641-095002 | RING-BACK UP | [1] |
| K12. | S641-095003 | RING-BACK UP | [1] |
| 13 | HC016-541-03 | RING-CUSHION | [1] |
| 14 | 31Y1-03810 | PISTON | [1] |
| K15. | S632-060004 | O-RING | [1] |
| K16. | S642-060003 | RING-BACKUP,O-RING | [2] |
| K17. | Y420-100000 | SEAL-PISTON | [1] |
| K18. | Y310-100200 | RING-WEAR | [2] |
| K19. | Y440-100000 | RING-DUST | [2] |
| 20 | 31YC-61020 | NUT-LOCK | [1] |
| 22 | S109-160554 | BOLT-SOCKET | [9] |
| 23 | 31Y1-03840 | PIPE ASSY | [1] |
| 24 | 31Y1-03850 | PIPE ASSY | [1] |
| 25 | S631-026004 | O-RING | [2] |
| 26 | S017-100602 | BOLT-HEX | [8] |
| 27 | S411-100002 | WASHER-SPRING | [8] |
| 28 | 31Y1-03820 | BAND ASSY | [2] |
| 28-1. | 31Y1-03830 | BAND SUB ASSY | [1] |
| 28-2. | S011-100352 | BOLT-HEX | [2] |
| 28-3. | S411-100002 | WASHER-SPRING | [2] |
| 28-4. | 31YC-36010 | CLAMP-PIPE | [1] |
| 28-5. | S015-120502 | BOLT-HEX | [1] |
| 28-6. | S411-120002 | WASHER-SPRING | [1] |
| 35 | 31YC-11040 | BUSHING-PIN | [1] |
| 36 | 31YC-11050 | BUSHING-PIN | [1] |
| 37 | Y000-070200 | SEAL-DUST | [4] |
| K. | 31Y1-03860 | SEAL KIT | [1] |
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
