31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit

Name: 31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Acceptable trial order

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit

Product Name	Blade Cylinder Service Kit
Part Number	31Y1-04031, 31Y104031
Model	HYUNDAI R130LC-3, R140LC-7
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic cylinder seal kit, excavator service kits
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High sealing performance/ wear resistance
AppliC.A.Tion	Blade
Rod	70 MM
Bore	100 MM
Cylinder No.	R140LCD-7 Blade LH Cylinder# 31E6-70020 R140LCD-7 Blade RH Cylinder# 31E6-70010

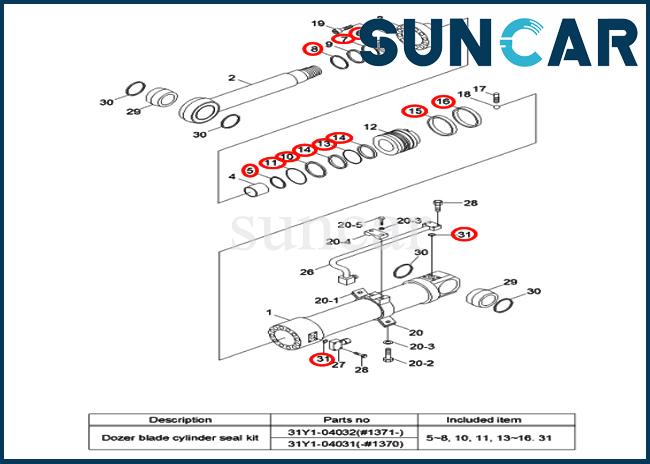

Related Parts:

Pos.	Part No	Product Name	QTY
*.	31E6-70020	DOZER CYLINDER-LH	[1]
*.	31N4-70210	DOZER BLADE CYL-LH	[1]
*.	31E6-70010	DOZER CYLINDER-RH	[1]
*.	31N4-70220	DOZER BLADE CYL-RH	[1]
*-1.	31E6-75020	DOZER CYL SUB ASSY-LH	[1]
*-1.	31E6-75010	DOZER CYL SUB ASSY-RH	[1]
1	31Y1-03870	TUBE ASSY-LH	[1]
1	31Y1-03880	TUBE ASSY-RH	[1]
2	31Y1-03930	ROD ASSY	[1]
3	31Y1-03960	GLAND	[1]
3	31Y1-03961	GLAND	[1]
4	S731-070040	BUSHING-DU	[1]
K5.	Y260-070000	SEAL-STEP	[1]
K5.	Y240-070011	RING-BUFFER	[1]
K6.	Y200-070011	SEAL-ROD	[1]
K7.	Y180-070020	RING-BACK UP	[1]
K8.	Y110-070011	WIPER-DUST	[1]
9	Y190-084000	RING-SNAP	[1]
K10.	S631-090004	O-RING	[1]
K11.	S641-090003	RING-BACK UP	[1]
12	31Y1-03970	PISTON	[1]
K13.	S632-055004	O-RING	[1]
K14.	S642-055003	RING-BACK UP	[2]
K15.	Y420-100000	SEAL-PISTON	[1]
K16.	Y310-100400	RING-WEAR	[1]
17	S113-080104	SCREW-SET	[1]
18	Y890-015011	BALL-STEEL	[1]
19	S109-160554	BOLT-SOCKET	[8]
29	31YC-12080	BUSHING-PIN	[2]
30	Y000-070200	SEAL-DUST	[4]
20	31Y1-03980	BAND ASSY	[1]
20-1.	31Y1-03990	BAND SUB ASSY	[1]
20-2.	S011-100352	BOLT-HEX	[2]
20-3.	S411-100002	WASHER-SPRING	[4]
20-4.	31YC-37010	CLAMP-PIPE	[1]
20-5.	S011-100502	BOLT-HEX	[2]
26	31Y1-04010	PIPE ASSY-RH	[1]
26	31Y1-25000	PIPE ASSY-RH	[1]
26	31Y1-04000	PIPE ASSY-LH	[1]
26	31Y1-24990	PIPE ASSY-LH	[1]
27	31YC-49060	PORT-FLANGE	[1]
27	31YC-49200	PORT-FLANGE	[1]
28	S107-080404	BOLT-SOCKET	[8]
K31.	Y171-015004	O-RING	[2]
K.	31Y1-04031	SEAL KIT	[1]
K.	31Y1-04032	SEAL KIT	[1]

Basic Requirements For Sealing Materials:

The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
Have certain mechanical properties, such as tensile strength, elongation, etc.;
Appropriate elasticity and hardness, small compression set;
High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
Good oxygen resistance and aging resistance, durable;
Abrasion resistance, no corrosion to metal;
Easy to shape and process, low price.

Advantages:

Quality stability.
Professional R&D team.
We have all specifiC.A.Tions of our products and can meet customers’ product diversity needs.
We prefer to accept your lower MOQ in order to relieve your purchasing stress.
Our markets are widely distributed to North Europe, East Europe, West Europe, North America, South America, East Asia, Southeast Asia, Middle East, Africa, Australia, etc. and enjoy good reputation.

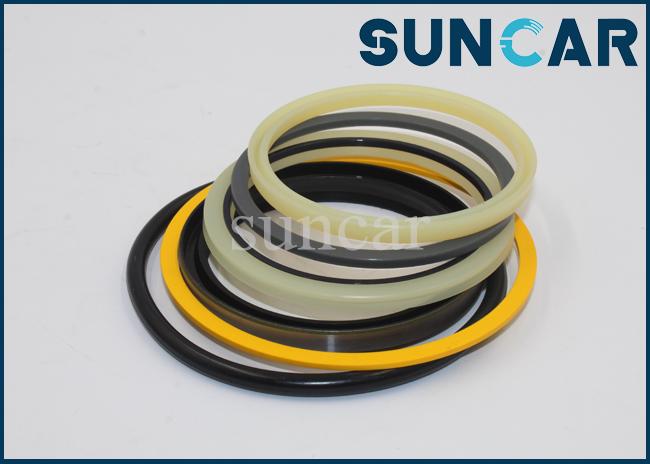

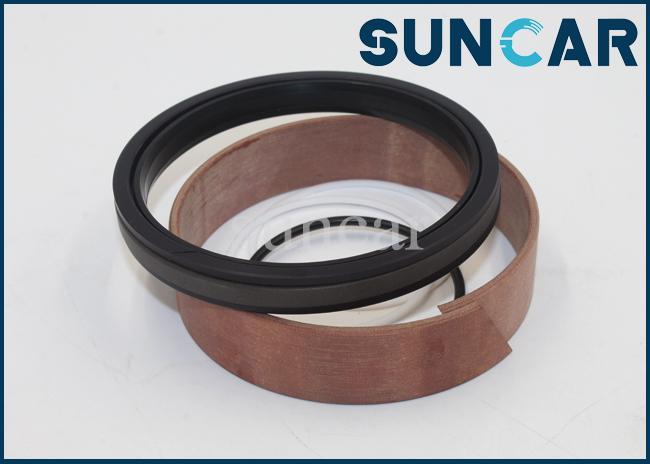

Product Show:
