31Y1-10160 Bucket Oil Sealing Kit Hydraulic Cylinder For R250LC-3 R250LC-7 R250LC-7A Hyundai Seal Kit
Price:
Negotiation
MOQ:
Acceptable trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
31Y1-10160 Bucket Oil Seal Kit Hydraulic Cylinder For R250LC-3 R250LC-7 R250LC-7A Hyundai Seal Kit
| Product Name | Bucket Cylinder Oil Seal Kit |
| Part Number | 31Y1-10160, 31Y110160 |
| Model |
Hyundai 3-SERIES CRAWLER EXCAVATOR R250LC-3 7-SERIES CRAWLER EXCAVATOR R250LC-7, R250LC-7A |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
Related Parts:
| Pos. | Part No | Product Name | QTY |
| *. | 31N7-60110 | CYLINDER ASSEMBLY | [1] |
| *-1. | 31Y1-19970 | BUCKET CYLINDER SUB | [1] |
| 1 | 31Y1-10030 | TUBE ASSY | [1] |
| 2 | 31Y1-10080 | ROD ASSY | [1] |
| 3 | 31Y1-10100 | GLAND | [1] |
| 4 | S732-090040 | BUSHING | [1] |
| 5 | Y191-097000 | RING-SNAP | [1] |
| K6. | Y220-090011 | SEAL-ROD | [1] |
| K7. | Y180-090020 | RING-BACK UP | [1] |
| K8. | Y240-090011 | RING-BUFFER | [1] |
| K9. | Y110-090011 | WIPER-DUST | [1] |
| 10 | Y190-104000 | RING-SNAP | [1] |
| K11. | Y320-090000 | RING-WEAR | [1] |
| K12. | S631-125004 | O-RING | [1] |
| K13. | S641-125003 | RING-BACK UP | [1] |
| 14 | 31YC-23110 | RING-CUSHION | [1] |
| 15 | 31Y1-10110 | PISTON | [1] |
| K16. | S632-080004 | O-RING | [1] |
| K17. | S642-080003 | RING-BACK UP | [2] |
| K18. | Y420-135000 | SEAL-PISTON | [1] |
| K19. | Y310-135100 | RING-WEAR | [2] |
| K20. | Y440-135000 | RING-DUST | [2] |
| 21 | 31YC-66051 | WASHER-LOCK | [1] |
| 22 | 31YC-61163 | NUT-LOCK | [1] |
| 23 | S109-220804 | BOLT-SOCKET | [8] |
| 29 | 31YC-11140 | BUSHING-PIN | [1] |
| 30 | 31YC-11150 | BUSHING-PIN | [1] |
| 31 | Y000-080200 | SEAL-DUST | [2] |
| 32 | Y000-090000 | SEAL-DUST | [2] |
| 24 | 31Y1-10120 | BAND ASSY | [2] |
| 24-1. | 31Y1-20020 | BAND SUB ASSY | [1] |
| 24-2. | 31YC-31290 | BAND | [1] |
| 24-3. | S071-023430 | U-BOLT | [1] |
| 24-4. | S011-100352 | BOLT-HEX | [2] |
| 24-5. | S201-101002 | NUT-HEXAGON HEAD | [2] |
| 24-6. | S411-100002 | WASHER-SPRING | [4] |
| 25 | 31Y1-10140 | PIPE ASSY-R | [1] |
| 26 | 31Y1-10150 | PIPE ASSY-B | [1] |
| K27. | Y171-024004 | O-RING | [2] |
| 28 | S107-100554 | BOLT-SOCKET | [8] |
| K. | 31Y1-10160 | SEAL KIT | [1] |
How To Buy:
Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.
- "Product name + part number + quantity".
- Expected packaging: general packaging or customized packaging.
Step 2: Quotation and invoice
- We will send the quotation to you as soon as possible. Once confirmed, we will issue an official invoice and provide bank information.
Step 3: Payment
- Pay to our account and send us a bank statement.
- Payment method: Western Union, T/T, Paypal, Transfer.
Step 4: Delivery
- After receiving the payment, we will arrange the goods to be delivered to your designated address in China as soon as possible.
Step 5: Receipt
- You just need to wait patiently for the goods.

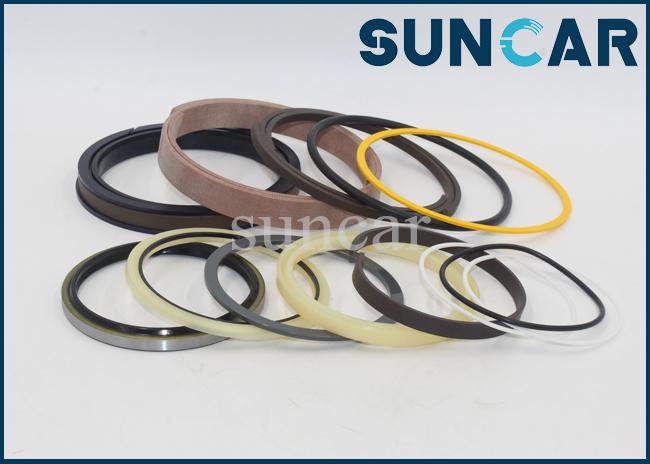

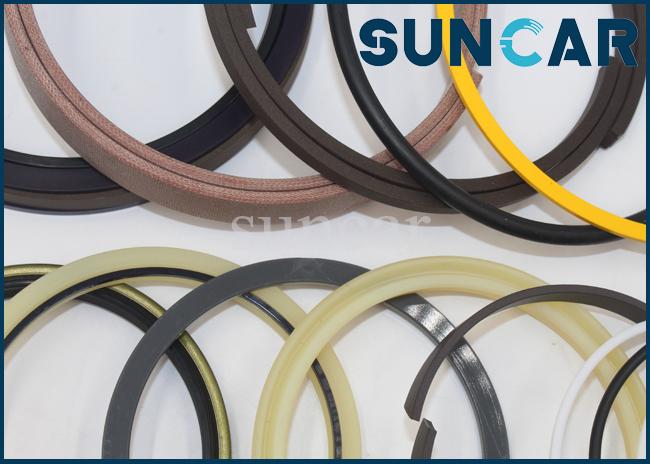

Product Show:
