31Y1-15040 31Y115040 Cylinder Service Kit Excavator Seal Repair Kit Fits Hyundai R290LC-7 R290LC7H R305LC-7
31Y1-15040 31Y115040 Cylinder Service Kit Excavator Seal Repair Kit Fits Hyundai R290LC-7 R290LC7H R305LC-7
| Product Name | Arm Cylinder Service Kit |
| Part Number | 31Y1-15040, 31Y115040 |
| Model | Hyundai Crawler Excavator R290LC-7, R290LC7H, R305LC-7 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
| Rod | 110 MM |
| Bore | 150 MM |
| Cylinder No. | 31N8-50130 |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
- Have certain mechanical properties, such as tensile strength, elongation, etc.;
- Appropriate elasticity and hardness, small compression set;
- High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
- It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
- Good oxygen resistance and aging resistance, durable;
- Abrasion resistance, no corrosion to metal;
- Easy to shape and process, low price.
Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31N8-50130 | [1] | ARM CYLINDER |
| *. | 31N8-52130 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-14900 | [1] | ARM CYLINDER SUB |
| 1 | 31Y1-14910 | [1] | TUBE ASSY |
| 2 | 31Y1-14960 | [1] | ROD ASSY |
| N20. | @ | [1] | SPEAR-CUSHION |
| N21. | @ | [1] | VALVE-CHECK |
| N22. | @ | [1] | SPRING-COIL |
| N23. | @ | [1] | RING-STOP |
| N3. | 31Y1-14990 | [1] | GLAND |
| 4 | S732-110045 | [1] | BUSHING-DD2 |
| 5 | Y191-117000 | [1] | RING-SNAP |
| K6. | Y220-110011 | [1] | SEAL-ROD |
| K7. | Y180-110020 | [1] | RING-BACK UP |
| K8. | Y240-110013 | [1] | RING-BUFFER |
| K9. | Y110-110011 | [1] | WIPER-DUST |
| 10 | Y190-126000 | [1] | RING-SNAP |
| K11. | S631-140004 | [1] | O-RING |
| K12. | S641-140003 | [1] | RING-BACK UP |
| 13 | 31YC-23050 | [1] | RING-CUSHION |
| 14 | 31Y1-15000 | [1] | PISTON |
| K15. | S632-095004 | [1] | O-RING |
| K16. | S642-095003 | [2] | RING-BACK UP |
| K17. | Y420-150000 | [1] | SEAL-PISTON |
| K18. | Y310-150003 | [2] | RING-WEAR |
| K19. | Y440-150002 | [2] | RING-DUST |
| 24 | 31YC-66080 | [1] | WASHER-LOCK |
| 24 | 31YC-66081 | [1] | WASHER-LOCK |
| 25 | 31YC-61142 | [1] | NUT-LOCK |
| 25 | 31YC-61143 | [1] | NUT-LOCK |
| 26 | S109-200904 | [12] | BOLT-SOCKET |
| 33 | 31YC-11161 | [2] | BUSHING-PIN |
| 34 | Y000-090000 | [4] | SEAL-DUST |
| 27 | 31Y1-15010 | [2] | BAND ASSY |
| 27 | 31Y1-15010 | [1] | BAND ASSY |
| 27-1. | 31Y1-15050 | [1] | BAND SUB ASSY |
| 27-2. | 31YC-31420 | [1] | BAND |
| 27-3. | S015-120452 | [2] | BOLT-HEX |
| 27-4. | S411-120002 | [2] | WASHER-SPRING |
| 27-5. | 31YC-37040 | [1] | CLAMP-PIPE |
| 27-6. | S015-120402 | [2] | BOLT-HEX |
| 27-7. | S411-120002 | [2] | WASHER-SPRING |
| 28 | 31Y1-15020 | [1] | PIPE ASSY-R |
| 29 | 31Y1-15030 | [1] | PIPE ASSY-B |
| K30. | Y171-024004 | [2] | O-RING |
| 31 | S107-120554 | [4] | BOLT-SOCKET |
| 32 | S107-100554 | [4] | BOLT-SOCKET |
| 35 | 31Y1-21920 | [1] | BAND ASSY-B |
| 35-1. | 31Y1-21930 | [1] | BAND SUB ASSEMBLY |
| 35-2. | 31YC-32240 | [1] | BAND |
| 35-3. | S015-120452 | [1] | BOLT-HEX |
| 35-4. | S411-120002 | [1] | WASHER-SPRING |
| 35-5. | S071-023430 | [2] | U-BOLT |
| 35-6. | S201-101002 | [4] | NUT-HEX |
| 35-7. | S411-100002 | [4] | WASHER-SPRING |
| K. | 31Y1-15040 | [1] | SEAL KIT |
| K. | 31Y1-18250 | [1] | SEAL KIT |
| N. | @ | [AR] | NOT SUPPLIED PARTS |

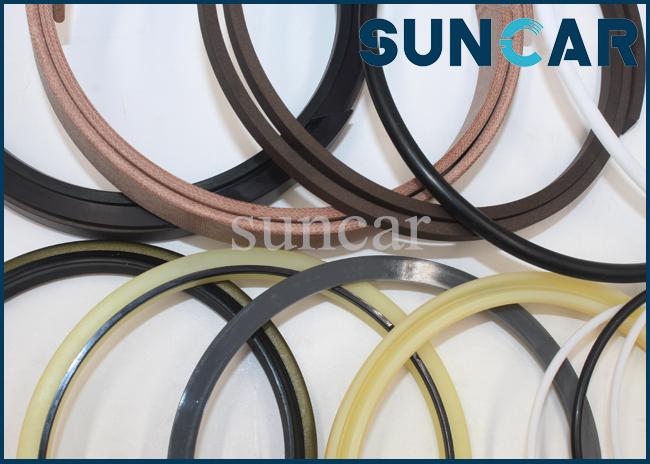

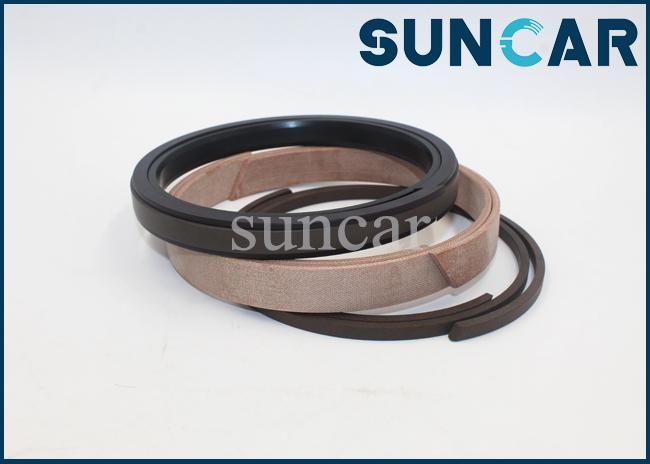

Product Show:
