31Y1-15230 31Y115230 Arm Cylinder Repair Seal Kit R200W-7 R210LC-7 R210NLC-7 Hyundai Service Kits Parts
31Y1-15230 31Y115230 Arm Cylinder Repair Seal Kit R200W-7 R210LC-7 R210NLC-7 Hyundai Service Kits Parts
| Product Name | Arm Cylinder Repair Seal Kit |
| Part Number | 31Y1-15230, 31Y115230 |
| Model |
7 SERIES WHEEL EXCAVATOR R200W-7; 7-SERIES CRAWLER EXCAVATOR R210LC-7, R210LC-7H, R210NLC-7 Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
Product Description:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
- There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
- Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
- Arm cylinder is the top one, and it's usually be called as top cylinder;
- Bucket cylinder is the one that connects and controls the bucket.

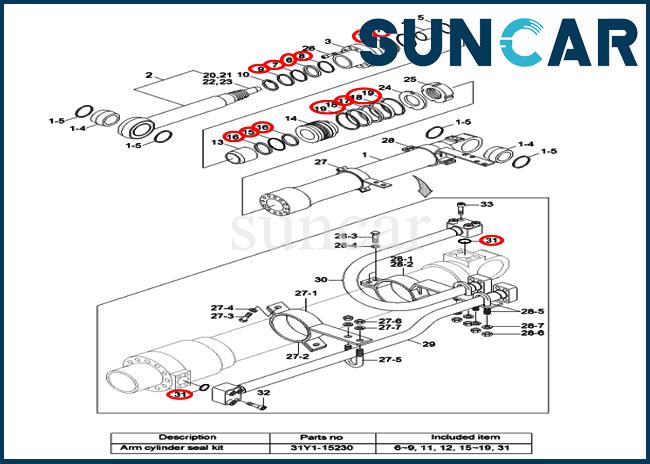

Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31N6-50130 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-15060 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-15070 | [1] | TUBE ASSY |
| 1-4. | 31YC-11141 | [2] | BUSHING-PIN |
| 1-5. | Y000-080200 | [4] | SEAL-DUST |
| 2 | 31Y1-15120 | [1] | ROD ASSY |
| N20. | @ | [1] | SPEAR-CUSHION |
| N21. | @ | [1] | VALVE-CHECK |
| N22. | @ | [1] | SPRING-COIL |
| N23. | @ | [1] | RING-STOP |
| 3 | 31Y1-15150 | [1] | GLAND |
| 4 | S732-100040 | [1] | BUSHING-DD2 |
| 5 | Y191-107000 | [1] | RING-SNAP |
| K6. | Y220-100011 | [1] | SEAL-ROD |
| K7. | Y180-100020 | [1] | RING-BACK UP |
| K8. | Y240-100013 | [1] | RING-BUFFER |
| K9. | Y110-100011 | [1] | WIPER-DUST |
| 10 | Y190-114000 | [1] | RING-SNAP |
| K11. | S631-130004 | [1] | O-RING |
| K12. | S641-130003 | [1] | RING-BACK UP |
| 13 | 31YC-23040 | [1] | RING-CUSHION |
| 14 | 31Y1-15160 | [1] | PISTON |
| K15. | S632-085004 | [1] | O-RING |
| K16. | S642-085003 | [2] | RING-BACK UP |
| K17. | Y420-140000 | [1] | SEAL-PISTON |
| K18. | Y310-140000 | [2] | RING-WEAR |
| K19. | Y440-140000 | [2] | RING-DUST |
| 24 | 31YC-66060 | [1] | WASHER-LOCK |
| 25 | 31YC-61132 | [1] | NUT-LOCK |
| 26 | S109-180904 | [12] | BOLT-SOCKET |
| 27 | 31Y1-15170 | [1] | BAND ASSY-R |
| 27-1. | 31Y1-15180 | [1] | BAND SUB ASSY |
| 27-2. | 31YC-18630 | [1] | BAND |
| 27-3. | S015-120452 | [2] | BOLT-HEX |
| 27-4. | S411-120002 | [2] | WASHER-SPRING |
| 27-5. | S071-023430 | [1] | U-BOLT |
| 27-6. | S201-101002 | [2] | NUT-HEX |
| 27-7. | S411-100002 | [2] | WASHER-SPRING |
| 28 | 31Y1-15190 | [1] | BAND ASSY-B |
| 28-1. | 31Y1-15200 | [1] | BAND SUB ASSY |
| 28-2. | 31YC-18640 | [1] | BAND |
| 28-3. | S015-120452 | [4] | BOLT-HEX |
| 28-4. | S411-120002 | [4] | WASHER-SPRING |
| 28-5. | S071-023430 | [2] | U-BOLT |
| 28-6. | S201-101002 | [4] | NUT-HEX |
| 28-7. | S411-100002 | [4] | WASHER-SPRING |
| 29 | 31Y1-15210 | [1] | PIPE ASSY-R |
| 30 | 31Y1-15220 | [1] | PIPE ASSY-B |
| K31. | Y171-024004 | [2] | O-RING |
| 32 | S107-120554 | [4] | BOLT-SOCKET |
| 33 | S107-100554 | [4] | BOLT-SOCKET |
| K. | 31Y1-15230 | [1] | SEAL KIT |
| N. | @ | [AR] | NOT INDIVIDUALLY SUPPLIED |
Terms Of Service:
1. You may email us if you have a question or would like to submit a comment.
2. Generally, email will be responded to within 24 hours; except on every Sunday and holidays. We will reply as soon as we back in office.
3. Though we pride ourselves on fast order processing and shipping, sometimes delays may occur. Please be patient, and keep in touch with us via email.
4. Should you be dissatisfied with our service for any reason, please contact us.
5. We have important business in the overseas market due to our high quality produtc and reasonable prices.
6. Also, we can supply all kinds of excavator spare parts according to customers’ requirements! All the picture is just for your reference.
7. We always promise to offer excellent products as well as satisfactory service to our clients all over the world.
8. If you have any problems about details please contact us, we can supply different oil seal and other spare parts with different models as you like.

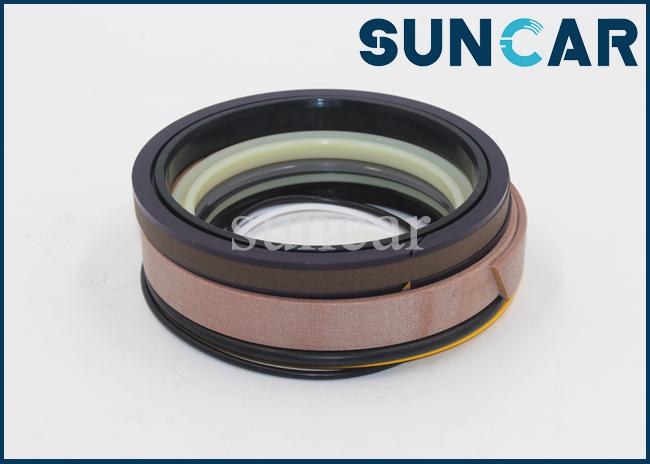

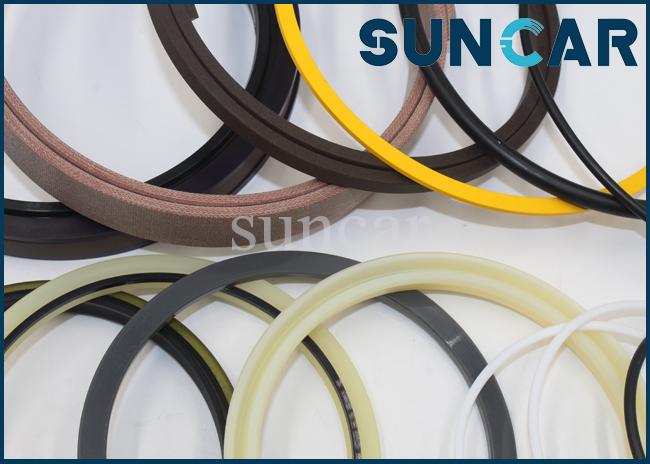

Product Show:
