31Y1-15700 31Y115700 Bucket Cylinder Seal Kit Fits R200W-7 R210LC-7 R210NLC-7 Hyundai Equipment
31Y1-15700 31Y115700 Bucket Cylinder Seal Kit Fits R200W-7 R210LC-7 R210NLC-7 Hyundai Equipment
| Product Name | Bucket Cylinder Seal Kit |
| Part Number | 31Y1-15700, 31Y115700 |
| Model |
7 SERIES WHEEL EXCAVATOR R200W-7; 7-SERIES CRAWLER EXCAVATOR R210LC-7, R210LC-7H, R210NLC-7 Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
Our Advantage:
1. We have more than ten years of sales experience in excavator sealing systems, seal kits, hydraulic pump parts and engine parts in the international and domestic markets.
2. We provide Kobelco, Hitachi, C.A.T, Komatsu, Hyundai, Daewoo and Doosan complete sets for booms, arm, buckets, swing motors, travel motors, main pumps, center joints, crawler adjustment cylinders and gear pumps seals and seal kits.
3. Our Factory have advanced technology and 100% testing before delivery.
4. Quick delivery and competitive price.
5. The larger quantity you order, the better price we can supply.
6. We have a professional team to offer professional service for you.
7. We can offer New and Used, OEM, Good quality, Aftermarket parts to you.
8. All parts can check with part number, all parts can order by part number.
9. Safe packing to protect the goods, such as wooden box, Iron sheet.

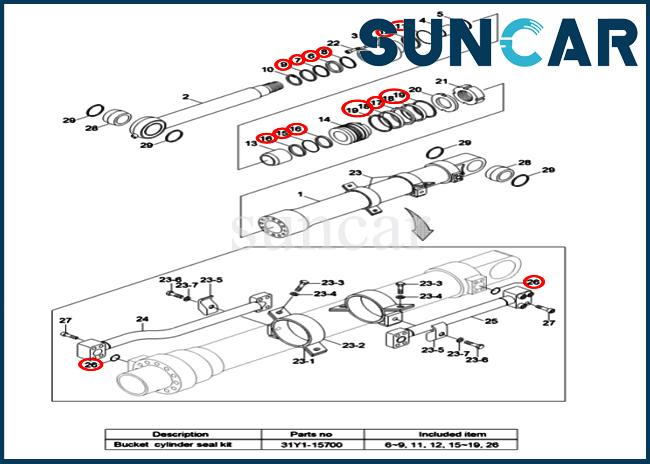

Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31N6-60110 | [1] | CYLINDER ASSEMBLY |
| *-1. | 31Y1-15550 | [1] | BUCKET CYL SUB ASSY |
| 1 | 31Y1-15560 | [1] | TUBE ASSY |
| 2 | 31Y1-15610 | [1] | ROD ASSY |
| 3 | 31Y1-15640 | [1] | GLAND |
| 4 | S732-085030 | [1] | BUSHING-DU |
| 5 | Y191-092000 | [1] | RING-SNAP |
| K6. | Y220-085011 | [1] | SEAL-ROD |
| K7. | Y180-085020 | [1] | RING-BACK UP |
| K8. | Y240-085013 | [1] | RING-BUFFER |
| K9. | Y110-085011 | [1] | WIPER-DUST |
| 10 | Y190-099000 | [1] | RING-SNAP |
| K11. | S631-115004 | [1] | O-RING |
| K12. | S641-115003 | [1] | RING-BACK UP |
| 13 | 31YC-23020 | [1] | RING-CUSHION |
| 14 | 31Y1-15650 | [1] | PISTON |
| K15. | S632-075004 | [1] | O-RING |
| K16. | S642-075003 | [2] | RING-BACK UP |
| K17. | Y420-125000 | [1] | SEAL-PISTON |
| K18. | Y310-125000 | [2] | RING-WEAR |
| K19. | Y440-125000 | [2] | RING-DUST |
| 20 | 31YC-66041 | [1] | WASHER-LOCK |
| 21 | 31YC-61243 | [1] | NUT-LOCK |
| 22 | S109-160804 | [12] | BOLT-SOCKET |
| 28 | 31YC-11240 | [2] | BUSHING-PIN |
| 29 | Y000-080200 | [4] | SEAL-DUST |
| 23 | 31Y1-15660 | [2] | BAND ASSY |
| 23-1. | 31Y1-15670 | [1] | BAND SUB ASSEMBLY |
| 23-2. | 31YC-31120 | [1] | BAND |
| 23-3. | S011-100352 | [2] | BOLT-HEX |
| 23-4. | S411-100002 | [2] | WASHER-SPRING |
| 23-5. | 31YC-36010 | [1] | CLAMP-PIPE |
| 23-6. | S015-120502 | [1] | BOLT-HEX |
| 23-7. | S411-120002 | [1] | WASHER-SPRING |
| 24 | 31Y1-15680 | [1] | PIPE ASSY-R |
| 25 | 31Y1-15690 | [1] | PIPE ASSY-B |
| K26. | Y171-019004 | [2] | O-RING |
| 27 | S107-100454 | [8] | BOLT-SOCKET HEAD |
| K. | 31Y1-15700 | [1] | SEAL KIT |
Other Available Parts:
(1) Boom cylinder seal kit, bucket cylinder seal kit, stick arm cylinder seal kit, track adjust seal kit, center joint seal kit, pump main seal kit, swing motor seal kit, travel motor seal kit, floating seal, oil seal, pilot valve seal kit, gear pump seal kit, controller valve seal kit, coupling.
(2) Main pump parts, relief valve, swing motor parts, swing device parts, travel motor parts, travel reduction parts, bearing.
(3) Engine rebuild parts, piston, liner, piston ring, crankshaft, camshaft, rod connecting, engine bearing, valve, valve seat, valve guide, gasket kit, cylinder block , cylinder head, oil pump, water pump, injector, feed pump, pulley, fan.
(4) Solenoid, sensor, air controller, therttle motor, wiper motor, blower motor, start motor.
Teeth, adapter, pin, bucket, bucket pin, bushing, h link, track link, cylinder assy, spring, top roller, track roller, idler, sprocket.
