R210LC-7 R210LC-7H HYUNDAI 31Y1-15880 31Y115880 Boom Cylinder Repair Seal Kit Excavator Service Kit
R210LC-7 R210LC-7H HYUNDAI 31Y1-15880 31Y115880 Boom Cylinder Repair Seal Kit Excavator Service Kit
| Product Name | Boom Cylinder Repair Seal Kit |
| Part Number | 31Y1-15880, 31Y115880 |
| Model | 7-SERIES CRAWLER EXCAVATOR R210LC-7, R210LC-7H Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |

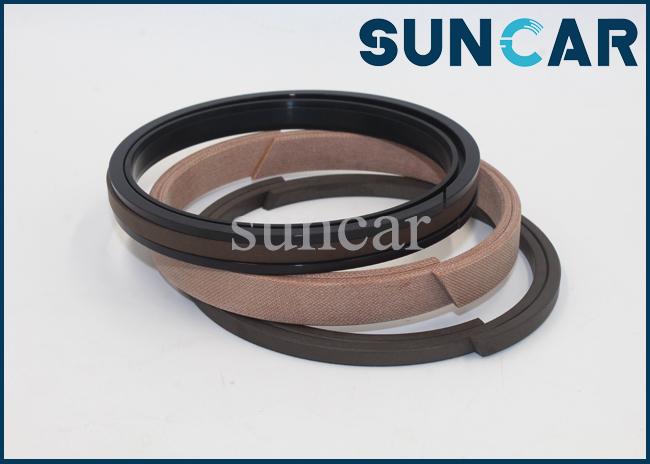

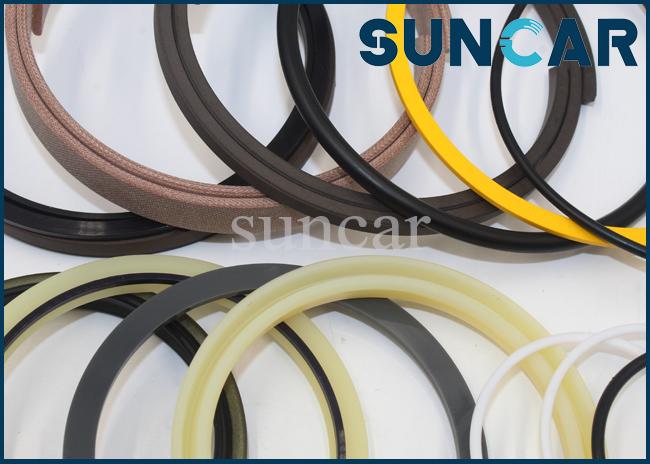

Product Show:
Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31N6-50111 | [1] | CYLINDER ASSEMBLY,RH |
| *. | 31N6-50121 | [1] | CYLINDER ASSEMBLY,LH |
| *-1. | 31Y1-15711 | [1] | BOOM CYL SUB ASSY |
| 1 | 31Y1-15721 | [1] | TUBE ASSY |
| 2 | 31Y1-15770 | [1] | ROD ASSY |
| 3 | 31Y1-15800 | [1] | GLAND |
| 4 | S732-085030 | [1] | BUSHING-DU |
| 5 | Y191-092000 | [1] | RING-SNAP |
| K6. | Y220-085011 | [1] | SEAL-ROD |
| K7. | Y180-085020 | [1] | RING-BACK UP |
| K8. | Y240-085013 | [1] | RING-BUFFER |
| K9. | Y110-085011 | [1] | WIPER-DUST |
| 10 | Y190-099000 | [1] | RING-SNAP |
| K11. | S631-110004 | [1] | O-RING |
| K12. | S641-110003 | [1] | RING-BACK UP |
| 13 | 31YC-23020 | [1] | RING-CUSHION |
| 14 | 31Y1-15810 | [1] | PISTON |
| K15. | S632-075004 | [1] | O-RING |
| K16. | S642-075003 | [2] | RING-BACK UP |
| K17. | Y420-120000 | [1] | SEAL-PISTON |
| K18. | Y310-120000 | [2] | RING-WEAR |
| K19. | Y440-120000 | [2] | RING-DUST |
| 20 | 31YC-66040 | [1] | WASHER-LOCK |
| 21 | 31YC-61242 | [1] | NUT-LOCK |
| 22 | S109-160804 | [12] | BOLT-SOCKET |
| 28 | 31YC-11115 | [1] | BUSHING-PIN |
| 29 | 31YC-11245 | [1] | BUSH-PIN |
| 30 | Y000-080200 | [4] | SEAL-DUST |
| 23 | 31Y1-15820 | [2] | BAND ASSY |
| 23-1. | 31Y1-15830 | [1] | BAND SUB ASSY |
| 23-2. | 31YC-32220 | [1] | BAND |
| 23-3. | S071-022730 | [2] | U-BOLT |
| 23-4. | S011-100352 | [4] | BOLT-HEX |
| 23-5. | S201-101002 | [4] | NUT-HEXAGON HEAD |
| 23-6. | S411-100002 | [8] | WASHER-SPRING |
| 24 | 31Y1-15840 | [1] | PIPE ASSY-R/LH |
| 24 | 31Y1-15850 | [1] | PIPE ASSY-R/RH |
| 25 | 31Y1-18220 | [1] | PIPE ASSY-B/LH |
| 25 | 31Y1-18230 | [1] | PIPE ASSY-B/RH |
| K26. | Y171-019004 | [2] | O-RING |
| 27 | S107-100454 | [8] | BOLT-SOCKET HEAD |
| K. | 31Y1-15880 | [1] | SEAL KIT |
Our Product Range:
(1) We set up the PTFE polymer materials, PU polyurethane and NBR materials seals producing line. All sealing products are widely used in different kinds of excavator and breaker hammer installation and maintenance systems, wining high reputation from the customers at home and abroad. Our factory :The following seal kits we also can supply:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit
