31Y1-18480 31Y118480 Excavator Oil Seal Kit Arm Hydraulic Cylinder Fits Hyundai R360LC-7 R370LC-7
31Y1-18480 31Y118480 Excavator Oil Seal Kit Arm Hydraulic Cylinder Fits Hyundai R360LC-7 R370LC-7
| Product Name | Arm Cylinder Oil Seal Kit |
| Part Number | 31Y1-18480, 31Y118480 |
| Model | 7-SERIES CRAWLER EXCAVATOR R360LC-7, R360LC-7A, R370LC-7 Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |

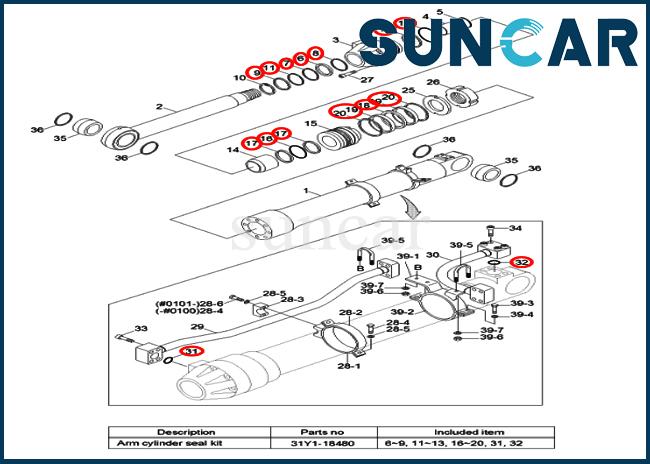

Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31NA-50130 | [1] | CYLINDER ASSEMBLY |
| *. | 31NA-50131 | [1] | ARM CYLINDER |
| *. | 31NA-50132 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-18450 | [1] | ARM CYLINDER SUB |
| 1 | 31Y1-18730 | [1] | TUBE ASSY |
| 2 | 31Y1-23910 | [1] | ROD ASSY |
| 3 | 31Y1-08630Y | [1] | GLAND |
| 4 | S732-120050 | [1] | BUSHING |
| 5 | Y191-127000 | [1] | RING-SNAP |
| K6. | Y220-120111 | [1] | SEAL-ROD |
| K7. | Y180-120020 | [1] | RING-BACK UP |
| K8. | Y240-120013 | [1] | RING-BUFFER |
| K9. | Y110-120011 | [1] | WIPER-DUST |
| 10 | Y190-136000 | [1] | RING-SNAP |
| K11. | Y320-120000 | [1] | RING-WEAR |
| K12. | S632-160004 | [1] | O-RING |
| K13. | S642-160003 | [1] | RING-BACK UP |
| 14 | 31YC-23070 | [1] | RING-CUSHION |
| 15 | 31Y1-08642 | [1] | PISTON |
| K16. | S632-105004 | [1] | O-RING |
| K17. | S642-105003 | [2] | RING-BACK UP |
| K18. | Y420-170000 | [1] | SEAL-PISTON |
| K19. | Y310-170203 | [2] | RING-WEAR |
| K20. | Y440-170102 | [2] | RING-DUST |
| 25 | 31YC-66100 | [1] | WASHER-LOCK |
| 26 | 31YC-61263 | [1] | NUT-LOCK |
| 27 | S109-271004 | [8] | BOLT-SOCKET |
| 35 | 31YC-11201 | [2] | BUSHING-PIN |
| 36 | Y000-110100 | [4] | SEAL-DUST |
| 28 | 31Y1-08650 | [1] | BAND ASSY |
| 28 | 31Y1-22650 | [1] | BAND ASSY |
| 28-1. | 31Y1-08660 | [1] | BAND SUB ASSY |
| 28-1. | 31Y1-22660 | [1] | BAND SUB ASSY |
| 28-2. | 31YC-31260 | [1] | BAND |
| 28-3. | 31YC-37040 | [1] | CLAMP-PIPE |
| 28-3. | 31YC-37050 | [1] | CLAMP-PIPE |
| 28-4. | S015-120452 | [4] | BOLT-HEX |
| 28-4. | S015-120452 | [2] | BOLT-HEX |
| 28-5. | S411-120002 | [4] | WASHER-SPRING |
| 28-6. | S015-120502 | [2] | BOLT-HEX |
| 29 | 31Y1-18800 | [1] | PIPE ASSY-R |
| 29 | 31Y1-22670 | [1] | PIPE ASSY-R |
| 29 | 31Y1-22671 | [1] | PIPE ASSY-R |
| 30 | 31Y1-18810 | [1] | PIPE ASSY-B |
| K31. | Y171-024004 | [1] | O-RING |
| K32. | Y171-027004 | [1] | O-RING |
| 33 | S107-120554 | [4] | BOLT-SOCKET |
| 33 | S107-120604 | [4] | BOLT-SOCKET |
| 34 | S107-120654 | [4] | BOLT-SOCKET |
| 39 | 31Y1-25090 | [1] | BAND ASSY-B |
| 39-1. | 31Y1-25100 | [1] | BAND SUB ASSEMBLY |
| 39-2. | 31Y1-25110 | [1] | BAND SUB ASSEMBLY |
| 39-3. | S015-120452 | [4] | BOLT-HEX |
| 39-4. | S411-120002 | [4] | WASHER-SPRING |
| 39-5. | S071-024330 | [2] | U-BOLT |
| 39-6. | S201-101002 | [4] | NUT-HEXAGON HEAD |
| 39-7. | S411-100002 | [4] | WASHER-SPRING |
| K. | 31Y1-18480 | [1] | SEAL KIT |
