Adjust Cylinder Service Kit 31Y1-24090 31Y124090 Repair Seal Kit For Hyundai R160LC-7 R160LC-9 R170W-9
Adjust Cylinder Service Kit 31Y1-24090 31Y124090 Repair Seal Kit For Hyundai R160LC-7 R160LC-9 R170W-9
| Product Name | Adjust Cylinder Service Kit |
| Part Number | 31Y1-24090, 31Y124090 |
| Model |
7 SERIES WHEEL EXCAVATOR R170W-7, R170W-7A; 7-SERIES CRAWLER EXCAVATOR R160LC-7, R160LC-7A, R180LC-7, R180LC-7A; 9-SERIES CRAWLER EXCAVATOR R160LC-9, R160LC-9A, R160LC-9S, R180LC-9, R180LC-9A, R180LC-9S; 9-SERIES WHEEL EXCAVATOR R160W-9A, R170W-9, R170W-9S, R180W-9A, R180W-9S; F-SERIES CRAWLER EXCAVATOR HX160L, HX180L, Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Adjust Cylinder |
| Rod | 95 MM |
| Bore | 160 MM |
| Cylinder No. | 31N5-52940 |

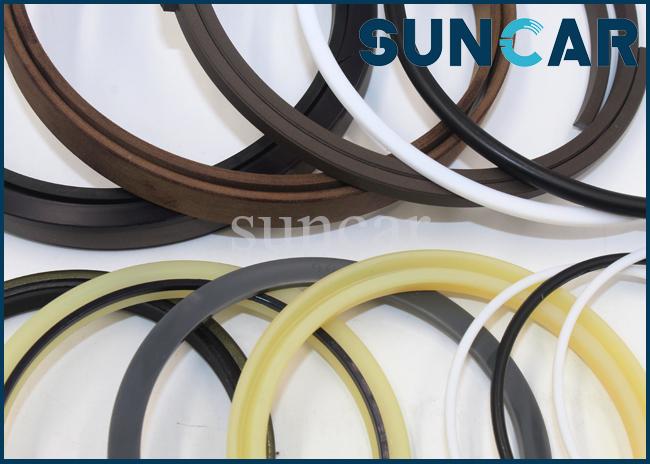

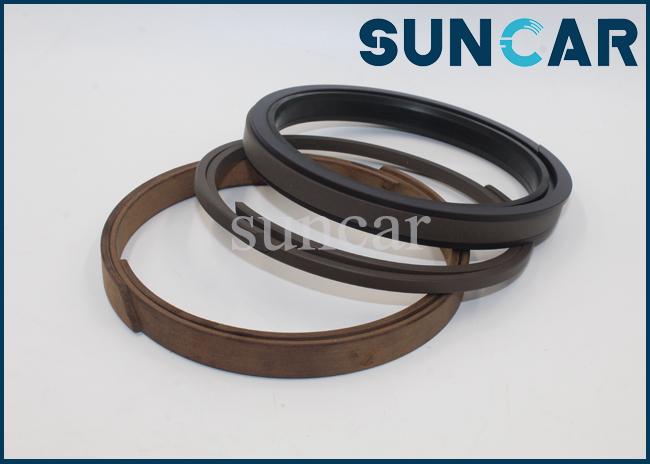

Product Show:
Advantages:
(1) Quality stability.
(2 ) Professional R&D team.
(3) We have all specifiC.A.Tions of our products and can meet customers’ product diversity needs.
(4) We prefer to accept your lower MOQ in order to relieve your purchasing stress.
(5) Our markets are widely distributed to North Europe, East Europe, West Europe, North America, South America, East Asia, Southeast Asia, Middle East, Africa, Australia, etc. and enjoy good reputation.
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
- Have certain mechanical properties, such as tensile strength, elongation, etc.;
- Appropriate elasticity and hardness, small compression set;
- High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
- It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
- Good oxygen resistance and aging resistance, durable;
- Abrasion resistance, no corrosion to metal;
- Easy to shape and process, low price.

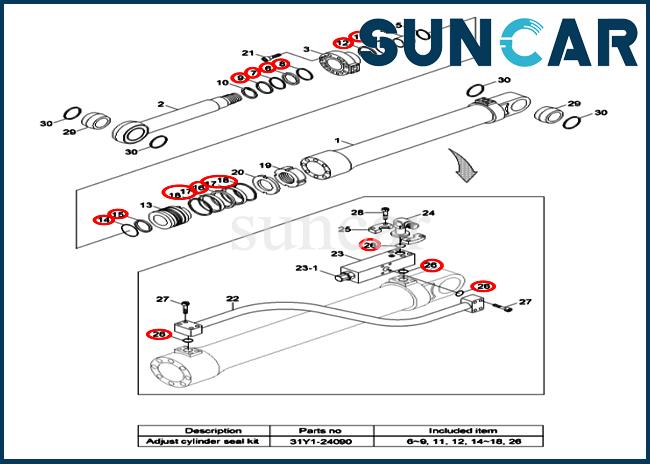

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31N5-52940 | [1] | ADJUST CYLINDER ASSY |
| *-1. | 31Y1-23980 | [1] | ADJUST CYL SUB ASSY |
| 1 | 31Y1-23990 | [1] | TUBE ASSY |
| 2 | 31Y1-24040 | [1] | ROD ASSY |
| 3 | 31Y1-24070 | [1] | GLAND |
| 4 | S732-095040 | [1] | BUSHING-DD2 |
| 5 | Y191-102000 | [1] | RING-SNAP |
| K6. | Y220-095011 | [1] | SEAL-ROD |
| K7. | Y180-095020 | [1] | RING-BACK UP |
| K8. | Y240-095011 | [1] | RING-BUFFER |
| K9. | Y110-095011 | [1] | WIPER-DUST |
| 10 | Y190-109000 | [1] | RING-SNAP |
| K11. | S631-150004 | [1] | O-RING |
| K12. | S641-150003 | [1] | RING-BACK UP |
| 13 | 31Y1-24080 | [1] | PISTON |
| K14. | S632-095004 | [1] | O-RING |
| K15. | S642-095003 | [2] | RING-BACK UP |
| K16. | Y420-160000 | [1] | SEAL-PISTON |
| K17. | Y310-160200 | [2] | RING-WEAR |
| K18. | Y440-160002 | [2] | RING-DUST |
| 19 | 31YC-61143 | [1] | NUT-LOCK |
| 20 | 31YC-66081 | [1] | WASHER-LOCK |
| 21 | S109-220704 | [12] | BOLT-SOCKET |
| 29 | 31YC-11641 | [2] | BUSHING-PIN |
| 30 | S700-095208 | [4] | DUST SEAL-DKIY TYPE |
| 22 | 31Y1-24180 | [1] | PIPE ASSY-V |
| 23 | 31E4-95610 | [1] | VALVE-SAFETY LOCK |
| 23 | 31NA-90590 | [1] | VALVE-SAFETY LOCK |
| 23-1. | DCP-001A | [1] | CAP |
| 23-2. | XKCH-00007 | [1] | SEAL-KIT |
| 24 | 31Y1-21230 | [1] | ELBOW-90 |
| 25 | P174-120102 | [2] | FLANGE-HYD,SPLIT |
| K26. | Y171-019004 | [4] | O-RING |
| 27 | S107-100454 | [8] | BOLT-SOCKET |
| 28 | S107-101004 | [4] | BOLT-SOCKET |
| K. | 31Y1-24090 | [1] | SEAL KIT |
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
