Hyundai 31Y1-25610 Arm Oil Seal Kit Hydraulic Cylinder Fits R80-7 R80-7A RD80-7 Crawler Excavator
Hyundai 31Y1-25610 Arm Oil Seal Kit Hydraulic Cylinder Fits R80-7 R80-7A RD80-7 Crawler Excavator
| Product Name | Arm Cylinder Oil Seal Kit |
| Part Number | 31Y1-25610, 31Y125610 |
| Model | 7-SERIES CRAWLER EXCAVATOR R80-7, R80-7A, RD80-7(INDIA) Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |

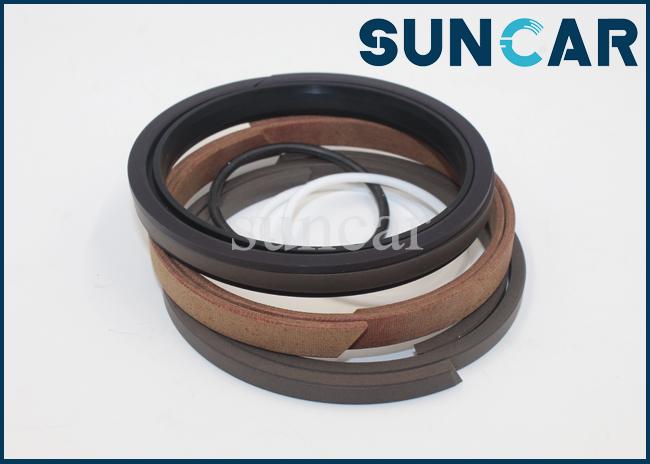

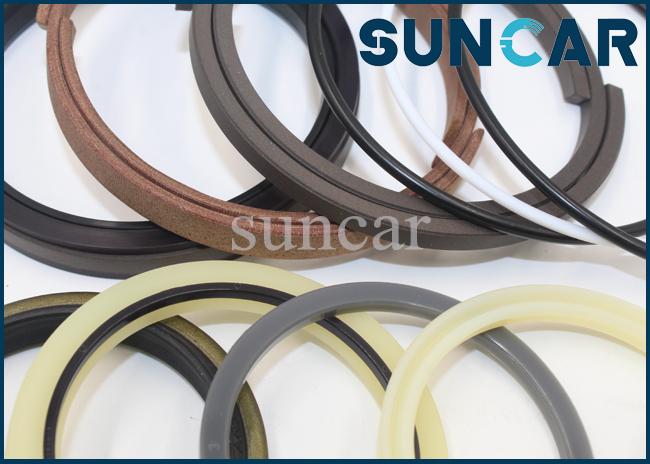

Produict Show:
Terms Of Service:
1. You may email us if you have a question or would like to submit a comment.
2. Generally, email will be responded to within 24 hours; except on every Sunday and holidays. We will reply as soon as we back in office.
3. Though we pride ourselves on fast order processing and shipping, sometimes delays may occur. Please be patient, and keep in touch with us via email.
4. Should you be dissatisfied with our service for any reason, please contact us.
5. We have important business in the overseas market due to our high quality produtc and reasonable prices.
6. Also, we can supply all kinds of excavator spare parts according to customers’ requirements! All the picture is just for your reference.
7. We always promise to offer excellent products as well as satisfactory service to our clients all over the world.
8. If you have any problems about details please contact us, we can supply different oil seal and other spare parts with different models as you like.

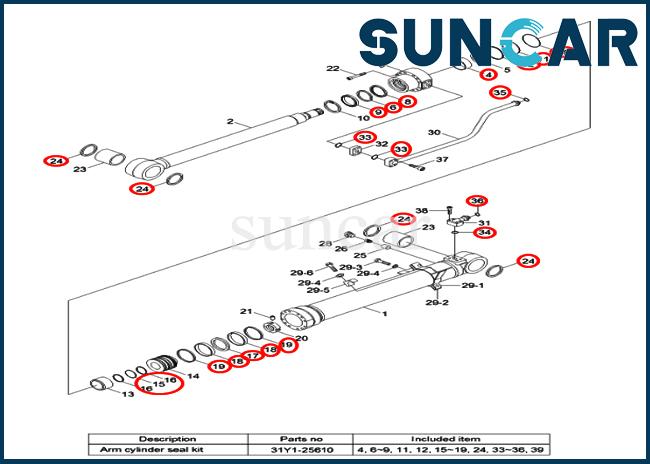

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31N1-51121 | [1] | ARM CYLINDER ASSY |
| 1 | 31Y1-25460 | [1] | TUBE ASSY |
| 2 | 31Y1-25510 | [1] | ROD ASSEMBLY |
| 3 | 31Y1-25540 | [1] | GLAND |
| 4 | S732-060030 | [1] | BUSHING-DD2 |
| 5 | Y191-065000 | [1] | RING-SNAP |
| K6. | Y200-060011 | [1] | SEAL-ROD |
| K8. | Y240-060013 | [1] | RING-BUFFER |
| K9. | Y110-060011 | [1] | WIPER-DUST |
| 10 | Y190-074000 | [1] | RING-SNAP |
| K11. | XCAV-00091 | [1] | O-RING |
| K12. | S642-090003 | [1] | RING-BACK UP |
| 13 | 31YC-29290 | [1] | CUSHION RING |
| 14 | 31Y1-25550 | [1] | PISTON |
| K15. | S632-045004 | [1] | O-RING |
| K16. | S642-045003 | [2] | PING-BACK UP |
| K17. | Y420-095000 | [1] | SEAL-PISTON |
| K18. | 31Y1-28190 | [2] | RING-WEAR |
| K19. | Y440-095000 | [2] | RING-DUST |
| 20 | 31Y1-25560 | [1] | NUT-LOCK |
| 21 | XKCC-00702 | [1] | SET SCREW |
| 22 | S109-140654 | [9] | BOLT-SOCKET |
| 23 | 31Y1-28200 | [2] | BUSHING-PIN |
| 24 | Y010-065080 | [4] | SEAL-DUST |
| 25 | 31Y1-28210 | [1] | VALVE-CHECK |
| 26 | 31Y1-28220 | [1] | SPRING-COIL |
| 28 | 31Y1-28230 | [1] | PLUG |
| 29 | 31Y1-25570 | [1] | BAND ASSY |
| 29-1. | H018-26100 | [1] | BAND SUB ASSY |
| 29-2. | ST07-11122 | [1] | BAND |
| 29-3. | 5011-21007 | [2] | BOLT |
| 29-4. | XKCC-00132 | [3] | SPRING WASHER |
| 29-5. | H015-16500 | [1] | CLAMP |
| 29-6. | 5011-21008 | [1] | BOLT |
| 30 | XKCD-02274 | [1] | PIPE ASSY |
| 31 | 31Y1-25600 | [1] | PIPE ASSY-B |
| 31-1. | 04A633-0 | [1] | PIPE |
| 31-2. | 04A636-0 | [1] | FLANGE |
| 32 | 31Y1-25420 | [1] | FLANGE |
| K33. | Y171-015004 | [2] | O-RING |
| K34. | XCAV-00127 | [1] | O-RING |
| K35. | S621-014001 | [1] | O-RING |
| K36. | S621-018001 | [1] | O-RING |
| 37 | S107-080554 | [4] | BOLT-SOCKET |
| 38 | XCAV-00128 | [4] | BOLT-HEX |
| K39. | S632-095004 | [1] | O-RING |
| K. | 31Y1-25610 | [1] | SEAL KIT |
Warm Reminder:
Parts are sold by part number only. Your engine or machine may need a different part number. If you think this is the right part but the part number advertised is different from what you think you need, or you are not sure of the correct part number, please contact us to confirm compatibility. Failing to verify compatibility may result in a return, significant restocking fees and money wasted on shipping.
