Repair Seal Kit Arm Cylinder 31Y1-30111 31Y130111 Fits Hyundai R300LC-7 R305LC-7 R290LC-9
Repair Seal Kit Arm Cylinder 31Y1-30111 31Y130111 Fits Hyundai R300LC-7 R305LC-7 R290LC-9
| Product Name | Arm Cylinder Repair Seal Kit |
| Part Number | 31Y1-30111, 31Y130111 |
| Model |
7-SERIES CRAWLER EXCAVATOR R290LC-7A, R300LC-7, R305LC-7; 9-SERIES CRAWLER EXCAVATOR R290LC-9, R290LC-9MH, R300LC-9A, R300LC-9S, R300LC-9SH, R520LC-9; F-SERIES CRAWLER EXCAVATOR HX300L Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
| Rod | 110 MM |
| Bore | 150 MM |
| Cylinder No. | 31N8-50139 |

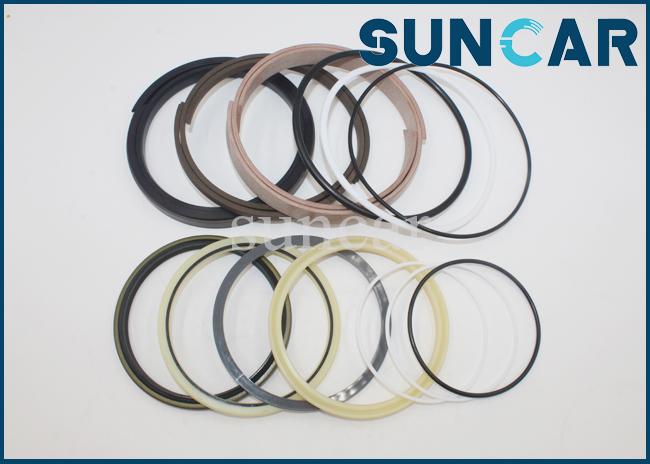

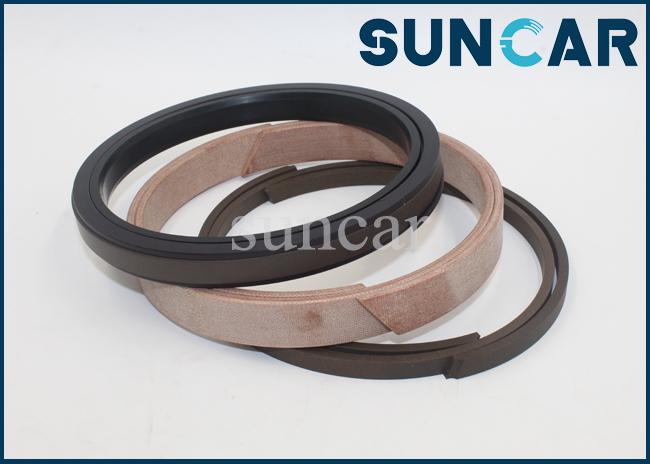

Product Show:
Our Service:
(1) Experienced sealing products supplier.
(2) Professional design team and sales department for your service.
(3) All the questions will be dealt in 24 hours.
(4) Stable quality---coming from good materials.
(5) Lower price---not cheapest but the lowest at the same quality.
(6) Good service---satisfied factory service before and after sale.
(7) Delivery time---7days-15days for mass production.
(8) Your inquiry will be replied in one working day.
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder

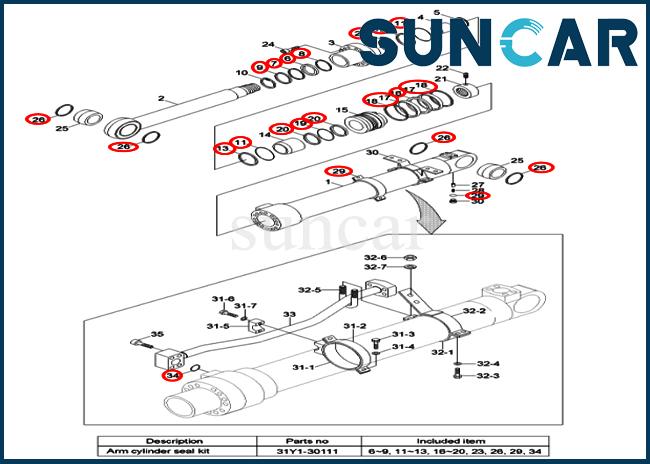

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31N8-50139 | [1] | ARM CYLINDER ASSY |
| *. | 31N8-52139 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-34350 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-34360 | [1] | TUBE ASSY |
| 2 | 31Y1-34380 | [1] | ROD ASSY |
| 3 | 31Y1-34130 | [1] | GLAND |
| 4 | S732-110045 | [1] | BUSHING-DD2 |
| 5 | Y191-117000 | [1] | RING-SNAP |
| K6. | Y220-110013 | [1] | SEAL-ROD |
| K7. | Y180-110020 | [1] | RING-BACK UP |
| K8. | Y240-110012 | [1] | RING-BUFFER |
| K9. | Y110-110011 | [1] | WIPER-DUST |
| 10 | Y190-126000 | [1] | RING-SNAP |
| K11. | 31YC-99H70 | [2] | O-RING |
| K12. | S641-140002 | [1] | RING-BACK UP |
| K13. | 31YC-BM140A | [1] | RING-BACK UP |
| 14 | 31YC-28010 | [1] | RING-CUSHION |
| 15 | 31Y1-34150 | [1] | PISTON |
| 15 | 31Y1-34151 | [1] | PISTON |
| K16. | Y420-150000 | [1] | SEAL-PISTON |
| K17. | Y310-150003 | [2] | RING-WEAR |
| K18. | Y440-150202 | [2] | RING-DUST |
| K19. | S632-085004 | [1] | O-RING |
| K20. | 31YC-CG085 | [2] | RING-BACK UP |
| 21 | 31YC-68060 | [1] | NUT-LOCK |
| 22 | S114-100164 | [1] | SCREW-SET |
| K23. | S632-145004 | [1] | O-RING |
| 24 | S109-180704 | [15] | BOLT-SOCKET |
| 25 | 31YC-11161 | [2] | BUSHING-PIN |
| K26. | Y000-090000 | [4] | SEAL-DUST |
| K27. | 31YC-2A070 | [1] | VALVE-CHECK |
| 28 | 31YC-99071 | [1] | SPRING-COIL |
| K29. | S631-014004 | [1] | O-RING |
| 30 | P220-110103 | [1] | PLUG-HEX |
| 31 | 31Y1-30820 | [1] | BAND ASSY-R |
| 31-1. | 31Y1-30830 | [1] | BAND SUB ASSY |
| 31-2. | 31YC-31420 | [1] | BAND |
| 31-3. | S015-120452 | [2] | BOLT-HEX |
| 31-4. | S411-120002 | [2] | WASHER-SPRING |
| 31-5. | 31YC-37040 | [1] | CLAMP-PIPE |
| 31-6. | S015-120452 | [2] | BOLT-HEX |
| 31-7. | S411-120002 | [2] | WASHER-SPRING |
| 32 | 31Y1-30840 | [1] | BAND ASSY-B |
| 32-1. | 31Y1-30850 | [1] | BAND SUB ASSY |
| 32-2. | 31Y1-30860 | [1] | BAND SUB ASSY |
| 32-3. | S015-120452 | [2] | BOLT-HEX |
| 32-4. | S411-120002 | [2] | WASHER-SPRING |
| 32-5. | S070-053442 | [1] | U-BOLT |
| 32-6. | S205-101002 | [2] | NUT-HEX |
| 32-7. | S411-100002 | [2] | WASHER-SPRING |
| 33 | 31Y1-30911 | [1] | PIPE ASSY-R |
| K34. | Y171-024004 | [1] | O-RING |
| 35 | S107-120554 | [4] | BOLT-SOCKET |
| K. | 31Y1-30111 | [1] | SEAL KIT |
| K. | 31Y1-34340 | [1] | SEAL KIT |
